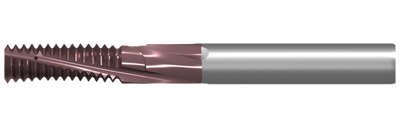

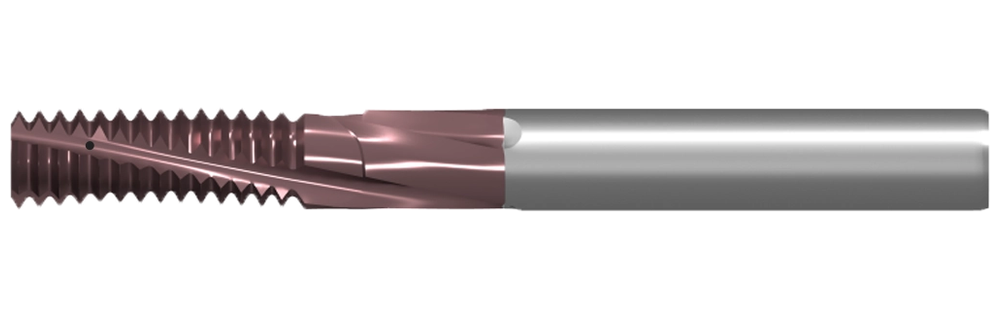

WhizCut Gewindefräsen und Entgraten
Gewinde
Marke: WhizCut
WhizThrill vibrationsfreie Gewindefräser sind so konstruiert, dass sie während des gesamten Gewindeschneidprozesses einen konstanten Werkzeugdruck aufrechterhalten und so eine überlegene Leistung und Präzision gewährleisten. Durch die Integration von Spannuten und die Variation des Helixwinkels zwischen 12° und 18° erreichen diese Gewindefräser einen perfekten vibrationsfreien Betrieb. Die zusätzlichen Spannuten tragen auch dazu bei, die Zykluszeiten zu verkürzen, wodurch Ihre Gewindeschneidvorgänge effizienter werden.
Kurzbeschreibung
- Kurze Prozesszeiten
- Gewährleistet die Herstellung hochwertiger Gewinde
- Bietet eine vibrationsfreie Bearbeitung
- Vielseitige Gewindefräsoptionen
- Auswahl an gerader und radialer Kühlmittelzufuhr verfügbar
Artikel Varianten
Artikel (302)
| Artikelnummer |
M grob
|
M fein
|

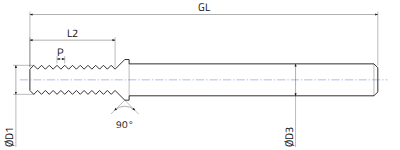

Gewinde
|
Steigung P
(mm)
|
D1
(mm)
|
D3
(mm)
|
L2
(mm)
|
GL
(mm)
|
Z
(Stk.)
|
Bestand
(Stk.)
|
Preis
(netto)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NB04015C3 0.4ISO A9 NB04015C3 0.4ISO A9 | M2x0,4 | — | — | 0,40 | 1,500 | 4,00 | 3,40 | 50,00 | 3 | |||
| NB04015C4 0.4ISO A9 NB04015C4 0.4ISO A9 | M2x0,4 | — | — | 0,40 | 1,500 | 4,00 | 4,60 | 50,00 | 3 | |||
| NB04016C3 56UN A9 NB04016C3 56UN A9 | — | — | UNC No.2-56 | — | 1,600 | 4,00 | 3,86 | 50,00 | 3 | |||
| NB04016C5 56UN A9 NB04016C5 56UN A9 | — | — | UNC No.2-56 | — | 1,600 | 4,00 | 5,22 | 50,00 | 3 | |||
| NB04016C3 0.45ISO A9 NB04016C3 0.45ISO A9 | M2,2x0,45 | — | — | 0,45 | 1,650 | 4,00 | 3,82 | 50,00 | 3 | |||
| NB04016C5 0.45ISO A9 NB04016C5 0.45ISO A9 | M2,2x0,45 | — | — | 0,45 | 1,650 | 4,00 | 5,17 | 50,00 | 3 | |||
| NB04017C3 64UN A9 NB04017C3 64UN A9 | — | — | UNF No.2-64 | — | 1,700 | 4,00 | 3,77 | 50,00 | 3 | |||
| NB04017C5 64UN A9 NB04017C5 64UN A9 | — | — | UNF No.2-64 | — | 1,700 | 4,00 | 4,96 | 50,00 | 3 | |||
| NB04019C4 0.45ISO A9 NB04019C4 0.45ISO A9 | M2,5x0,45 | — | — | 0,45 | 1,900 | 4,00 | 4,27 | 50,00 | 3 | |||
| NB04019C4 48UN A9 NB04019C4 48UN A9 | — | — | UNC No.3-48 | — | 1,900 | 4,00 | 4,50 | 50,00 | 3 | |||
| NB04019C4 56UN A9 NB04019C4 56UN A9 | — | — | UNF No.3-56 | — | 1,900 | 4,00 | 4,31 | 50,00 | 3 | |||
| NB04019C5 0.45ISO A9 NB04019C5 0.45ISO A9 | M2,5x0,45 | — | — | 0,45 | 1,900 | 4,00 | 5,62 | 50,00 | 3 | |||
| NB04019C5 48UN A9 NB04019C5 48UN A9 | — | — | UNC No.3-48 | — | 1,900 | 4,00 | 5,56 | 50,00 | 3 | |||
| NB04019C5 56UN A9 NB04019C5 56UN A9 | — | — | UNF No.3-56 | — | 1,900 | 4,00 | 5,67 | 50,00 | 3 | |||
| NB04021C5 40UN A9 NB04021C5 40UN A9 | — | — | UNC No.4-40 | — | 2,100 | 4,00 | 5,40 | 50,00 | 3 | |||
| NB04021C5 48UN A9 NB04021C5 48UN A9 | — | — | UNF No.4-48 | — | 2,100 | 4,00 | 5,03 | 50,00 | 3 | |||
| NB04021C6 40UN A9 NB04021C6 40UN A9 | — | — | UNC No.4-40 | — | 2,100 | 4,00 | 6,67 | 50,00 | 3 | |||
| NB04021C6 48UN A9 NB04021C6 48UN A9 | — | — | UNF No.4-48 | — | 2,100 | 4,00 | 6,61 | 50,00 | 3 | |||
| NB04023C5 0.5ISO A9 NB04023C5 0.5ISO A9 | M3x0,5 | ≥ M3,5x0,5 | — | 0,50 | 2,300 | 4,00 | 5,25 | 50,00 | 3 | |||
| NB04023C5 40UN A9 NB04023C5 40UN A9 | — | — | UNC No.5-40 | — | 2,300 | 4,00 | 5,40 | 50,00 | 3 | |||
| NB04023C6 0.5ISO A9 NB04023C6 0.5ISO A9 | M3x0,5 | ≥ M3,5x0,5 | — | 0,50 | 2,300 | 4,00 | 6,75 | 50,00 | 3 | |||
| NB04023C7 40UN A9 NB04023C7 40UN A9 | — | — | UNC No.5-40 | — | 2,300 | 4,00 | 7,30 | 50,00 | 3 | |||
| NB04023C8 0.5ISO A9 NB04023C8 0.5ISO A9 | M3x0,5 | ≥ M3,5x0,5 | — | 0,50 | 2,300 | 4,00 | 8,25 | 50,00 | 3 | |||
| NB04023C8 40UN A9 NB04023C8 40UN A9 | — | — | UNC No.5-40 | — | 2,300 | 4,00 | 8,57 | 50,00 | 3 | |||
| NB04023D6 0.5ISO A9 NB04023D6 0.5ISO A9 | M3x0,5 | ≥ M3,5x0,5 | — | 0,50 | 2,300 | 4,00 | 6,75 | 50,00 | 4 | |||
| NB04023E5 0.5ISO A9 NB04023E5 0.5ISO A9 | M3x0,5 | ≥ M3,5x0,5 | — | 0,50 | 2,300 | 4,00 | 5,25 | 50,00 | 5 | |||
| NB06023C5 0.5ISO A9 NB06023C5 0.5ISO A9 | M3x0,5 | ≥ M3,5x0,5 | — | 0,50 | 2,300 | 6,00 | 5,25 | 63,00 | 3 | |||
| NB06023C6 0.5ISO A9 NB06023C6 0.5ISO A9 | M3x0,5 | ≥ M3,5x0,5 | — | 0,50 | 2,300 | 6,00 | 6,75 | 63,00 | 3 | |||
| NB06023C8 0.5ISO A9 NB06023C8 0.5ISO A9 | M3x0,5 | ≥ M3,5x0,5 | — | 0,50 | 2,300 | 6,00 | 8,25 | 63,00 | 3 | |||
| NB04024C5 44UN A9 NB04024C5 44UN A9 | — | — | UNF No.5-44 | — | 2,400 | 4,00 | 5,48 | 50,00 | 3 | |||
| NB04024C7 44UN A9 NB04024C7 44UN A9 | — | — | UNF No.5-44 | — | 2,400 | 4,00 | 7,22 | 50,00 | 3 | |||
| NB04025C10 32UN A9 NB04025C10 32UN A9 | — | — | UNC No.6-32 | — | 2,500 | 4,00 | 9,92 | 50,00 | 3 | |||
| NB04025C6 32UN A9 NB04025C6 32UN A9 | — | — | UNC No.6-32 | — | 2,500 | 4,00 | 6,75 | 50,00 | 3 | |||
| NB04025C8 32UN A9 NB04025C8 32UN A9 | — | — | UNC No.6-32 | — | 2,500 | 4,00 | 8,33 | 50,00 | 3 | |||
| NB04026C6 0.6ISO A9 NB04026C6 0.6ISO A9 | M3,5x0,6 | — | — | 0,60 | 2,600 | 4,00 | 6,30 | 50,00 | 3 | |||
| NB04026C6 40UN A9 NB04026C6 40UN A9 | — | — | UNF No.6-40 | — | 2,600 | 4,00 | 6,03 | 50,00 | 3 | |||
| NB04026C8 0.6ISO A9 NB04026C8 0.6ISO A9 | M3,5x0,6 | — | — | 0,60 | 2,600 | 4,00 | 8,10 | 50,00 | 3 | |||
| NB04026C8 40UN A9 NB04026C8 40UN A9 | — | — | UNF No.6-40 | — | 2,600 | 4,00 | 7,94 | 50,00 | 3 | |||
| NB0403C10 0.7ISO A9 NB0403C10 0.7ISO A9 | M4x0,7 | — | — | 0,70 | 3,000 | 4,00 | 10,85 | 50,00 | 3 | |||
| NB0403C11 32UN A9 NB0403C11 32UN A9 | — | — | UNC No.8-32 | — | 3,000 | 4,00 | 11,51 | 50,00 | 3 | |||
| NB0403C7 0.7ISO A9 NB0403C7 0.7ISO A9 | M4x0,7 | — | — | 0,70 | 3,000 | 4,00 | 7,35 | 50,00 | 3 | |||
| NB0403C7 32UN A9 NB0403C7 32UN A9 | — | — | UNC No.8-32 | — | 3,000 | 4,00 | 7,54 | 50,00 | 3 | |||
| NB0403C8 0.7ISO A9 NB0403C8 0.7ISO A9 | M4x0,7 | — | — | 0,70 | 3,000 | 4,00 | 8,75 | 50,00 | 3 | |||
| NB0403C9 32UN A9 NB0403C9 32UN A9 | — | — | UNC No.8-32 | — | 3,000 | 4,00 | 9,13 | 50,00 | 3 | |||
| NB0403D8 0.7ISO A9 NB0403D8 0.7ISO A9 | M4x0,7 | — | — | 0,70 | 3,000 | 4,00 | 8,75 | 50,00 | 4 | |||
| NB0403E7 0.7ISO A9 NB0403E7 0.7ISO A9 | M4x0,7 | — | — | 0,70 | 3,000 | 4,00 | 7,35 | 50,00 | 5 | |||
| NB0603C10 0.7ISO A9 NB0603C10 0.7ISO A9 | M4x0,7 | — | — | 0,70 | 3,000 | 6,00 | 10,85 | 63,00 | 3 | |||
| NB0603C7 0.7ISO A9 NB0603C7 0.7ISO A9 | M4x0,7 | — | — | 0,70 | 3,000 | 6,00 | 7,35 | 63,00 | 3 | |||
| NB0603C8 0.7ISO A9 NB0603C8 0.7ISO A9 | M4x0,7 | — | — | 0,70 | 3,000 | 6,00 | 8,75 | 63,00 | 3 | |||
| NB04031C7 36UN A9 NB04031C7 36UN A9 | — | — | UNF No.8-36 | — | 3,100 | 4,00 | 7,41 | 50,00 | 3 | |||
| NB04031C9 36UN A9 NB04031C9 36UN A9 | — | — | UNF No.8-36 | — | 3,100 | 4,00 | 9,53 | 50,00 | 3 | |||
| NB04034C10 0.75ISO A9 NB04034C10 0.75ISO A9 | M4,5x0,75 | ≥ M5x0,75 | — | 0,75 | 3,400 | 4,00 | 10,12 | 50,00 | 3 | |||
| NB04034C7 0.75ISO A9 NB04034C7 0.75ISO A9 | M4,5x0,75 | ≥ M5x0,75 | — | 0,75 | 3,400 | 4,00 | 7,87 | 50,00 | 3 | |||
| NB04036C10 32UN A9 NB04036C10 32UN A9 | — | — | UNF No.10-32 | — | 3,600 | 4,00 | 10,72 | 50,00 | 3 | |||
| NB04036C11 24UN A9 NB04036C11 24UN A9 | — | — | UNC No.10-24 | — | 3,600 | 4,00 | 11,11 | 50,00 | 3 | |||
| NB04036C13 24UN A9 NB04036C13 24UN A9 | — | — | UNC No.10-24 | — | 3,600 | 4,00 | 13,23 | 50,00 | 3 | |||
| NB04036C8 32UN A9 NB04036C8 32UN A9 | — | — | UNF No.10-32 | — | 3,600 | 4,00 | 8,33 | 50,00 | 3 | |||
| NB04036C9 24UN A9 NB04036C9 24UN A9 | — | — | UNC No.10-24 | — | 3,600 | 4,00 | 9,00 | 50,00 | 3 | |||
| NB04038C10 0.5ISO A9 NB04038C10 0.5ISO A9 | — | ≥ M5x0,5 | — | 0,50 | 3,800 | 4,00 | 10,75 | 50,00 | 3 | |||
| NB04038C10 0.8ISO A9 NB04038C10 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 4,00 | 10,80 | 50,00 | 3 | |||
| NB04038C13 0.8ISO A9 NB04038C13 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 4,00 | 13,20 | 50,00 | 3 | |||
| NB04038C8 0.8ISO A9 NB04038C8 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 4,00 | 8,40 | 50,00 | 3 | |||
| NB04038D10 0.8ISO A9 NB04038D10 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 4,00 | 10,80 | 50,00 | 4 | |||
| NB04038E8 0.8ISO A9 NB04038E8 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 4,00 | 8,40 | 50,00 | 5 | |||
| NB06038C10 0.5ISO A9 NB06038C10 0.5ISO A9 | — | ≥ M5x0,5 | — | 0,50 | 3,800 | 6,00 | 10,75 | 63,00 | 3 | |||
| NB06038C10 0.8ISO A9 NB06038C10 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 6,00 | 10,80 | 63,00 | 3 | |||
| NB06038C13 0.8ISO A9 NB06038C13 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 6,00 | 13,20 | 63,00 | 3 | |||
| NB06038C8 0.8ISO A9 NB06038C8 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 6,00 | 8,40 | 63,00 | 3 | |||
| NBK04038C10 0.8ISO A9 NBK04038C10 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 4,00 | 10,80 | 50,00 | 3 | |||
| NBK04038C13 0.8ISO A9 NBK04038C13 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 4,00 | 13,20 | 50,00 | 3 | |||
| NBK04038C8 0.8ISO A9 NBK04038C8 0.8ISO A9 | M5x0,8 | — | — | 0,80 | 3,800 | 4,00 | 8,40 | 50,00 | 3 | |||
| NB0404C10 24UN A9 NB0404C10 24UN A9 | — | — | UNC No.12-24 | — | 4,000 | 4,00 | 10,05 | 50,00 | 3 | |||
| NB0404C12 24UN A9 NB0404C12 24UN A9 | — | — | UNC No.12-24 | — | 4,000 | 4,00 | 12,17 | 50,00 | 3 | |||
| NB0404C12 28UN A9 NB0404C12 28UN A9 | — | — | UNF No.12-28 | — | 4,000 | 4,00 | 12,25 | 50,00 | 3 | |||
| NB0404C15 24UN A9 NB0404C15 24UN A9 | — | — | UNC No.12-24 | — | 4,000 | 4,00 | 15,35 | 50,00 | 3 | |||
| NB0404C9 28UN A9 NB0404C9 28UN A9 | — | — | UNF No.12-28 | — | 4,000 | 4,00 | 9,52 | 50,00 | 3 | |||
| NB06045C10 0.75ISO A9 NB06045C10 0.75ISO A9 | — | ≥ M6x0,75 | — | 0,75 | 4,500 | 6,00 | 10,87 | 63,00 | 3 | |||
| NB06045C10 1.0ISO A9 NB06045C10 1.0ISO A9 | M6x1 | ≥ M8x1 | — | 1,00 | 4,500 | 6,00 | 10,50 | 63,00 | 3 | |||
| NB06045C10 20UN A9 NB06045C10 20UN A9 | — | — | UNC 1/4-20 | — | 4,500 | 6,00 | 10,80 | 63,00 | 3 | |||
| NB06045C13 1.0ISO A9 NB06045C13 1.0ISO A9 | M6x1 | ≥ M8x1 | — | 1,00 | 4,500 | 6,00 | 13,50 | 63,00 | 3 | |||
| NB06045C14 20UN A9 NB06045C14 20UN A9 | — | — | UNC 1/4-20 | — | 4,500 | 6,00 | 14,60 | 63,00 | 3 | |||
| NB06045C16 0.75ISO A9 NB06045C16 0.75ISO A9 | — | ≥ M6x0,75 | — | 0,75 | 4,500 | 6,00 | 16,87 | 63,00 | 3 | |||
| NB06045C16 1.0ISO A9 NB06045C16 1.0ISO A9 | M6x1 | ≥ M8x1 | — | 1,00 | 4,500 | 6,00 | 16,50 | 63,00 | 3 | |||
| NB06045C17 20UN A9 NB06045C17 20UN A9 | — | — | UNC 1/4-20 | — | 4,500 | 6,00 | 17,15 | 63,00 | 3 | |||
| NB06045C19 1.0ISO A9 NB06045C19 1.0ISO A9 | M6x1 | ≥ M8x1 | — | 1,00 | 4,500 | 6,00 | 19,50 | 63,00 | 3 | |||
| NB06045D13 1.0ISO A9 NB06045D13 1.0ISO A9 | M6x1 | ≥ M8x1 | — | 1,00 | 4,500 | 6,00 | 13,50 | 63,00 | 4 | |||
| NB06045E10 1.0ISO A9 NB06045E10 1.0ISO A9 | M6x1 | ≥ M8x1 | — | 1,00 | 4,500 | 6,00 | 10,50 | 63,00 | 5 | |||
| NBK06045C10 1.0ISO A9 NBK06045C10 1.0ISO A9 | M6x1 | ≥ M8x1 | — | 1,00 | 4,500 | 6,00 | 10,50 | 63,00 | 3 | |||
| NBK06045C13 1.0ISO A9 NBK06045C13 1.0ISO A9 | M6x1 | ≥ M8x1 | — | 1,00 | 4,500 | 6,00 | 13,50 | 63,00 | 3 | |||
| NBK06045C16 1.0ISO A9 NBK06045C16 1.0ISO A9 | M6x1 | ≥ M8x1 | — | 1,00 | 4,500 | 6,00 | 16,50 | 63,00 | 3 | |||
| NB06048E10 0.75ISO A9 NB06048E10 0.75ISO A9 | — | ≥ M6x0,75 | — | 0,75 | 4,800 | 6,00 | 10,87 | 63,00 | 5 | |||
| NB0605C10 28UN A9 NB0605C10 28UN A9 | — | — | UNF 1/4-28 | — | 5,000 | 6,00 | 10,43 | 63,00 | 3 | |||
| NB0605C14 28UN A9 NB0605C14 28UN A9 | — | — | UNF 1/4-28 | — | 5,000 | 6,00 | 14,06 | 63,00 | 3 | |||
| NB06058C13 18UN A9 NB06058C13 18UN A9 | — | — | UNC 5/16-18 | — | 5,800 | 6,00 | 13,41 | 63,00 | 3 | |||
| NB06058C17 18UN A9 NB06058C17 18UN A9 | — | — | UNC 5/16-18 | — | 5,800 | 6,00 | 17,64 | 63,00 | 3 | |||
| NB06058C21 18UN A9 NB06058C21 18UN A9 | — | — | UNC 5/16-18 | — | 5,800 | 6,00 | 21,87 | 63,00 | 3 | |||
| NB0606C10 1.0ISO A9 NB0606C10 1.0ISO A9 | — | ≥ M8x1 | — | 1,00 | 6,000 | 6,00 | 10,50 | 63,00 | 3 | |||
| NB0606C13 1.0ISO A9 NB0606C13 1.0ISO A9 | — | ≥ M8x1 | — | 1,00 | 6,000 | 6,00 | 13,50 | 63,00 | 3 | |||
| NB0606C13 24UN A9 NB0606C13 24UN A9 | — | — | UNF 5/16-24 | — | 6,000 | 6,00 | 13,23 | 63,00 | 3 | |||
| NB0606C14 1.25ISO A9 NB0606C14 1.25ISO A9 | M8x1,25 | ≥ M10x1,25 | — | 1,25 | 6,000 | 6,00 | 14,37 | 63,00 | 3 | |||
| NB0606C16 16UN A9 NB0606C16 16UN A9 | — | — | UNC 3/8-16 | — | 6,000 | 6,00 | 16,67 | 63,00 | 3 | |||
| NB0606C17 24UN A9 NB0606C17 24UN A9 | — | — | UNF 5/16-24 | — | 6,000 | 6,00 | 17,46 | 63,00 | 3 | |||
| NB0606C18 1.25ISO A9 NB0606C18 1.25ISO A9 | M8x1,25 | ≥ M10x1,25 | — | 1,25 | 6,000 | 6,00 | 18,12 | 63,00 | 3 | |||
| NB0606C21 1.25ISO A9 NB0606C21 1.25ISO A9 | M8x1,25 | ≥ M10x1,25 | — | 1,25 | 6,000 | 6,00 | 21,87 | 63,00 | 3 | |||
| NB0606C21 16UN A9 NB0606C21 16UN A9 | — | — | UNC 3/8-16 | — | 6,000 | 6,00 | 21,43 | 63,00 | 3 | |||
| NB0606C25 1.25ISO A9 NB0606C25 1.25ISO A9 | M8x1,25 | ≥ M10x1,25 | — | 1,25 | 6,000 | 6,00 | 25,62 | 76,00 | 3 | |||
| NB0606D13 32UN A9 NB0606D13 32UN A9 | — | — | UN-32 | — | 6,000 | 6,00 | 13,10 | 63,00 | 4 | |||
| NB0606D18 1.25ISO A9 NB0606D18 1.25ISO A9 | M8x1,25 | ≥ M10x1,25 | — | 1,25 | 6,000 | 6,00 | 18,12 | 63,00 | 4 | |||
| NB0606E14 1.0ISO A9 NB0606E14 1.0ISO A9 | — | ≥ M8x1 | — | 1,00 | 6,000 | 6,00 | 14,50 | 63,00 | 5 | |||
| NB0606E14 1.25ISO A9 NB0606E14 1.25ISO A9 | M8x1,25 | ≥ M10x1,25 | — | 1,25 | 6,000 | 6,00 | 14,37 | 63,00 | 5 | |||
| NBK0606C14 1.25ISO A9 NBK0606C14 1.25ISO A9 | M8x1,25 | ≥ M10x1,25 | — | 1,25 | 6,000 | 6,00 | 14,37 | 63,00 | 3 | |||
| NBK0606C18 1.25ISO A9 NBK0606C18 1.25ISO A9 | M8x1,25 | ≥ M10x1,25 | — | 1,25 | 6,000 | 6,00 | 18,12 | 63,00 | 3 | |||
| NBK0606C21 1.25ISO A9 NBK0606C21 1.25ISO A9 | M8x1,25 | ≥ M10x1,25 | — | 1,25 | 6,000 | 6,00 | 21,87 | 63,00 | 3 | |||
| NBT0606C18 1.25ISO A9 NBT0606C18 1.25ISO A9 | M8x1,25 | ≥ M10x1,25 | — | 1,25 | 6,000 | 6,00 | 18,12 | 76,00 | 3 | |||

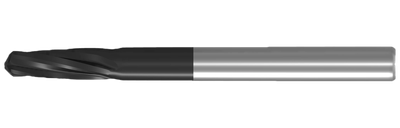

| NPT0605D16 F9 NPT0605D16 F9 | — | — | NPT/NPTF | — | 6,000 | 5,00 | 16,00 | 64,00 | 4 | |||
| XB0606C10 27NPT A9 XB0606C10 27NPT A9 | — | — | NPT 1/16 - 1/8 | — | 6,000 | 6,00 | 10,82 | 63,00 | 3 | |||
| XB0606C10 27NPTF A9 XB0606C10 27NPTF A9 | — | — | NPTF 1/16 - 1/8 | — | 6,000 | 6,00 | 10,82 | 63,00 | 3 | |||
| XB0606C10 28W A9 XB0606C10 28W A9 | — | — | W G 1/16 - 1/8 | — | 6,000 | 6,00 | 10,43 | 63,00 | 3 | |||
| XB0606C12 27NPSF A9 XB0606C12 27NPSF A9 | — | — | NPSF 1/16 - 1/8 | — | 6,000 | 6,00 | 12,70 | 63,00 | 3 | |||
| XB0606F10 27NPT A9 XB0606F10 27NPT A9 | — | — | NPT 1/16 - 1/8 | — | 6,000 | 6,00 | 10,82 | 63,00 | 6 | |||
| XB0606F10 28W A9 XB0606F10 28W A9 | — | — | W G 1/8 | — | 6,000 | 6,00 | 10,43 | 63,00 | 6 | |||
| XBT0606C10 28W A9 XBT0606C10 28W A9 | — | — | W G 1/8 | — | 6,000 | 6,00 | 10,43 | 76,00 | 3 | |||
| NB0807C26 16UN A9 NB0807C26 16UN A9 | — | — | UNC 3/8-16 | — | 7,000 | 8,00 | 26,19 | 76,00 | 3 | |||
| NB08075C17 1.5ISO A9 NB08075C17 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 17,25 | 63,00 | 3 | |||
| NB08075C21 1.5ISO A9 NB08075C21 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 21,75 | 76,00 | 3 | |||
| NB08075C27 1.5ISO A9 NB08075C27 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 27,75 | 76,00 | 3 | |||
| NB08075C32 1.5ISO A9 NB08075C32 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 32,25 | 76,00 | 3 | |||
| NB08075D21 1.5ISO A9 NB08075D21 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 21,75 | 76,00 | 4 | |||
| NB08075E17 1.5ISO A9 NB08075E17 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 17,25 | 63,00 | 5 | |||
| NBK08075C17 1.5ISO A9 NBK08075C17 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 17,25 | 76,00 | 3 | |||
| NBK08075C21 1.5ISO A9 NBK08075C21 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 21,75 | 76,00 | 3 | |||
| NBK08075C27 1.5ISO A9 NBK08075C27 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 27,75 | 76,00 | 3 | |||
| NBK08075C32 1.5ISO A9 NBK08075C32 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 32,25 | 76,00 | 3 | |||
| NBT08075C21 1.5ISO A9 NBT08075C21 1.5ISO A9 | M10x1,5 | ≥ M12x1,5 | — | 1,50 | 7,500 | 8,00 | 21,75 | 76,00 | 3 | |||
| NB08076C15 24UN A9 NB08076C15 24UN A9 | — | — | UNF 3/8-24 | — | 7,600 | 8,00 | 15,35 | 63,00 | 3 | |||
| NB08076C20 24UN A9 NB08076C20 24UN A9 | — | — | UNF 3/8-24 | — | 7,600 | 8,00 | 20,64 | 76,00 | 3 | |||
| NB0808C18 20UN A9 NB0808C18 20UN A9 | — | — | UNF 7/16-20 | — | 8,000 | 8,00 | 18,41 | 63,00 | 3 | |||
| NB0808C19 14UN A9 NB0808C19 14UN A9 | — | — | UNC 7/16-14 | — | 8,000 | 8,00 | 19,05 | 63,00 | 3 | |||
| NB0808C20 1.75ISO A9 NB0808C20 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 8,000 | 8,00 | 20,12 | 76,00 | 3 | |||
| NB0808C22 13UN A9 NB0808C22 13UN A9 | — | — | UNC 1/2-13 | — | 8,000 | 8,00 | 22,47 | 76,00 | 3 | |||
| NB0808C23 20UN A9 NB0808C23 20UN A9 | — | — | UNF 7/16-20 | — | 8,000 | 8,00 | 23,50 | 76,00 | 3 | |||
| NB0808C24 14UN A9 NB0808C24 14UN A9 | — | — | UNC 7/16-14 | — | 8,000 | 8,00 | 24,49 | 76,00 | 3 | |||
| NB0808C27 1.75ISO A9 NB0808C27 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 8,000 | 8,00 | 27,12 | 76,00 | 3 | |||
| NB0808C28 13UN A9 NB0808C28 13UN A9 | — | — | UNC 1/2-13 | — | 8,000 | 8,00 | 28,33 | 76,00 | 3 | |||
| NB0808C30 14UN A9 NB0808C30 14UN A9 | — | — | UNC 7/16-14 | — | 8,000 | 8,00 | 29,94 | 76,00 | 3 | |||
| NB0808D10 1.0ISO A9 NB0808D10 1.0ISO A9 | — | ≥ M10x1 | — | 1,00 | 8,000 | 8,00 | 10,50 | 63,00 | 4 | |||
| NB0808D13 1.0ISO A9 NB0808D13 1.0ISO A9 | — | ≥ M10x1 | — | 1,00 | 8,000 | 8,00 | 13,50 | 63,00 | 4 | |||
| NB0808D17 1.0ISO A9 NB0808D17 1.0ISO A9 | — | ≥ M10x1 | — | 1,00 | 8,000 | 8,00 | 17,50 | 63,00 | 4 | |||
| NB0808D17 28UN A9 NB0808D17 28UN A9 | — | — | UN-28 | — | 8,000 | 8,00 | 17,69 | 63,00 | 4 | |||
| NB0808F16 1.0ISO A9 NB0808F16 1.0ISO A9 | — | ≥ M10x1 | — | 1,00 | 8,000 | 8,00 | 16,50 | 63,00 | 6 | |||
| NBK0808C20 1.75ISO A9 NBK0808C20 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 8,000 | 8,00 | 20,12 | 76,00 | 3 | |||
| NBK0808C27 1.75ISO A9 NBK0808C27 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 8,000 | 8,00 | 27,12 | 76,00 | 3 | |||
| NBK0808D17 1.0ISO A9 NBK0808D17 1.0ISO A9 | — | ≥ M10x1 | — | 1,00 | 8,000 | 8,00 | 17,50 | 76,00 | 4 | |||
| NBT0808C27 1.75ISO A9 NBT0808C27 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 8,000 | 8,00 | 27,12 | 76,00 | 3 | |||
| NBT0808D17 1.0ISO A9 NBT0808D17 1.0ISO A9 | — | ≥ M10x1 | — | 1,00 | 8,000 | 8,00 | 17,50 | 76,00 | 4 | |||
| XB0808C15 19W A9 XB0808C15 19W A9 | — | — | W G 1/4 - 3/8 | — | 8,000 | 8,00 | 15,37 | 63,00 | 3 | |||
| XB0808C16 18NPSF A9 XB0808C16 18NPSF A9 | — | — | NPSF 1/4 - 3/8 | — | 8,000 | 8,00 | 16,23 | 63,00 | 3 | |||
| XB0808C16 18NPT A9 XB0808C16 18NPT A9 | — | — | NPT 1/4 - 3/8 | — | 8,000 | 8,00 | 16,23 | 63,00 | 3 | |||
| XB0808C16 18NPTF A9 XB0808C16 18NPTF A9 | — | — | NPTF 1/4 - 3/8 | — | 8,000 | 8,00 | 16,23 | 63,00 | 3 | |||
| XB0808C21 20PG A9 XB0808C21 20PG A9 | — | — | PG Pg 7 | — | 8,000 | 8,00 | 20,96 | 63,00 | 3 | |||
| XB0808D14 28BSPT A9 XB0808D14 28BSPT A9 | — | — | BSPT RC 1/8 | — | 8,000 | 8,00 | 14,06 | 63,00 | 4 | |||
| XB0808D14 28W A9 XB0808D14 28W A9 | — | — | W G 1/8 | — | 8,000 | 8,00 | 14,06 | 63,00 | 4 | |||
| XB0808F15 19W A9 XB0808F15 19W A9 | — | — | W G 1/4 - 3/8 | — | 8,000 | 8,00 | 15,37 | 63,00 | 6 | |||
| XB0808F16 18NPT A9 XB0808F16 18NPT A9 | — | — | NPT 1/4 - 3/8 | — | 8,000 | 8,00 | 16,23 | 63,00 | 6 | |||
| XB0808G14 28W A9 XB0808G14 28W A9 | — | — | W G 1/8 | — | 8,000 | 8,00 | 14,06 | 63,00 | 7 | |||
| NB1009C20 1.75ISO A9 NB1009C20 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 20,12 | 76,00 | 3 | |||
| NB1009C27 1.75ISO A9 NB1009C27 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 27,12 | 76,00 | 3 | |||
| NB1009C32 1.75ISO A9 NB1009C32 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 32,37 | 100,00 | 3 | |||
| NB1009C37 1.75ISO A9 NB1009C37 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 37,62 | 100,00 | 3 | |||
| NB1009D27 1.75ISO A9 NB1009D27 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 27,12 | 76,00 | 4 | |||
| NB1009E20 1.75ISO A9 NB1009E20 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 20,12 | 76,00 | 5 | |||
| NBK1009C20 1.75ISO A9 NBK1009C20 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 20,12 | 100,00 | 3 | |||
| NBK1009C27 1.75ISO A9 NBK1009C27 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 27,12 | 100,00 | 3 | |||
| NBK1009C32 1.75ISO A9 NBK1009C32 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 32,37 | 100,00 | 3 | |||
| NBK1009C37 1.75ISO A9 NBK1009C37 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 37,62 | 100,00 | 3 | |||
| NBT1009C27 1.75ISO A9 NBT1009C27 1.75ISO A9 | M12x1,75 | — | — | 1,75 | 9,000 | 10,00 | 27,12 | 100,00 | 3 | |||
| NB10093C34 13UN A9 NB10093C34 13UN A9 | — | — | UNC 1/2-13 | — | 9,300 | 10,00 | 34,19 | 100,00 | 3 | |||
| NB1010C23 2.0ISO A9 NB1010C23 2.0ISO A9 | M14x2 | ≥ M18x2 | — | 2,00 | 10,000 | 10,00 | 23,00 | 76,00 | 3 | |||
| NB1010C24 12UN A9 NB1010C24 12UN A9 | — | — | UNC 9/16-12 | — | 10,000 | 10,00 | 24,34 | 76,00 | 3 | |||
| NB1010C26 11UN A9 NB1010C26 11UN A9 | — | — | UNC 5/8-11 | — | 10,000 | 10,00 | 26,55 | 76,00 | 3 | |||
| NB1010C30 12UN A9 NB1010C30 12UN A9 | — | — | UNC 9/16-12 | — | 10,000 | 10,00 | 30,69 | 100,00 | 3 | |||
| NB1010C31 2.0ISO A9 NB1010C31 2.0ISO A9 | M14x2 | ≥ M18x2 | — | 2,00 | 10,000 | 10,00 | 31,00 | 100,00 | 3 | |||
| NB1010C35 11UN A9 NB1010C35 11UN A9 | — | — | UNC 5/8-11 | — | 10,000 | 10,00 | 35,79 | 100,00 | 3 | |||
| NB1010C37 2.0ISO A9 NB1010C37 2.0ISO A9 | M14x2 | ≥ M18x2 | — | 2,00 | 10,000 | 10,00 | 37,00 | 100,00 | 3 | |||
| NB1010D17 1.5ISO A9 NB1010D17 1.5ISO A9 | — | ≥ M14x1,5 | — | 1,50 | 10,000 | 10,00 | 17,25 | 76,00 | 4 | |||
| NB1010D21 20UN A9 NB1010D21 20UN A9 | — | — | UNF 1/2-20 | — | 10,000 | 10,00 | 20,96 | 76,00 | 4 | |||
| NB1010D23 1.5ISO A9 NB1010D23 1.5ISO A9 | — | ≥ M14x1,5 | — | 1,50 | 10,000 | 10,00 | 23,25 | 76,00 | 4 | |||
| NB1010D23 18UN A9 NB1010D23 18UN A9 | — | — | UNF 9/16-18 | — | 10,000 | 10,00 | 23,28 | 76,00 | 4 | |||
| NB1010D27 20UN A9 NB1010D27 20UN A9 | — | — | UNF 1/2-20 | — | 10,000 | 10,00 | 27,31 | 76,00 | 4 | |||
| NB1010D30 18UN A9 NB1010D30 18UN A9 | — | — | UNF 9/16-18 | — | 10,000 | 10,00 | 30,34 | 100,00 | 4 | |||
| NB1010E14 1.0ISO A9 NB1010E14 1.0ISO A9 | — | ≥ M12x1 | — | 1,00 | 10,000 | 10,00 | 14,50 | 76,00 | 5 | |||
| NB1010E19 1.0ISO A9 NB1010E19 1.0ISO A9 | — | ≥ M12x1 | — | 1,00 | 10,000 | 10,00 | 19,50 | 76,00 | 5 | |||
| NB1010F20 1.5ISO A9 NB1010F20 1.5ISO A9 | — | ≥ M14x1,5 | — | 1,50 | 10,000 | 10,00 | 20,25 | 76,00 | 6 | |||
| NB1010G17 1.0ISO A9 NB1010G17 1.0ISO A9 | — | ≥ M12x1 | — | 1,00 | 10,000 | 10,00 | 17,50 | 76,00 | 7 | |||
| NBK1010C23 2.0ISO A9 NBK1010C23 2.0ISO A9 | M14x2 | ≥ M18x2 | — | 2,00 | 10,000 | 10,00 | 23,00 | 100,00 | 3 | |||
| NBK1010C31 2.0ISO A9 NBK1010C31 2.0ISO A9 | M14x2 | ≥ M18x2 | — | 2,00 | 10,000 | 10,00 | 31,00 | 100,00 | 3 | |||
| NBT1010C31 2.0ISO A9 NBT1010C31 2.0ISO A9 | M14x2 | ≥ M18x2 | — | 2,00 | 10,000 | 10,00 | 31,00 | 100,00 | 3 | |||
| NPT10085D24 F9 NPT10085D24 F9 | — | — | NPT/NPTF | — | 10,000 | 8,50 | 24,00 | 76,00 | 4 | |||
| XB1010C27 18PG A9 XB1010C27 18PG A9 | — | — | PG Pg 9 - 16 | — | 10,000 | 10,00 | 27,52 | 76,00 | 3 | |||
| XB1010D16 18NPT A9 XB1010D16 18NPT A9 | — | — | NPT 1/4 - 3/8 | — | 10,000 | 10,00 | 16,23 | 76,00 | 4 | |||
| XB1010D22 19BSPT A9 XB1010D22 19BSPT A9 | — | — | BSPT RC 1/4 - 3/8 | — | 10,000 | 10,00 | 22,06 | 76,00 | 4 | |||
| XB1010D22 19W A9 XB1010D22 19W A9 | — | — | W G 1/4 - 3/8 | — | 10,000 | 10,00 | 22,06 | 76,00 | 4 | |||
| XB1010F22 19W A9 XB1010F22 19W A9 | — | — | W G 1/4 - 3/8 | — | 10,000 | 10,00 | 22,06 | 76,00 | 6 | |||
| XBT1010D22 19W A9 XBT1010D22 19W A9 | — | — | W G 1/4 - 3/8 | — | 10,000 | 10,00 | 22,06 | 100,00 | 4 | |||
| NB12117C42 11UN A9 NB12117C42 11UN A9 | — | — | UNC 5/8-11 | — | 11,700 | 12,00 | 42,72 | 100,00 | 3 | |||
| NB1212C31 10UN A9 NB1212C31 10UN A9 | — | — | UNC 3/4-10 | — | 12,000 | 12,00 | 31,75 | 100,00 | 3 | |||
| NB1212C31 2.5ISO A9 NB1212C31 2.5ISO A9 | M18x2,5 | — | — | 2,50 | 12,000 | 12,00 | 31,25 | 100,00 | 3 | |||
| NB1212C38 2.5ISO A9 NB1212C38 2.5ISO A9 | M18x2,5 | — | — | 2,50 | 12,000 | 12,00 | 38,75 | 100,00 | 3 | |||
| NB1212C41 10UN A9 NB1212C41 10UN A9 | — | — | UNC 3/4-10 | — | 12,000 | 12,00 | 41,91 | 100,00 | 3 | |||
| NB1212C48 2.5ISO A9 NB1212C48 2.5ISO A9 | M18x2,5 | — | — | 2,50 | 12,000 | 12,00 | 48,75 | 100,00 | 3 | |||
| NB1212C51 2.0ISO A9 NB1212C51 2.0ISO A9 | M16x2 | ≥ M18x2 | — | 2,00 | 12,000 | 12,00 | 51,00 | 100,00 | 3 | |||
| NB1212D26 18UN A9 NB1212D26 18UN A9 | — | — | UNF 5/8-18 | — | 12,000 | 12,00 | 26,11 | 83,00 | 4 | |||
| NB1212D27 2.0ISO A9 NB1212D27 2.0ISO A9 | M16x2 | ≥ M18x2 | — | 2,00 | 12,000 | 12,00 | 27,00 | 83,00 | 4 | |||
| NB1212D31 16UN A9 NB1212D31 16UN A9 | — | — | UNF 3/4-16 | — | 12,000 | 12,00 | 30,96 | 100,00 | 4 | |||
| NB1212D33 18UN A9 NB1212D33 18UN A9 | — | — | UNF 5/8-18 | — | 12,000 | 12,00 | 33,16 | 100,00 | 4 | |||
| NB1212D35 2.0ISO A9 NB1212D35 2.0ISO A9 | M16x2 | ≥ M18x2 | — | 2,00 | 12,000 | 12,00 | 35,00 | 100,00 | 4 | |||
| NB1212D40 16UN A9 NB1212D40 16UN A9 | — | — | UNF 3/4-16 | — | 12,000 | 12,00 | 40,48 | 100,00 | 4 | |||
| NB1212D43 2.0ISO A9 NB1212D43 2.0ISO A9 | M16x2 | ≥ M18x2 | — | 2,00 | 12,000 | 12,00 | 43,00 | 100,00 | 4 | |||
| NB1212E15 1.5ISO A9 NB1212E15 1.5ISO A9 | — | ≥ M16x1,5 | — | 1,50 | 12,000 | 12,00 | 15,75 | 83,00 | 5 | |||
| NB1212E21 1.5ISO A9 NB1212E21 1.5ISO A9 | — | ≥ M16x1,5 | — | 1,50 | 12,000 | 12,00 | 21,75 | 83,00 | 5 | |||
| NB1212E27 2.0ISO A9 NB1212E27 2.0ISO A9 | M16x2 | ≥ M18x2 | — | 2,00 | 12,000 | 12,00 | 27,00 | 83,00 | 5 | |||
| NB1212E28 20UN A9 NB1212E28 20UN A9 | — | — | UN-20 | — | 12,000 | 12,00 | 28,57 | 83,00 | 5 | |||
| NB1212E29 1.5ISO A9 NB1212E29 1.5ISO A9 | — | ≥ M16x1,5 | — | 1,50 | 12,000 | 12,00 | 29,25 | 83,00 | 5 | |||
| NB1212F15 1.0ISO A9 NB1212F15 1.0ISO A9 | — | ≥ M14x1 | — | 1,00 | 12,000 | 12,00 | 15,50 | 83,00 | 6 | |||
| NB1212F21 1.0ISO A9 NB1212F21 1.0ISO A9 | — | ≥ M14x1 | — | 1,00 | 12,000 | 12,00 | 21,50 | 83,00 | 6 | |||
| NB1212G21 1.5ISO A9 NB1212G21 1.5ISO A9 | — | ≥ M16x1,5 | — | 1,50 | 12,000 | 12,00 | 21,75 | 83,00 | 7 | |||
| NB1212H18 1.0ISO A9 NB1212H18 1.0ISO A9 | — | ≥ M14x1 | — | 1,00 | 12,000 | 12,00 | 18,50 | 83,00 | 8 | |||
| NBK1212C51 2.0ISO A9 NBK1212C51 2.0ISO A9 | M16x2 | ≥ M18x2 | — | 2,00 | 12,000 | 12,00 | 51,00 | 100,00 | 3 | |||
| NBK1212D27 2.0ISO A9 NBK1212D27 2.0ISO A9 | M16x2 | ≥ M18x2 | — | 2,00 | 12,000 | 12,00 | 27,00 | 100,00 | 4 | |||
| NBK1212D35 2.0ISO A9 NBK1212D35 2.0ISO A9 | M16x2 | ≥ M18x2 | — | 2,00 | 12,000 | 12,00 | 35,00 | 100,00 | 4 | |||
| NBK1212D43 2.0ISO A9 NBK1212D43 2.0ISO A9 | M16x2 | ≥ M18x2 | — | 2,00 | 12,000 | 12,00 | 43,00 | 100,00 | 4 | |||
| NBK1212E29 1.5ISO A9 NBK1212E29 1.5ISO A9 | — | ≥ M16x1,5 | — | 1,50 | 12,000 | 12,00 | 29,25 | 100,00 | 5 | |||
| NBT1212D35 2.0ISO A9 NBT1212D35 2.0ISO A9 | M16x2 | ≥ M18x2 | — | 2,00 | 12,000 | 12,00 | 35,00 | 100,00 | 4 | |||
| NBT1212E29 1.5ISO A9 NBT1212E29 1.5ISO A9 | — | ≥ M16x1,5 | — | 1,50 | 12,000 | 12,00 | 29,25 | 100,00 | 5 | |||
| XB1212C26 11W A9 XB1212C26 11W A9 | — | — | W G 1 - 1 1/2 | — | 12,000 | 12,00 | 26,55 | 83,00 | 3 | |||
| XB1212D20 14W A9 XB1212D20 14W A9 | — | — | W G 1/2 - 7/8 | — | 12,000 | 12,00 | 20,86 | 83,00 | 4 | |||
| XB1212D22 14NPSF A9 XB1212D22 14NPSF A9 | — | — | NPSF 1/2 - 3/4 | — | 12,000 | 12,00 | 22,68 | 83,00 | 4 | |||
| XB1212D22 14NPT A9 XB1212D22 14NPT A9 | — | — | NPT 1/2 - 3/4 | — | 12,000 | 12,00 | 22,68 | 83,00 | 4 | |||
| XB1212D22 14NPTF A9 XB1212D22 14NPTF A9 | — | — | NPTF 1/2 - 3/4 | — | 12,000 | 12,00 | 22,68 | 83,00 | 4 | |||
| XB1212D28 14W A9 XB1212D28 14W A9 | — | — | W G 1/2 - 7/8 | — | 12,000 | 12,00 | 28,12 | 83,00 | 4 | |||
| XB1212D31 16PG A9 XB1212D31 16PG A9 | — | — | PG Pg 21- 48 | — | 12,000 | 12,00 | 30,96 | 83,00 | 4 | |||
| XB1212E26 11W A9 XB1212E26 11W A9 | — | — | W G 1 - 1 1/2 | — | 12,000 | 12,00 | 26,55 | 83,00 | 5 | |||
| XB1212F22 14NPT A9 XB1212F22 14NPT A9 | — | — | NPT 1/2 - 3/4 | — | 12,000 | 12,00 | 22,68 | 83,00 | 6 | |||
| XB1212G20 14W A9 XB1212G20 14W A9 | — | — | W G 1/2 - 7/8 | — | 12,000 | 12,00 | 20,86 | 83,00 | 7 | |||
| XBT1212D28 14W A9 XBT1212D28 14W A9 | — | — | W G 1/2 - 7/8 | — | 12,000 | 12,00 | 28,12 | 100,00 | 4 | |||
| NB1414D33 2.5ISO A9 NB1414D33 2.5ISO A9 | M20x2,5 | — | — | 2,50 | 14,000 | 14,00 | 33,75 | 89,00 | 4 | |||
| NB1414D43 2.5ISO A9 NB1414D43 2.5ISO A9 | M20x2,5 | — | — | 2,50 | 14,000 | 14,00 | 43,75 | 100,00 | 4 | |||
| NB1414E33 2.5ISO A9 NB1414E33 2.5ISO A9 | M20x2,5 | — | — | 2,50 | 14,000 | 14,00 | 33,75 | 89,00 | 5 | |||
| NBK1414D33 2.5ISO A9 NBK1414D33 2.5ISO A9 | M20x2,5 | — | — | 2,50 | 14,000 | 14,00 | 33,75 | 100,00 | 4 | |||
| NBK1414D43 2.5ISO A9 NBK1414D43 2.5ISO A9 | M20x2,5 | — | — | 2,50 | 14,000 | 14,00 | 43,75 | 100,00 | 4 | |||
| NB1615C63 2.5ISO A9 NB1615C63 2.5ISO A9 | M20x2,5 | — | — | 2,50 | 15,000 | 16,00 | 63,75 | 120,00 | 3 | |||
| NB1615D53 2.5ISO A9 NB1615D53 2.5ISO A9 | M20x2,5 | — | — | 2,50 | 15,000 | 16,00 | 53,75 | 120,00 | 4 | |||
| NBK1615D53 2.5ISO A9 NBK1615D53 2.5ISO A9 | M20x2,5 | — | — | 2,50 | 15,000 | 16,00 | 53,75 | 120,00 | 4 | |||
| NB1616C38 9UN A9 NB1616C38 9UN A9 | — | — | UNC 7/8-9 | — | 16,000 | 16,00 | 38,10 | 100,00 | 3 | |||
| NB1616C40 3.0ISO A9 NB1616C40 3.0ISO A9 | M24x3 | ≥ M30x3 | — | 3,00 | 16,000 | 16,00 | 40,50 | 100,00 | 3 | |||
| NB1616C42 8UN A9 NB1616C42 8UN A9 | — | — | UNC 1-8 | — | 16,000 | 16,00 | 42,86 | 100,00 | 3 | |||
| NB1616C49 9UN A9 NB1616C49 9UN A9 | — | — | UNC 7/8-9 | — | 16,000 | 16,00 | 49,39 | 120,00 | 3 | |||
| NB1616C52 3.0ISO A9 NB1616C52 3.0ISO A9 | M24x3 | ≥ M30x3 | — | 3,00 | 16,000 | 16,00 | 52,50 | 120,00 | 3 | |||
| NB1616C55 8UN A9 NB1616C55 8UN A9 | — | — | UNC 1-8 | — | 16,000 | 16,00 | 55,56 | 120,00 | 3 | |||
| NB1616E29 2.0ISO A9 NB1616E29 2.0ISO A9 | — | ≥ M20x2 | — | 2,00 | 16,000 | 16,00 | 29,00 | 89,00 | 5 | |||
| NB1616E35 14UN A9 NB1616E35 14UN A9 | — | — | UNF 7/8-14 | — | 16,000 | 16,00 | 35,38 | 100,00 | 5 | |||
| NB1616E35 16UN A9 NB1616E35 16UN A9 | — | — | UN-16 | — | 16,000 | 16,00 | 35,72 | 100,00 | 5 | |||
| NB1616E39 2.0ISO A9 NB1616E39 2.0ISO A9 | — | ≥ M20x2 | — | 2,00 | 16,000 | 16,00 | 39,00 | 100,00 | 5 | |||
| NB1616E43 12UN A9 NB1616E43 12UN A9 | — | — | UN-12 | — | 16,000 | 16,00 | 43,39 | 100,00 | 5 | |||
| NB1616E46 14UN A9 NB1616E46 14UN A9 | — | — | UNF 7/8-14 | — | 16,000 | 16,00 | 46,26 | 120,00 | 5 | |||
| NB1616F18 1.5ISO A9 NB1616F18 1.5ISO A9 | — | ≥ M20x1,5 | — | 1,50 | 16,000 | 16,00 | 18,75 | 89,00 | 6 | |||
| NB1616F26 1.5ISO A9 NB1616F26 1.5ISO A9 | — | ≥ M20x1,5 | — | 1,50 | 16,000 | 16,00 | 26,25 | 89,00 | 6 | |||
| NB1616F35 1.5ISO A9 NB1616F35 1.5ISO A9 | — | ≥ M20x1,5 | — | 1,50 | 16,000 | 16,00 | 35,25 | 100,00 | 6 | |||
| NB1616H24 1.5ISO A9 NB1616H24 1.5ISO A9 | — | ≥ M20x1,5 | — | 1,50 | 16,000 | 16,00 | 24,75 | 89,00 | 8 | |||
| NBK1616C40 3.0ISO A9 NBK1616C40 3.0ISO A9 | M24x3 | ≥ M30x3 | — | 3,00 | 16,000 | 16,00 | 40,50 | 120,00 | 3 | |||
| NBK1616C52 3.0ISO A9 NBK1616C52 3.0ISO A9 | M24x3 | ≥ M30x3 | — | 3,00 | 16,000 | 16,00 | 52,50 | 120,00 | 3 | |||
| NBK1616E39 2.0ISO A9 NBK1616E39 2.0ISO A9 | — | ≥ M20x2 | — | 2,00 | 16,000 | 16,00 | 39,00 | 120,00 | 5 | |||
| NBK1616F35 1.5ISO A9 NBK1616F35 1.5ISO A9 | — | ≥ M20x1,5 | — | 1,50 | 16,000 | 16,00 | 35,25 | 120,00 | 6 | |||
| NBT1616E39 2.0ISO A9 NBT1616E39 2.0ISO A9 | — | ≥ M20x2 | — | 2,00 | 16,000 | 16,00 | 39,00 | 100,00 | 5 | |||
| NPT1614D32 F9 NPT1614D32 F9 | — | — | NPT/NPTF | — | 16,000 | 14,00 | 32,00 | 100,00 | 4 | |||
| XB1616D29 11.5NPSF A9 XB1616D29 11.5NPSF A9 | — | — | NPSF 1" | — | 16,000 | 16,00 | 29,82 | 89,00 | 4 | |||
| XB1616D29 11.5NPT A9 XB1616D29 11.5NPT A9 | — | — | NPT 1 - 2" | — | 16,000 | 16,00 | 29,82 | 89,00 | 4 | |||
| XB1616D29 11.5NPTF A9 XB1616D29 11.5NPTF A9 | — | — | NPTF 1 - 2" | — | 16,000 | 16,00 | 29,82 | 89,00 | 4 | |||
| XB1616D40 11W A9 XB1616D40 11W A9 | — | — | W G 1 - 3" | — | 16,000 | 16,00 | 40,41 | 100,00 | 4 | |||
| XB1616E22 14NPT A9 XB1616E22 14NPT A9 | — | — | NPT 3/4 | — | 16,000 | 16,00 | 22,68 | 89,00 | 5 | |||
| XB1616E28 14W A9 XB1616E28 14W A9 | — | — | W G 1/2 - 7/8 | — | 16,000 | 16,00 | 28,12 | 89,00 | 5 | |||
| XB1616F29 11.5NPT A9 XB1616F29 11.5NPT A9 | — | — | NPT 1 - 2" | — | 16,000 | 16,00 | 29,82 | 89,00 | 6 | |||
| XB1616G28 14W A9 XB1616G28 14W A9 | — | — | W G 1/2 - 7/8 | — | 16,000 | 16,00 | 28,12 | 89,00 | 7 | |||
| XBT1616D40 11W A9 XBT1616D40 11W A9 | — | — | W G 1 - 3" | — | 16,000 | 16,00 | 40,41 | 100,00 | 4 | |||
| NB1818C64 3.0ISO A9 NB1818C64 3.0ISO A9 | M24x3 | ≥ M30x3 | — | 3,00 | 18,000 | 18,00 | 64,50 | 130,00 | 3 | |||
| NB2020C50 3.5ISO A9 NB2020C50 3.5ISO A9 | M30x3,5 | — | — | 3,50 | 20,000 | 20,00 | 50,75 | 120,00 | 3 | |||
| NB2020C52 7UN A9 NB2020C52 7UN A9 | — | — | UNC 1 1/8 - 1 1/4-7 | — | 20,000 | 20,00 | 52,61 | 120,00 | 3 | |||
| NB2020C58 4.0ISO A9 NB2020C58 4.0ISO A9 | M36x4 | ≥ M42x4 | — | 4,00 | 20,000 | 20,00 | 58,00 | 150,00 | 3 | |||
| NB2020C64 3.5ISO A9 NB2020C64 3.5ISO A9 | M30x3,5 | — | — | 3,50 | 20,000 | 20,00 | 64,75 | 150,00 | 3 | |||
| NB2020C78 3.5ISO A9 NB2020C78 3.5ISO A9 | M30x3,5 | — | — | 3,50 | 20,000 | 20,00 | 78,75 | 150,00 | 3 | |||
| NB2020D46 3.0ISO A9 NB2020D46 3.0ISO A9 | — | ≥ M30x3 | — | 3,00 | 20,000 | 20,00 | 46,50 | 120,00 | 4 | |||
| NB2020D49 8UN A9 NB2020D49 8UN A9 | — | — | UN-8 | — | 20,000 | 20,00 | 49,21 | 120,00 | 4 | |||
| NB2020D61 3.0ISO A9 NB2020D61 3.0ISO A9 | — | ≥ M30x3 | — | 3,00 | 20,000 | 20,00 | 61,50 | 150,00 | 4 | |||
| NB2020F43 2.0ISO A9 NB2020F43 2.0ISO A9 | — | ≥ M24x2 | — | 2,00 | 20,000 | 20,00 | 43,00 | 100,00 | 6 | |||
| NB2020F57 2.0ISO A9 NB2020F57 2.0ISO A9 | — | ≥ M24x2 | — | 2,00 | 20,000 | 20,00 | 57,00 | 120,00 | 6 | |||
| NBK2020C50 3.5ISO A9 NBK2020C50 3.5ISO A9 | M30x3,5 | — | — | 3,50 | 20,000 | 20,00 | 50,75 | 150,00 | 3 | |||
| NBK2020C64 3.5ISO A9 NBK2020C64 3.5ISO A9 | M30x3,5 | — | — | 3,50 | 20,000 | 20,00 | 64,75 | 150,00 | 3 | |||
| NPT2017D48 F9 NPT2017D48 F9 | — | — | NPT/NPTF | — | 20,000 | 17,00 | 48,00 | 120,00 | 4 | |||
| XB2020D42 8NPT A9 XB2020D42 8NPT A9 | — | — | NPT ≥ 2 1/2 | — | 20,000 | 20,00 | 42,86 | 100,00 | 4 | |||
| XB2020D42 8NPTF A9 XB2020D42 8NPTF A9 | — | — | NPTF ≥ 2 1/2 | — | 20,000 | 20,00 | 42,86 | 100,00 | 4 | |||
| XB2020E49 11W A9 XB2020E49 11W A9 | — | — | W G ≥ 1 | — | 20,000 | 20,00 | 49,65 | 120,00 | 5 | |||
| NB2525C61 6UN A9 NB2525C61 6UN A9 | — | — | UNC 1 3/8 - 1 1/2-6 | — | 25,000 | 25,00 | 61,38 | 130,00 | 3 |
swipe
