ACTIONMILL Trochoid cooled
Milling
Brand: ACTIONMILL

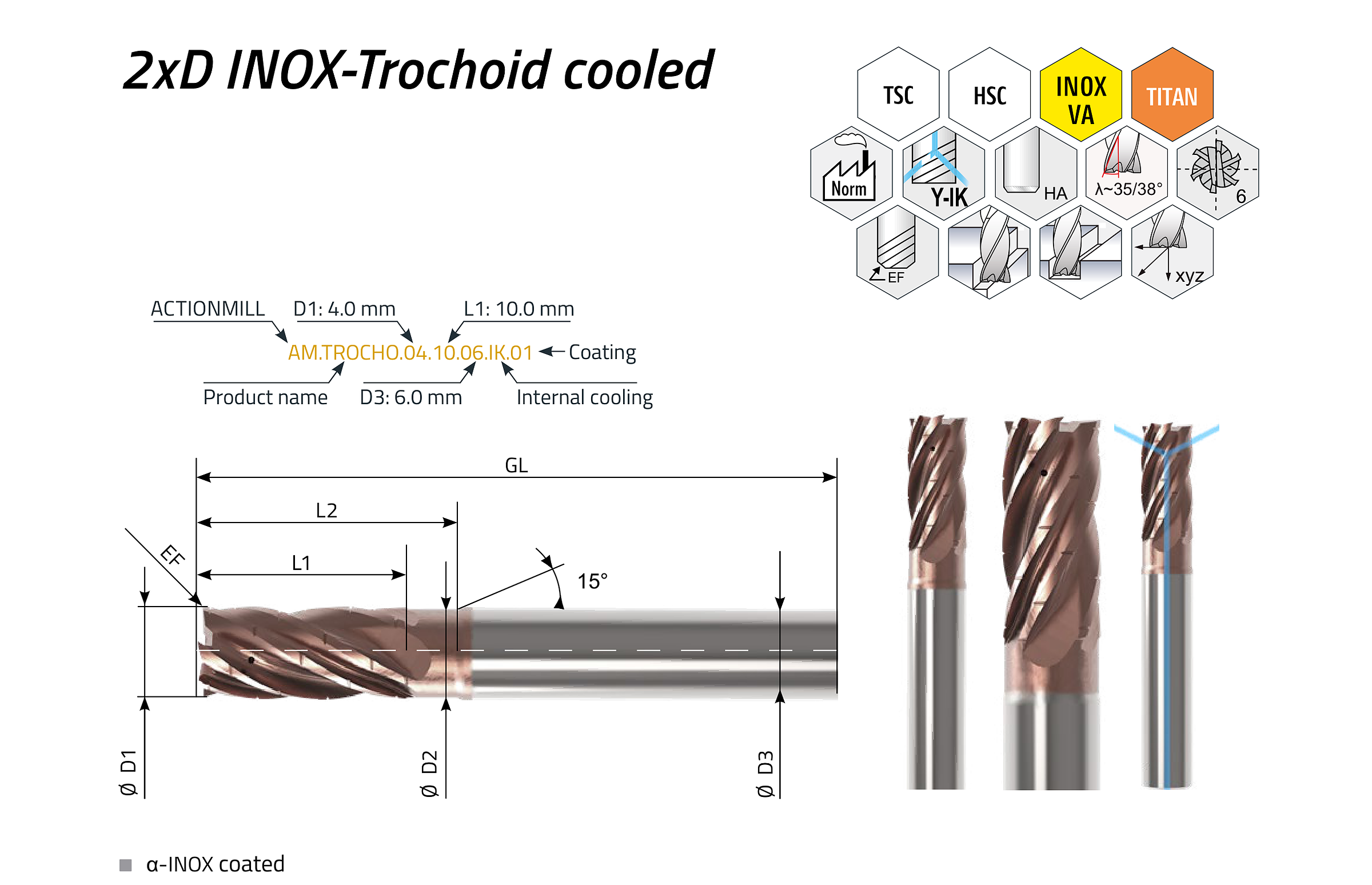

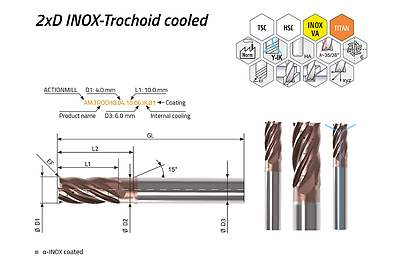

The ACTIONMILL Trochoid cooled is the variant of the trochoidal end mill from Ø 4 to Ø 16 mm with internal cooling and Y-shaped coolant outlets directly at the cutting edge. Six unequally pitched flutes and a chip-splitter geometry keep roughing of pockets and contours vibration-free and stable, available with 2xD or 3xD flute length. Material-specific coatings α-INOX, β-TITAN and γ-Steel cover stainless steels, aluminum and titanium alloys as well as steels and cast iron.
Short description
- High-performance tool for trochoidal machining with Y-shaped integrated coolant
- Vibration-free machining thanks to unequal pitch
- Protected and sharp cutter corner
- Special cutting-edge design for vibration damping
Item variants
Items (19)
| Item number |
D1
(mm)
|
D1
(inch)
|
D2
(mm)
|
D3 h6
(mm)
|
L1
(mm)
|
L2
(mm)
|
EF
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AM.TROCHO.03968.10.06.IK.01 …03968.10.06.IK.01 | 3,968 | 5/32" | 3,80 | 6,00 | 10,00 | 18,00 | 0,03 | 58,00 | 6 | |||
| AM.TROCHO.04.10.06.IK.01 …04.10.06.IK.01 | 4,000 | — | 3,80 | 6,00 | 10,00 | 18,00 | 0,03 | 58,00 | 6 | |||
| AM.TROCHO.04762.14.06.IK.01 …04762.14.06.IK.01 | 4,762 | 3/16" | 4,50 | 6,00 | 14,00 | 20,00 | 0,03 | 58,00 | 6 | |||
| AM.TROCHO.05.14.06.IK.01 …05.14.06.IK.01 | 5,000 | — | 4,80 | 6,00 | 14,00 | 20,00 | 0,03 | 58,00 | 6 | |||
| AM.TROCHO.05556.14.06.IK.01 …05556.14.06.IK.01 | 5,556 | 7/32" | 5,20 | 6,00 | 14,00 | 22,00 | 0,03 | 58,00 | 6 | |||
| AM.TROCHO.06.14.06.IK.01 …06.14.06.IK.01 | 6,000 | — | 5,70 | 6,00 | 14,00 | 22,00 | 0,03 | 58,00 | 6 | |||
| AM.TROCHO.0635.14.08.IK.01 …0635.14.08.IK.01 | 6,350 | 1/4" | 6,00 | 8,00 | 14,00 | 22,00 | 0,03 | 64,00 | 6 | |||
| AM.TROCHO.07144.18.08.IK.01 …07144.18.08.IK.01 | 7,144 | 9/32" | 6,90 | 8,00 | 18,00 | 26,00 | 0,03 | 64,00 | 6 | |||
| AM.TROCHO.07938.18.08.IK.01 …07938.18.08.IK.01 | 7,938 | 5/16" | 7,80 | 8,00 | 18,00 | 26,00 | 0,03 | 64,00 | 6 | |||
| AM.TROCHO.08.18.08.IK.01 …08.18.08.IK.01 | 8,000 | — | 7,80 | 8,00 | 18,00 | 26,00 | 0,05 | 64,00 | 6 | |||
| AM.TROCHO.09525.22.10.IK.01 …09525.22.10.IK.01 | 9,525 | 3/8" | 9,20 | 10,00 | 22,00 | 32,00 | 0,05 | 73,00 | 6 | |||
| AM.TROCHO.10.22.10.IK.01 …10.22.10.IK.01 | 10,000 | — | 9,70 | 10,00 | 22,00 | 32,00 | 0,05 | 73,00 | 6 | |||
| AM.TROCHO.111125.26.12.IK.01 …111125.26.12.IK.01 | 11,113 | 7/16" | 10,80 | 12,00 | 26,00 | 36,00 | 0,05 | 84,00 | 6 | |||
| AM.TROCHO.12.26.12.IK.01 …12.26.12.IK.01 | 12,000 | — | 11,70 | 12,00 | 26,00 | 36,00 | 0,05 | 84,00 | 6 | |||
| AM.TROCHO.12700.28.14.IK.01 …12700.28.14.IK.01 | 12,700 | 1/2" | 12,40 | 14,00 | 28,00 | 36,00 | 0,10 | 84,00 | 6 | |||
| AM.TROCHO.14.31.14.IK.01 …14.31.14.IK.01 | 14,000 | — | 13,70 | 14,00 | 31,00 | 40,00 | 0,10 | 84,00 | 6 | |||
| AM.TROCHO.142875.32.16.IK.01 …142875.32.16.IK.01 | 14,288 | 9/16" | 13,90 | 16,00 | 32,00 | 40,00 | 0,10 | 83,00 | 6 | |||
| AM.TROCHO.15875.35.16.IK.01 …15875.35.16.IK.01 | 15,875 | 5/8" | 15,50 | 16,00 | 35,00 | 43,00 | 0,10 | 83,00 | 6 | |||
| AM.TROCHO.16.35.16.IK.01 …16.35.16.IK.01 | 16,000 | — | 15,70 | 16,00 | 35,00 | 43,00 | 0,10 | 83,00 | 6 |
