ACTIONMILL Quarter-Chamfer
Deburring
Brand: ACTIONMILL
The ACTIONMILL Quarter-Chamfer is a quarter-radius cutter from R 0.2 mm to R 3.0 mm for milling internal radii and deburring in a single pass – available with two flutes (Z2) for more chip room or three flutes (Z3) for improved surface finish. A 4°–6° relief at both ends prevents secondary burrs, so radii are produced without raster passes. The α-INOX coating and the reinforced h6 shank in thermal-shock-resistant fine-grain solid carbide suit stainless steels, CoCr and titanium alloys, steels, cast iron, aluminum and plastics.
Short description
- INOX quarter-circle cutter from R 0.2 mm to R 3.0 mm
- Mill radii instantly, no more line milling needed
- Thanks to the 4°-6° runout at both ends, no secondary burrs arise
- Chromium-free coatings

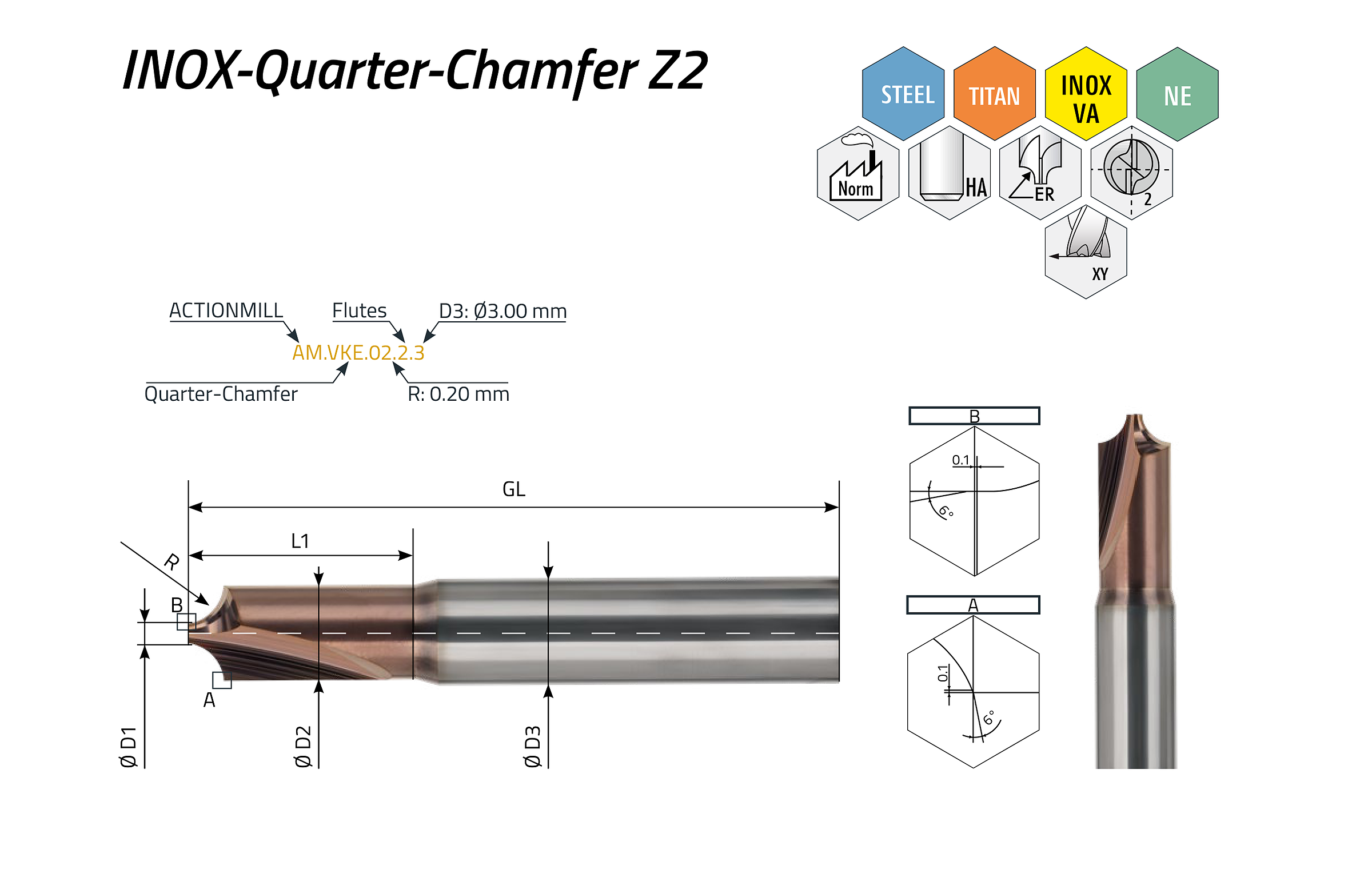

Item variants
Items (9)
| Item number |
D1
(mm)
|
D2
(mm)
|
D3 h6
(mm)
|
L1
(mm)
|
R
(mm)
|
ER
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| AM.VKE.02.2.3 …02.2.3 | 0,500 | 1,00 | 3,00 | 4,00 | 0,20 | 0,20 | 50,00 | 2 | |||
| AM.VKE.03.2.3 …03.2.3 | 0,500 | 1,25 | 3,00 | 4,00 | 0,30 | 0,30 | 50,00 | 2 | |||
| AM.VKE.04.2.3 …04.2.3 | 0,500 | 1,40 | 3,00 | 5,00 | 0,40 | 0,40 | 50,00 | 2 | |||
| AM.VKE.05.2.3 …05.2.3 | 0,500 | 1,60 | 3,00 | 6,00 | 0,50 | 0,50 | 50,00 | 2 | |||
| AM.VKE.10.2.3 …10.2.3 | 0,800 | 2,80 | 3,00 | 8,00 | 1,00 | 1,00 | 50,00 | 2 | |||
| AM.VKE.15.2.6 …15.2.6 | 1,500 | 4,40 | 6,00 | 12,00 | 1,50 | 1,50 | 50,00 | 2 | |||
| AM.VKE.20.2.6 …20.2.6 | 1,500 | 5,30 | 6,00 | 14,00 | 2,00 | 2,00 | 50,00 | 2 | |||
| AM.VKE.25.2.8 …25.2.8 | 1,500 | 6,20 | 8,00 | 16,00 | 2,50 | 2,50 | 60,00 | 2 | |||
| AM.VKE.30.2.8 …30.2.8 | 1,500 | 7,10 | 8,00 | 17,00 | 3,00 | 3,00 | 60,00 | 2 |
