ACTIONMILL micro-Front-Chamfer
Deburring
Brand: ACTIONMILL

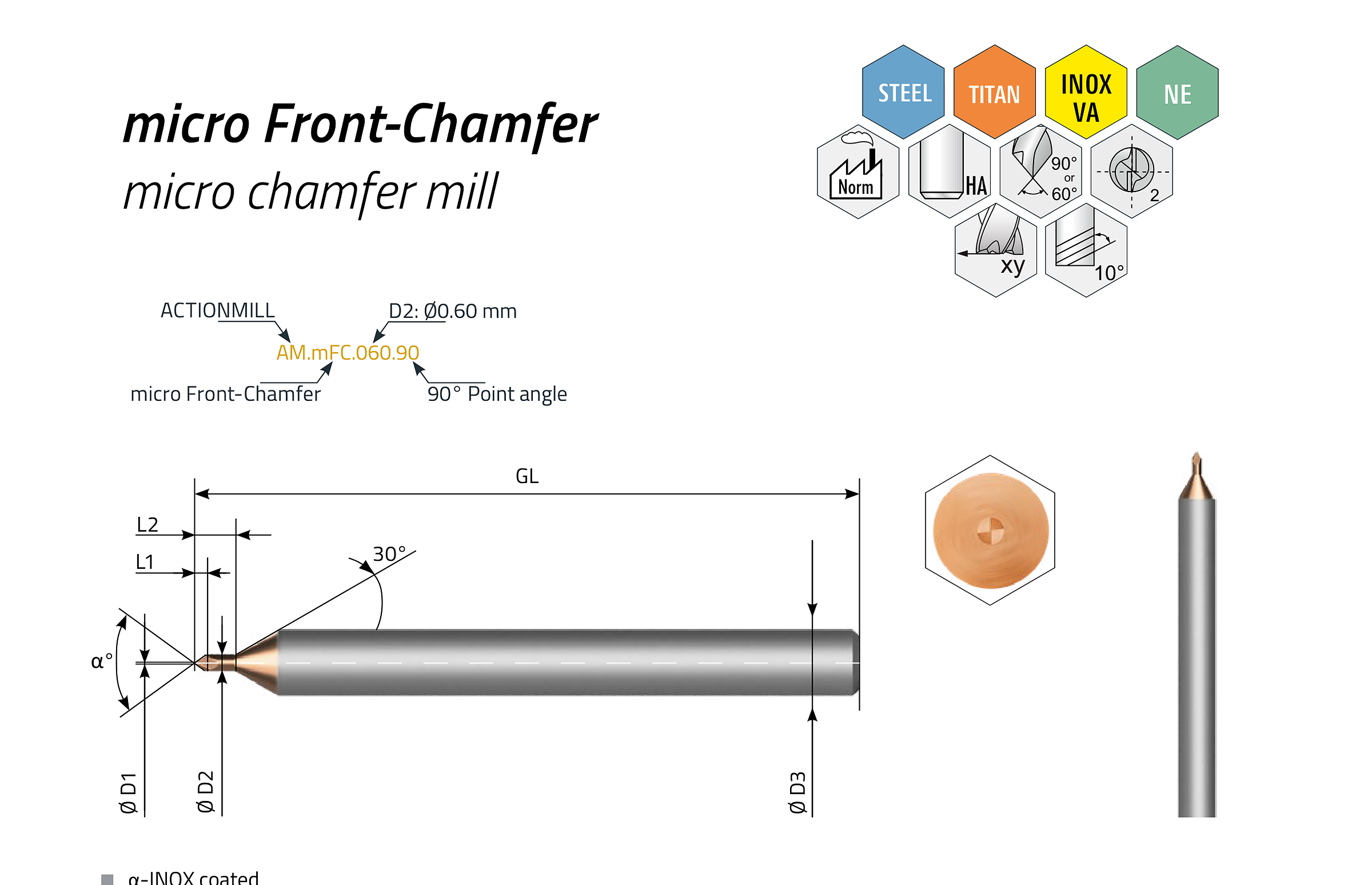

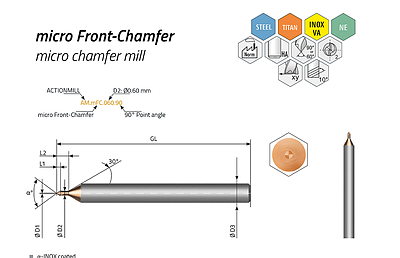

The ACTIONMILL micro Front-Chamfer is a two-flute front-end deburring and chamfering tool in fine-grain solid carbide, available from Ø 0.05 mm to Ø 1.3 mm with 60° or 90° point angle. It chamfers and deburrs edges, slots, holes and thread entries in the micro range and works across steel, stainless steel, titanium and CrCo alloys thanks to the α-INOX coating. The reinforced h6 shank keeps the tool stiff and vibration-free, allowing high cutting and feed rates.
Short description
- Deburring and chamfering of edges, grooves, holes and threads
- Reinforced design for long service life
- Universally applicable across the most diverse materials
- Chromium-free coatings
Item variants
Items (4)
| Item number |
D1
(mm)
|
D2
(mm)
|
D3
(mm)
|
L1
(mm)
|
L2
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| AM.mFC.060.60 …060.60 | 0,050 | 0,60 | 4,00 | 0,52 | 2,00 | 40,00 | 2 | |||
| AM.mFC.080.60 …080.60 | 0,050 | 0,80 | 4,00 | 0,69 | 2,50 | 40,00 | 2 | |||
| AM.mFC.100.60 …100.60 | 0,050 | 1,00 | 4,00 | 0,87 | 2,50 | 40,00 | 2 | |||
| AM.mFC.130.60 …130.60 | 0,050 | 1,30 | 4,00 | 1,13 | 3,00 | 40,00 | 2 |
