ACTIONMILL INOX Lollipop-Z4 260°
Milling
Brand: ACTIONMILL
The ACTIONMILL INOX Lollipop-Z4 260° is a four-flute ball nose end mill with 260° geometry from Ø 1 to Ø 10 mm; its extended cutting zone reaching beyond the main sphere also enables machining of undercuts. The edges cut through center and allow scanline finishing of demanding contours in titanium, INOX and steel alloys. A reinforced h6 shank, α-INOX high-performance coating and fine-grain solid carbide support high feed rates and tool life.
Short description
- Available from Ø1.0 – Ø10.0 mm with 4 teeth
- Shorter process times and high process reliability
- Very long tool life (cutting across center)
- Undercuts possible thanks to 260° cutting-edge wrap
Item variants
Items (17)

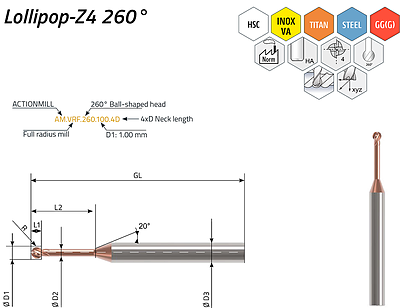

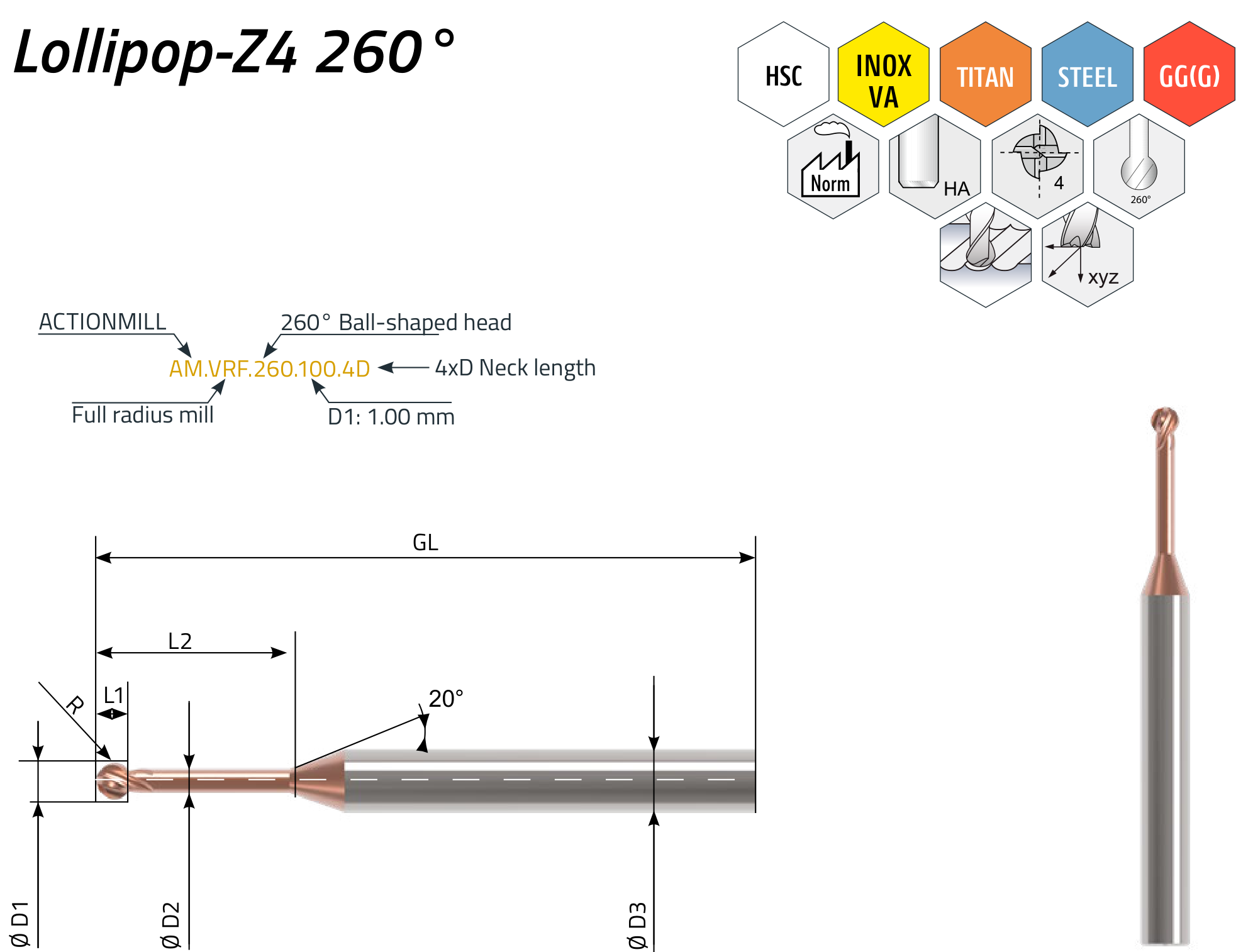

| Item number |
D1
(mm)
|
D1
(inch)
|
D2
(mm)
|
D3 h6
(mm)
|
L1
(mm)
|
L2
(mm)
|
L3
(mm)
|
R
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AM.VRF.260.100.4D.IK …260.100.4D.IK | 1,000 | — | 0,77 | 4,00 | 0,82 | 4,00 | 6,34 | 0,50 | 60,00 | 4 | |||
| AM.VRF.260.150.4D.IK …260.150.4D.IK | 1,500 | — | 1,15 | 4,00 | 1,23 | 6,00 | 8,06 | 0,75 | 60,00 | 4 | |||
| AM.VRF.260.1587.4D.IK …260.1587.4D.IK | 1,587 | 1/16" | 1,22 | 4,00 | 1,30 | 6,35 | 8,37 | 0,79 | 60,00 | 4 | |||
| AM.VRF.260.200.4D.IK …260.200.4D.IK | 2,000 | — | 1,53 | 4,00 | 1,64 | 8,00 | 9,79 | 1,00 | 60,00 | 4 | |||
| AM.VRF.260.2381.4D.IK …260.2381.4D.IK | 2,381 | 3/32" | 1,83 | 4,00 | 1,96 | 9,52 | 11,10 | 1,19 | 60,00 | 4 | |||
| AM.VRF.260.250.4D.IK …260.250.4D.IK | 2,500 | — | 1,92 | 4,00 | 2,05 | 10,00 | 11,52 | 1,25 | 60,00 | 4 | |||
| AM.VRF.260.300.4D.IK …260.300.4D.IK | 3,000 | — | 2,30 | 6,00 | 2,46 | 12,00 | 14,67 | 1,50 | 60,00 | 4 | |||
| AM.VRF.260.3175.4D.IK …260.3175.4D.IK | 3,175 | 1/8" | 2,43 | 6,00 | 2,61 | 12,70 | 15,28 | 1,59 | 60,00 | 4 | |||
| AM.VRF.260.3968.4D.IK …260.3968.4D.IK | 3,968 | 5/32" | 3,04 | 6,00 | 3,26 | 15,87 | 18,03 | 1,98 | 60,00 | 4 | |||
| AM.VRF.260.400.4D.IK …260.400.4D.IK | 4,000 | — | 3,06 | 6,00 | 3,29 | 16,00 | 18,14 | 2,00 | 60,00 | 4 | |||
| AM.VRF.260.4762.4D.IK …260.4762.4D.IK | 4,762 | 3/16" | 3,65 | 6,00 | 3,91 | 19,05 | 20,77 | 2,38 | 60,00 | 4 | |||
| AM.VRF.260.500.4D.IK …260.500.4D.IK | 5,000 | — | 3,83 | 8,00 | 4,11 | 20,00 | 23,02 | 2,50 | 84,00 | 4 | |||
| AM.VRF.260.5556.4D.IK …260.5556.4D.IK | 5,556 | 7/32" | 2,26 | 8,00 | 4,56 | 22,22 | 24,94 | 2,78 | 84,00 | 4 | |||
| AM.VRF.260.600.4D.IK …260.600.4D.IK | 6,000 | — | 4,60 | 8,00 | 4,93 | 24,00 | 26,49 | 3,00 | 84,00 | 4 | |||
| AM.VRF.260.6350.4D.IK …260.6350.4D.IK | 6,350 | 1/4" | 4,87 | 8,00 | 5,22 | 25,40 | 27,70 | 3,18 | 84,00 | 4 | |||
| AM.VRF.260.800.4D.IK …260.800.4D.IK | 8,000 | — | 6,13 | 10,00 | 6,57 | 32,00 | 34,82 | 4,00 | 93,00 | 4 | |||
| AM.VRF.260.1000.4D.IK …260.1000.4D.IK | 10,000 | — | 7,66 | 12,00 | 8,21 | 40,00 | 43,16 | 5,00 | 101,00 | 4 |
