ACTIONMILL INOX-Torus cooled
Milling
Brand: ACTIONMILL

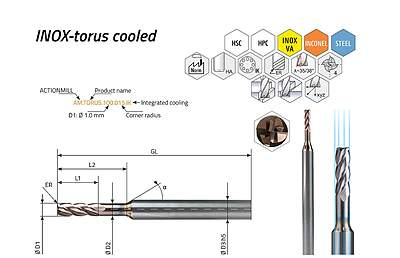

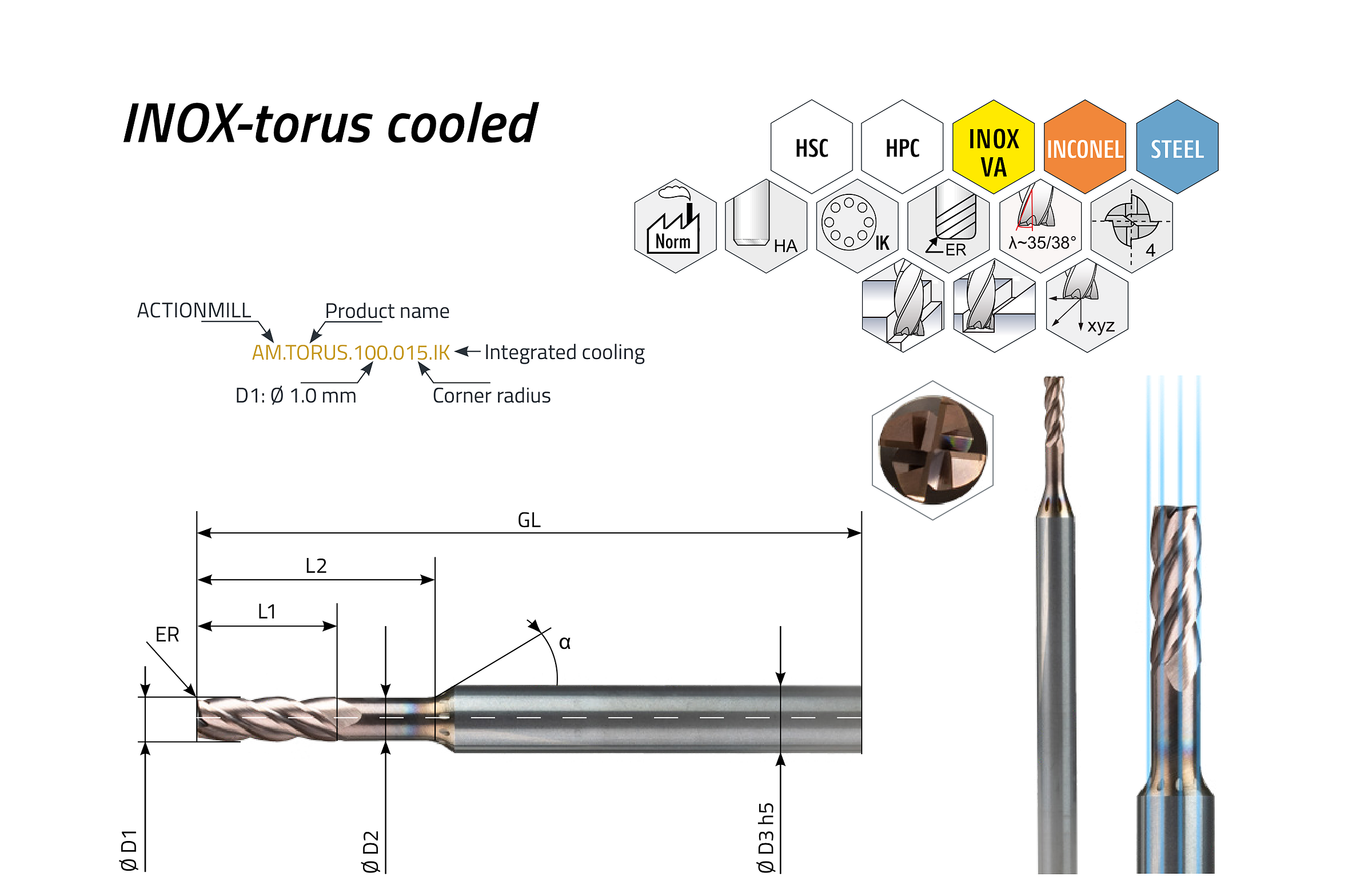

The ACTIONMILL INOX-torus cooled is a four-flute corner-radius end mill from Ø 1.0 mm to Ø 6.35 mm with corner radii from ER 0.15 to ER 1.5 mm, with 3xD cutting length and 5xD neck length. Internal coolant channels protect the tool from overheating and flush chips out of the cut, while the α-INOX coating prevents built-up edge. A reinforced h5 shank and ultra-fine-grain carbide with high fracture toughness allow high feed and cutting speeds with reliable, vibration-free running.
Short description
- Z4 torus cutter from Ø1.0
- Integrated coolant prevents chip jams
- Very high feed rates possible
- Chromium-free coatings
Items (37)
| Item number |
D1
(mm)
|
D1
(inch)
|
D2
(mm)
|
D3 h5
(mm)
|
L1
(mm)
|
L2
(mm)
|
ER
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AM.TORUS.100.015.IK …100.015.IK | 1,000 | — | 0,92 | 4,00 | 3,00 | 5,00 | 0,15 | 50,00 | 4 | |||
| AM.TORUS.100.025.IK …100.025.IK | 1,000 | — | 0,92 | 4,00 | 3,00 | 5,00 | 0,25 | 50,00 | 4 | |||
| AM.TORUS.1587.015.IK …1587.015.IK | 1,587 | 1/16" | 1,48 | 4,00 | 4,80 | 8,00 | 0,15 | 50,00 | 4 | |||
| AM.TORUS.1587.025.IK …1587.025.IK | 1,587 | 1/16" | 1,48 | 4,00 | 4,80 | 8,00 | 0,25 | 50,00 | 4 | |||
| AM.TORUS.200.015.IK …200.015.IK | 2,000 | — | 1,90 | 4,00 | 6,00 | 10,00 | 0,15 | 50,00 | 4 | |||
| AM.TORUS.200.025.IK …200.025.IK | 2,000 | — | 1,90 | 4,00 | 6,00 | 10,00 | 0,25 | 50,00 | 4 | |||
| AM.TORUS.2381.015.IK …2381.015.IK | 2,381 | 3/32" | 2,28 | 4,00 | 7,20 | 12,00 | 0,15 | 50,00 | 4 | |||
| AM.TORUS.2381.025.IK …2381.025.IK | 2,381 | 3/32" | 2,28 | 4,00 | 7,20 | 12,00 | 0,25 | 50,00 | 4 | |||
| AM.TORUS.300.025.IK …300.025.IK | 3,000 | — | 2,90 | 6,00 | 9,00 | 15,00 | 0,25 | 60,00 | 4 | |||
| AM.TORUS.300.050.IK …300.050.IK | 3,000 | — | 2,90 | 6,00 | 9,00 | 15,00 | 0,50 | 60,00 | 4 | |||
| AM.TORUS.300.100.IK …300.100.IK | 3,000 | — | 2,90 | 6,00 | 9,00 | 15,00 | 1,00 | 60,00 | 4 | |||
| AM.TORUS.3175.025.IK …3175.025.IK | 3,175 | 1/8" | 3,05 | 6,00 | 9,60 | 16,00 | 0,25 | 60,00 | 4 | |||
| AM.TORUS.3175.050.IK …3175.050.IK | 3,175 | 1/8" | 3,05 | 6,00 | 9,60 | 16,00 | 0,50 | 60,00 | 4 | |||
| AM.TORUS.3175.100.IK …3175.100.IK | 3,175 | 1/8" | 3,05 | 6,00 | 9,60 | 16,00 | 1,00 | 60,00 | 4 | |||
| AM.TORUS.3968.025.IK …3968.025.IK | 3,968 | 5/32" | 3,85 | 6,00 | 12,00 | 20,00 | 0,25 | 60,00 | 4 | |||
| AM.TORUS.3968.050.IK …3968.050.IK | 3,968 | 5/32" | 3,85 | 6,00 | 12,00 | 20,00 | 0,50 | 60,00 | 4 | |||
| AM.TORUS.3968.100.IK …3968.100.IK | 3,968 | 5/32" | 3,85 | 6,00 | 12,00 | 20,00 | 1,00 | 60,00 | 4 | |||
| AM.TORUS.400.025.IK …400.025.IK | 4,000 | — | 3,85 | 6,00 | 12,00 | 20,00 | 0,25 | 60,00 | 4 | |||
| AM.TORUS.400.050.IK …400.050.IK | 4,000 | — | 3,85 | 6,00 | 12,00 | 20,00 | 0,50 | 60,00 | 4 | |||
| AM.TORUS.400.100.IK …400.100.IK | 4,000 | — | 3,85 | 6,00 | 12,00 | 20,00 | 1,00 | 60,00 | 4 | |||
| AM.TORUS.4762.025.IK …4762.025.IK | 4,762 | 3/16" | 4,60 | 8,00 | 14,40 | 24,00 | 0,25 | 68,00 | 4 | |||
| AM.TORUS.4762.050.IK …4762.050.IK | 4,762 | 3/16" | 4,60 | 8,00 | 14,40 | 24,00 | 0,50 | 68,00 | 4 | |||
| AM.TORUS.4762.100.IK …4762.100.IK | 4,762 | 3/16" | 4,60 | 8,00 | 14,40 | 24,00 | 1,00 | 68,00 | 4 | |||
| AM.TORUS.500.025.IK …500.025.IK | 5,000 | — | 4,85 | 8,00 | 15,00 | 25,00 | 0,25 | 68,00 | 4 | |||
| AM.TORUS.500.050.IK …500.050.IK | 5,000 | — | 4,85 | 8,00 | 15,00 | 25,00 | 0,50 | 68,00 | 4 | |||
| AM.TORUS.500.100.IK …500.100.IK | 5,000 | — | 4,85 | 8,00 | 15,00 | 25,00 | 1,00 | 68,00 | 4 | |||
| AM.TORUS.5556.025.IK …5556.025.IK | 5,556 | 7/32" | 5,40 | 8,00 | 16,80 | 28,00 | 0,25 | 68,00 | 4 | |||
| AM.TORUS.5556.050.IK …5556.050.IK | 5,556 | 7/32" | 5,40 | 8,00 | 16,80 | 28,00 | 0,50 | 68,00 | 4 | |||
| AM.TORUS.5556.100.IK …5556.100.IK | 5,556 | 7/32" | 5,40 | 8,00 | 16,80 | 28,00 | 1,00 | 68,00 | 4 | |||
| AM.TORUS.600.025.IK …600.025.IK | 6,000 | — | 5,85 | 8,00 | 18,00 | 30,00 | 0,25 | 68,00 | 4 | |||
| AM.TORUS.600.050.IK …600.050.IK | 6,000 | — | 5,85 | 8,00 | 18,00 | 30,00 | 0,50 | 68,00 | 4 | |||
| AM.TORUS.600.100.IK …600.100.IK | 6,000 | — | 5,85 | 8,00 | 18,00 | 30,00 | 1,00 | 68,00 | 4 | |||
| AM.TORUS.600.150.IK …600.150.IK | 6,000 | — | 5,85 | 8,00 | 18,00 | 30,00 | 1,50 | 68,00 | 4 | |||
| AM.TORUS.635.025.IK …635.025.IK | 6,350 | 1/4" | 6,20 | 10,00 | 19,20 | 32,00 | 0,25 | 84,00 | 4 | |||
| AM.TORUS.635.050.IK …635.050.IK | 6,350 | 1/4" | 6,20 | 10,00 | 19,20 | 32,00 | 0,50 | 84,00 | 4 | |||
| AM.TORUS.635.100.IK …635.100.IK | 6,350 | 1/4" | 6,20 | 10,00 | 19,20 | 32,00 | 1,00 | 84,00 | 4 | |||
| AM.TORUS.635.150.IK …635.150.IK | 6,350 | 1/4" | 6,20 | 10,00 | 19,20 | 32,00 | 1,50 | 84,00 | 4 |
