ACTIONMILL INOX-micro Torx
Milling
Brand: ACTIONMILL

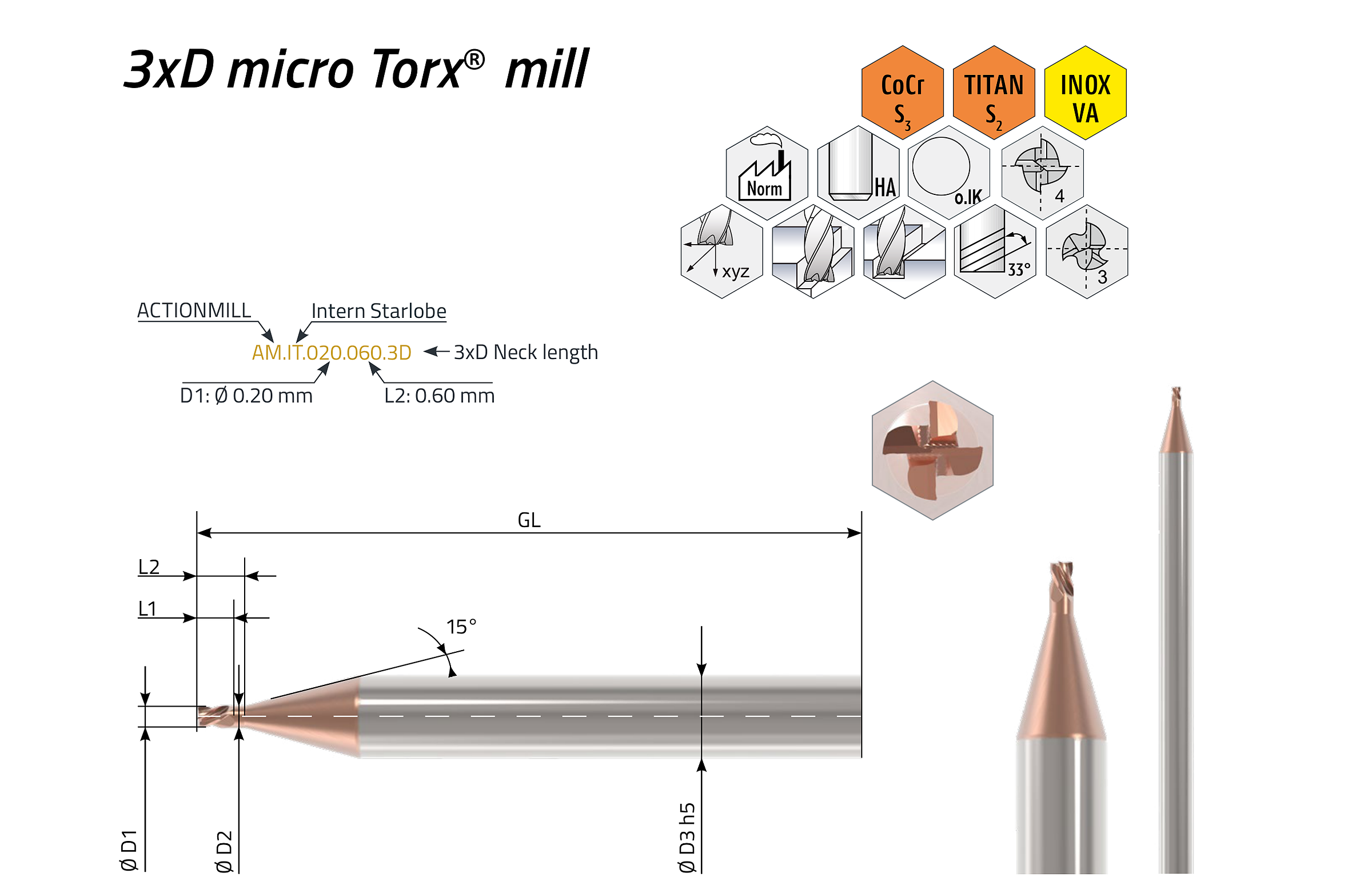

The ACTIONMILL INOX-micro Torx is a micro end mill for cutting Torx profiles T4 to T30, with three flutes from Ø 0.2 mm and four flutes from Ø 0.4 mm. It delivers high profile accuracy and minimal burr formation; the chromium-free α-INOX coating prevents cross-contamination on medical components. A reinforced h6 shank and ultra-fine-grain carbide with high fracture toughness keep the tool vibration-free and process-reliable, available in 3xD and 5xD neck lengths.
Short description
- Ø0.2 to Ø1.0
- In 3xD and 5xD
- For Torx® types T4 to T30
- Chromium-free coatings
Item variants
Items (8)
| Item number |
D1
(mm)
|
D2
(mm)
|
D3 h5
(mm)
|
L1
(mm)
|
L2
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| AM.IT.020.060.3D …020.060.3D | 0,200 | 0,18 | 3,00 | 0,30 | 0,60 | 39,00 | 3 | |||
| AM.IT.025.075.3D …025.075.3D | 0,250 | 0,24 | 3,00 | 0,38 | 0,75 | 39,00 | 3 | |||
| AM.IT.030.090.3D …030.090.3D | 0,300 | 0,28 | 3,00 | 0,45 | 0,90 | 39,00 | 3 | |||
| AM.IT.040.120.3D …040.120.3D | 0,400 | 0,38 | 3,00 | 0,60 | 1,20 | 39,00 | 4 | |||
| AM.IT.050.150.3D …050.150.3D | 0,500 | 0,47 | 3,00 | 0,75 | 1,50 | 39,00 | 4 | |||
| AM.IT.060.180.3D …060.180.3D | 0,600 | 0,56 | 3,00 | 0,90 | 1,80 | 39,00 | 4 | |||
| AM.IT.080.240.3D …080.240.3D | 0,800 | 0,75 | 3,00 | 1,20 | 2,40 | 39,00 | 4 | |||
| AM.IT.100.300.3D …100.300.3D | 1,000 | 0,94 | 3,00 | 1,50 | 3,00 | 39,00 | 4 |
