ACTIONMILL INOX-HPC
Milling
Brand: ACTIONMILL

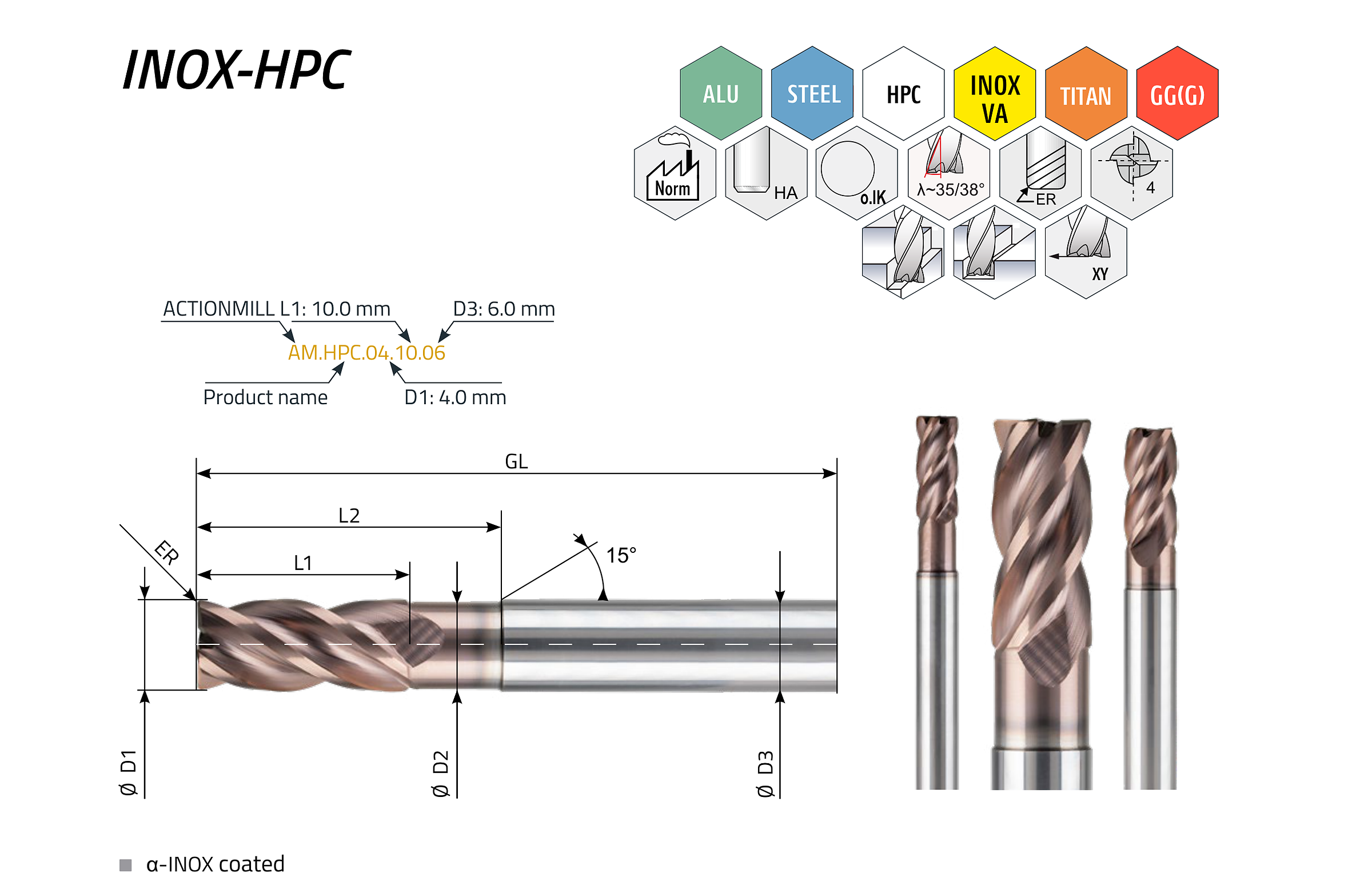

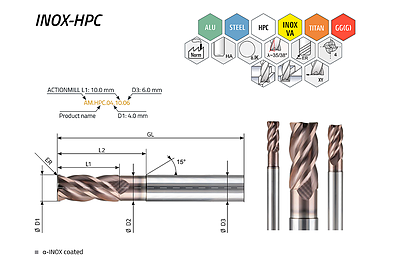

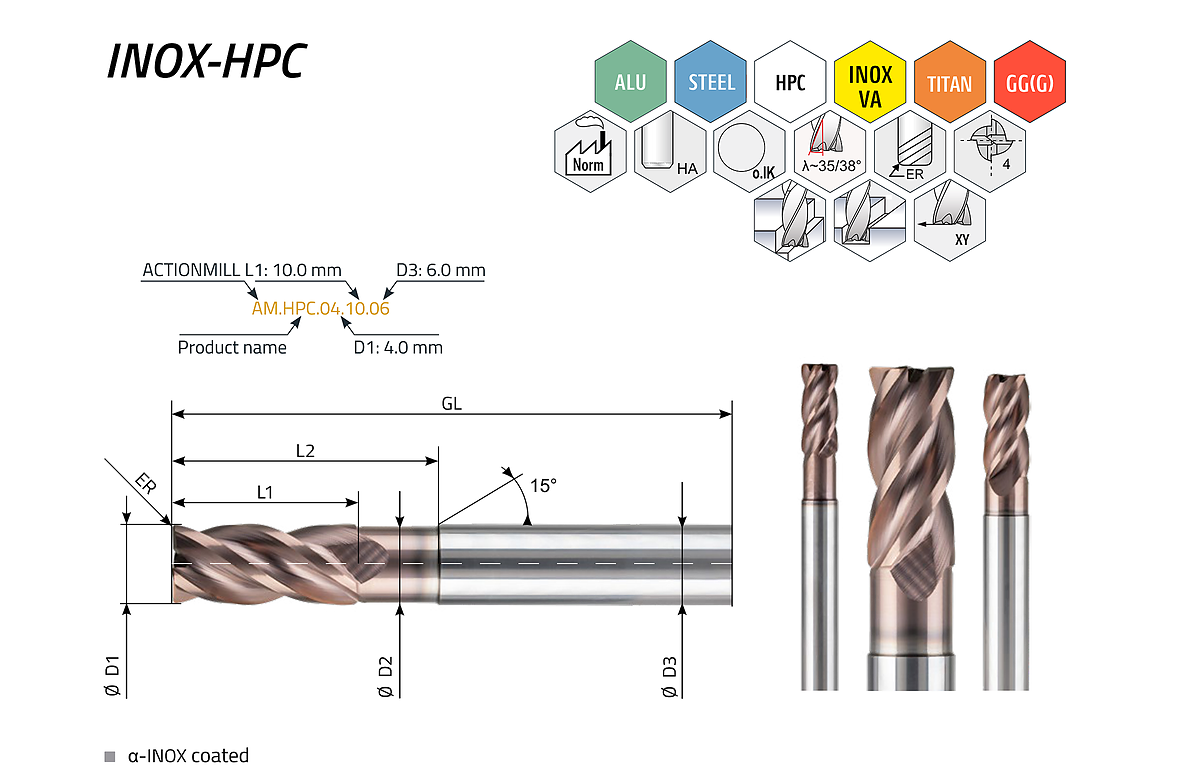

The ACTIONMILL INOX-HPC is a high-performance end mill with four flutes from Ø 4 to Ø 12 mm for roughing and finishing demanding materials such as stainless steel or CoCr. The corner radius (ER 0.3 at Ø 4, ER 0.5 from Ø 6) protects the cutting edge and the α-INOX coating prevents built-up edge. Thermal-shock-resistant ultra-fine-grain carbide provides high fracture toughness, process reliability and long tool life.
Short description
- High-performance HPC cutter from Ø4.0 – Ø12.0 available with 4 teeth
- Shorter process times and high process reliability
- Roughing of demanding materials such as CoCr or INOX
- Short chips increase tool life (durability)
Item variants
Items (10)
| Item number |
D1
(mm)
|
D1
(inch)
|
D2
(mm)
|
D3 h6
(mm)
|
L1
(mm)
|
L2
(mm)
|
ER
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AM.HPC.03968.10.06 …03968.10.06 | 3,968 | 5/32" | 3,40 | 6,00 | 10,00 | 18,00 | 0,30 | 58,00 | 4 | |||
| AM.HPC.04.10.06 …04.10.06 | 4,000 | — | 3,50 | 6,00 | 10,00 | 18,00 | 0,30 | 58,00 | 4 | |||
| AM.HPC.04762.14.06 …04762.14.06 | 4,762 | 3/16" | 4,20 | 6,00 | 14,00 | 20,00 | 0,30 | 58,00 | 4 | |||
| AM.HPC.05.14.06 …05.14.06 | 5,000 | — | 4,20 | 6,00 | 14,00 | 20,00 | 0,30 | 58,00 | 4 | |||
| AM.HPC.05556.14.06 …05556.14.06 | 5,556 | 7/32" | 5,00 | 6,00 | 14,00 | 22,00 | 0,50 | 58,00 | 4 | |||
| AM.HPC.06.14.06 …06.14.06 | 6,000 | — | 5,50 | 6,00 | 14,00 | 22,00 | 0,50 | 58,00 | 4 | |||
| AM.HPC.0635.14.08 …0635.14.08 | 6,350 | 1/4" | 5,80 | 8,00 | 14,00 | 22,00 | 0,50 | 64,00 | 4 | |||
| AM.HPC.08.18.08 …08.18.08 | 8,000 | — | 7,50 | 8,00 | 18,00 | 26,00 | 0,50 | 64,00 | 4 | |||
| AM.HPC.10.22.10 …10.22.10 | 10,000 | — | 9,50 | 10,00 | 22,00 | 32,00 | 0,50 | 73,00 | 4 | |||
| AM.HPC.12.26.12 …12.26.12 | 12,000 | — | 11,50 | 12,00 | 26,00 | 36,00 | 0,50 | 84,00 | 4 |
