ACTIONMILL INOX-Front-Chamfer
Deburring
Brand: ACTIONMILL

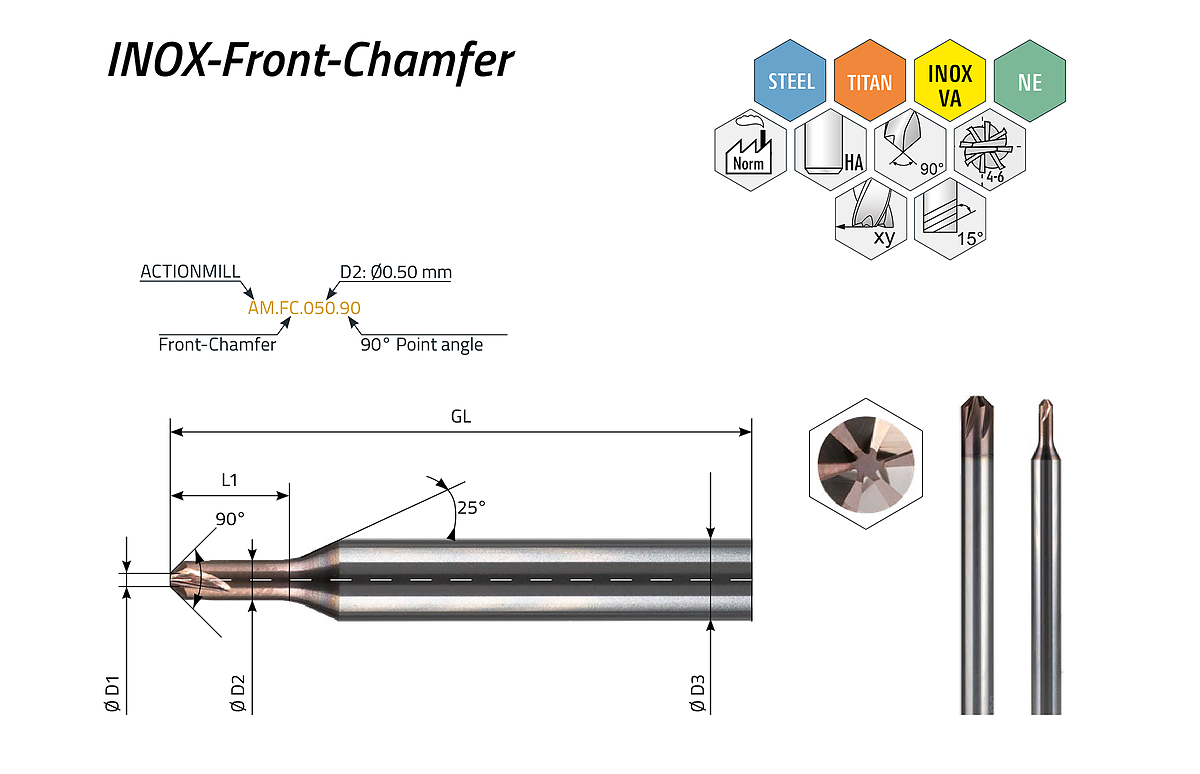

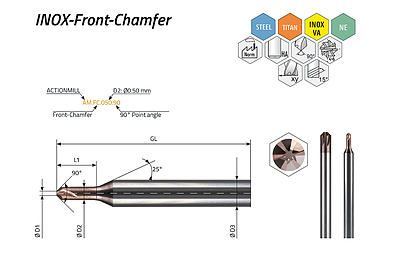

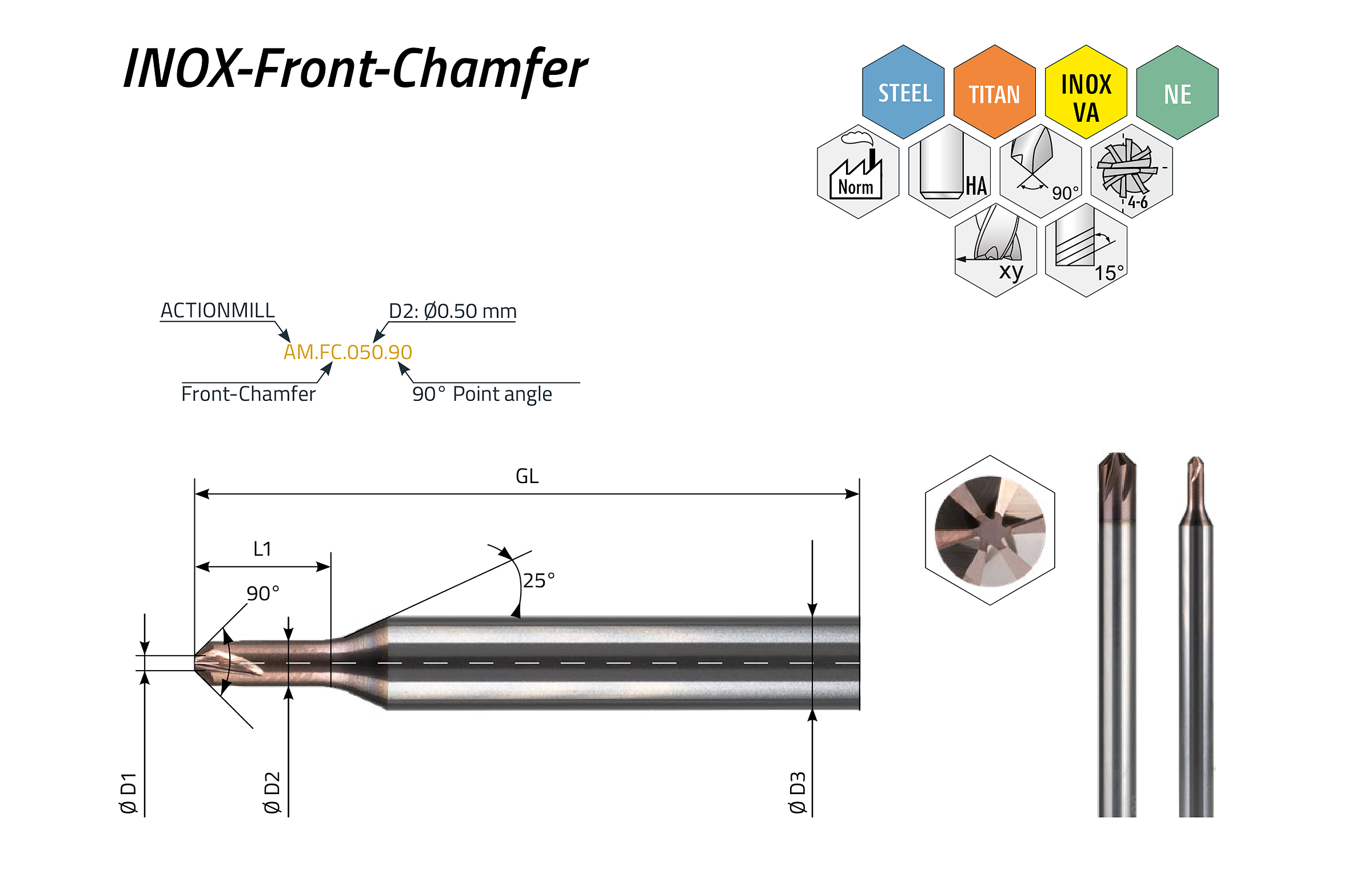

The ACTIONMILL INOX-Front-Chamfer is a 90° front-side chamfer mill from Ø 0.5 mm to Ø 8.0 mm for deburring and chamfering edges, slots, bores and threads. Four to six flutes enable high feed rates and good surface quality, while the α-INOXcronos coating prevents built-up edge. Available in short and long shank versions, the fine-grain carbide makes the tool suitable for a wide range of materials.
Short description
- Deburring and chamfering of edges, grooves, holes and threads
- Reinforced design for long service life
- 4 to 6 teeth deliver excellent surface quality
- Chromium-free coatings
Item variants
Items (7)
| Item number |
D1
(mm)
|
D2
(mm)
|
D3
(mm)
|
L1
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|
| AM.FC.050.90 …050.90 | 0,200 | 0,50 | 4,00 | 3,00 | 55,00 | 4 | |||
| AM.FC.100.90 …100.90 | 0,300 | 1,00 | 4,00 | 3,00 | 55,00 | 4 | |||
| AM.FC.200.90 …200.90 | 0,600 | 2,00 | 4,00 | 6,00 | 55,00 | 4 | |||
| AM.FC.300.90 …300.90 | 1,000 | 3,00 | 4,00 | 9,00 | 55,00 | 5 | |||
| AM.FC.400.90 …400.90 | 1,500 | 4,00 | 4,00 | — | 55,00 | 6 | |||
| AM.FC.600.90 …600.90 | 2,000 | 6,00 | 6,00 | — | 57,00 | 6 | |||
| AM.FC.800.90 …800.90 | 2,500 | 8,00 | 8,00 | — | 58,00 | 6 |
