ACTIONMILL INOX-CORD cooled
Milling
Brand: ACTIONMILL

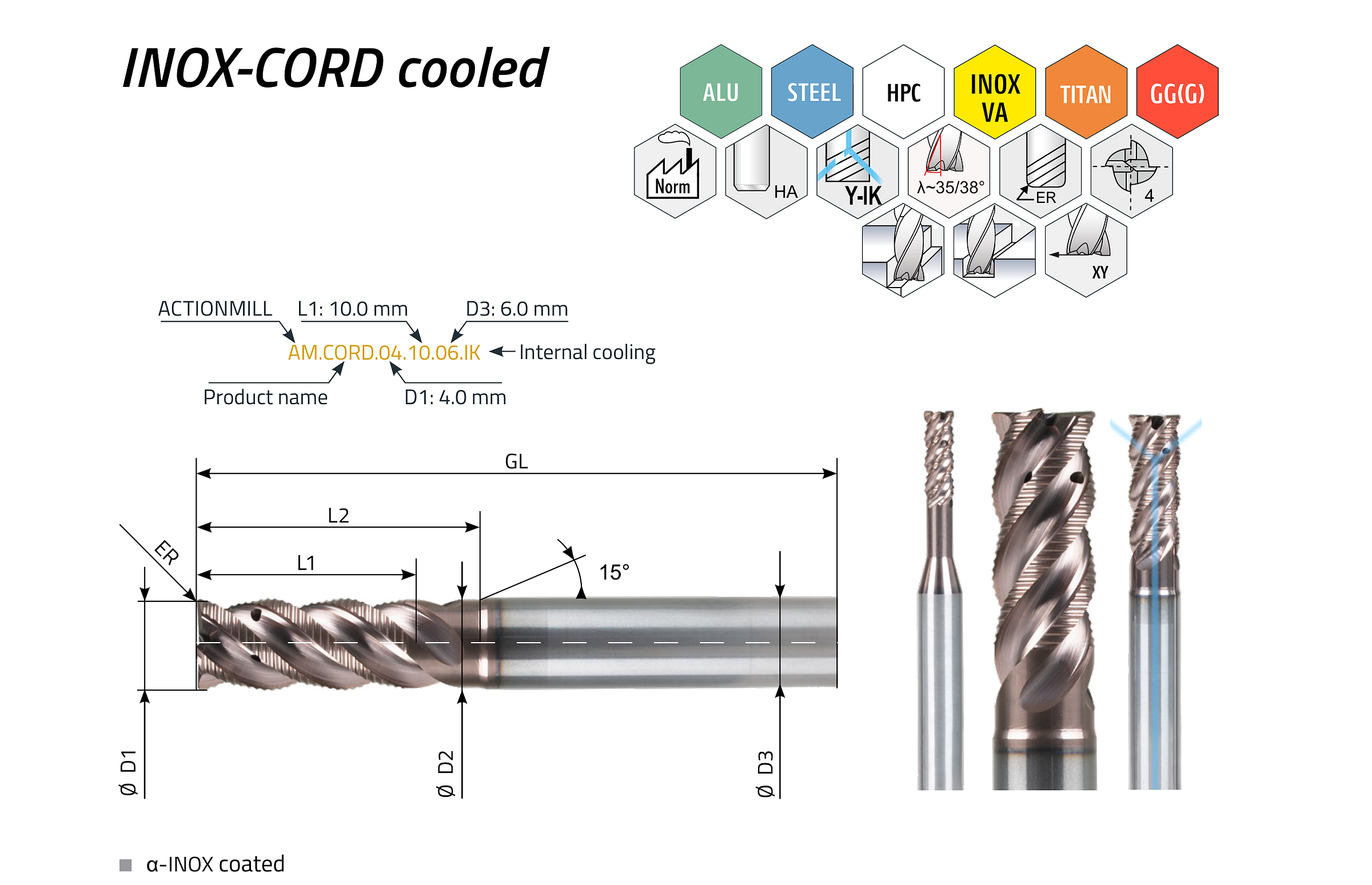

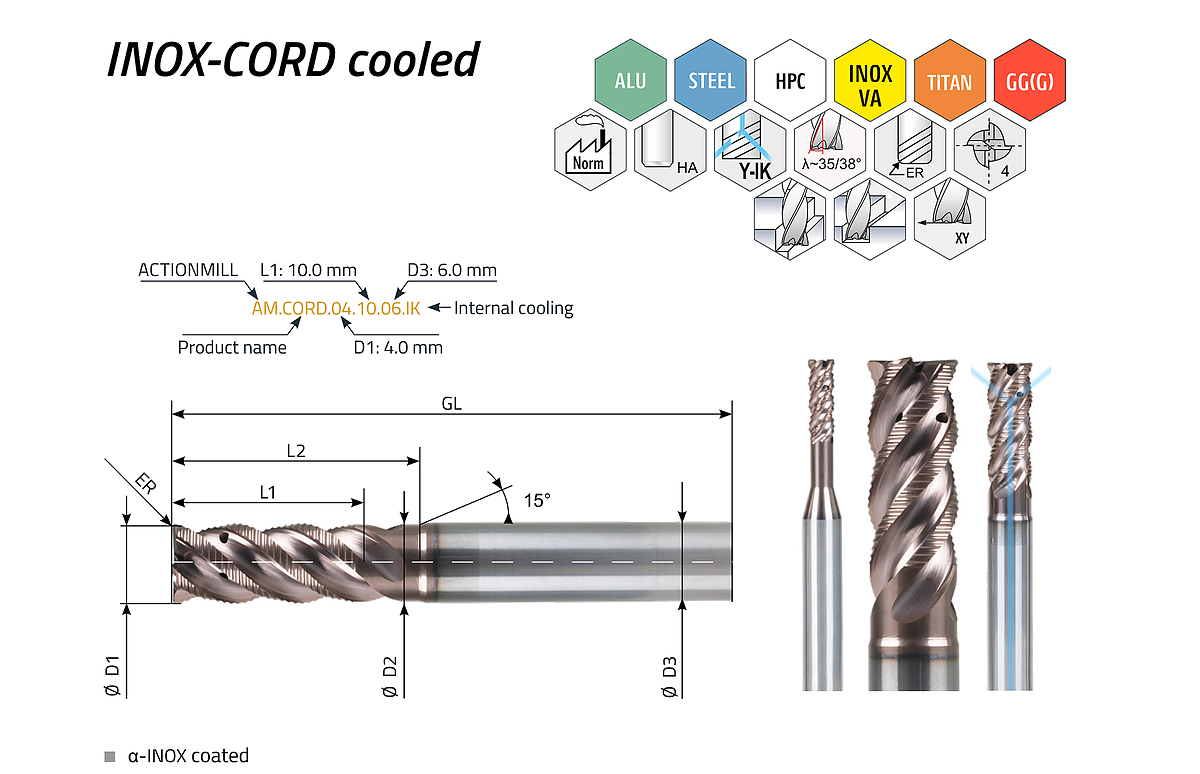

The ACTIONMILL INOX-CORD cooled is the corncob roughing mill with internal cooling: Y-shaped coolant outlets protect the tool from overheating when roughing stainless steel, CoCr and similar materials. Four flutes, the corner radius (ER 0.3 at Ø 4, ER 0.5 from Ø 6) and the α-INOX coating produce short chips, protect the cutting edge and deliver consistent tool life. Thermal-shock-resistant ultra-fine-grain carbide provides high fracture toughness even at elevated cutting parameters.
Short description
- High-performance cord cutter from Ø4.0 – Ø12.0 available with 4 teeth
- Shorter process times and high process reliability
- Roughing of demanding materials such as CoCr or INOX
- Integrated Y-coolant delivers high performance
Item variants
Items (10)
| Item number |
D1
(mm)
|
D1
(inch)
|
D2
(mm)
|
D3 h6
(mm)
|
L1
(mm)
|
L2
(mm)
|
ER
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AM.CORD.03968.10.06.IK …03968.10.06.IK | 3,968 | 5/32" | 3,40 | 6,00 | 10,00 | 18,00 | 0,30 | 58,00 | 4 | |||
| AM.CORD.04.10.06.IK …04.10.06.IK | 4,000 | — | 3,50 | 6,00 | 10,00 | 18,00 | 0,30 | 58,00 | 4 | |||
| AM.CORD.04762.14.06.IK …04762.14.06.IK | 4,762 | 3/16" | 4,20 | 6,00 | 14,00 | 20,00 | 0,30 | 58,00 | 4 | |||
| AM.CORD.05.14.06.IK …05.14.06.IK | 5,000 | — | 4,20 | 6,00 | 14,00 | 20,00 | 0,30 | 58,00 | 4 | |||
| AM.CORD.0556.14.06.IK …0556.14.06.IK | 5,556 | 7/32" | 5,00 | 6,00 | 14,00 | 22,00 | 0,50 | 58,00 | 4 | |||
| AM.CORD.06.14.06.IK …06.14.06.IK | 6,000 | — | 5,50 | 6,00 | 14,00 | 22,00 | 0,50 | 58,00 | 4 | |||
| AM.CORD.0635.14.08.IK …0635.14.08.IK | 6,350 | 1/4" | 5,80 | 8,00 | 14,00 | 22,00 | 0,50 | 64,00 | 4 | |||
| AM.CORD.08.18.08.IK …08.18.08.IK | 8,000 | — | 7,50 | 8,00 | 18,00 | 26,00 | 0,50 | 64,00 | 4 | |||
| AM.CORD.10.22.10.IK …10.22.10.IK | 10,000 | — | 9,50 | 10,00 | 22,00 | 32,00 | 0,50 | 73,00 | 4 | |||
| AM.CORD.12.26.12.IK …12.26.12.IK | 12,000 | — | 11,50 | 12,00 | 26,00 | 36,00 | 0,50 | 84,00 | 4 |
