ACTIONMILL INOX-Ball Z4
Milling
Brand: ACTIONMILL

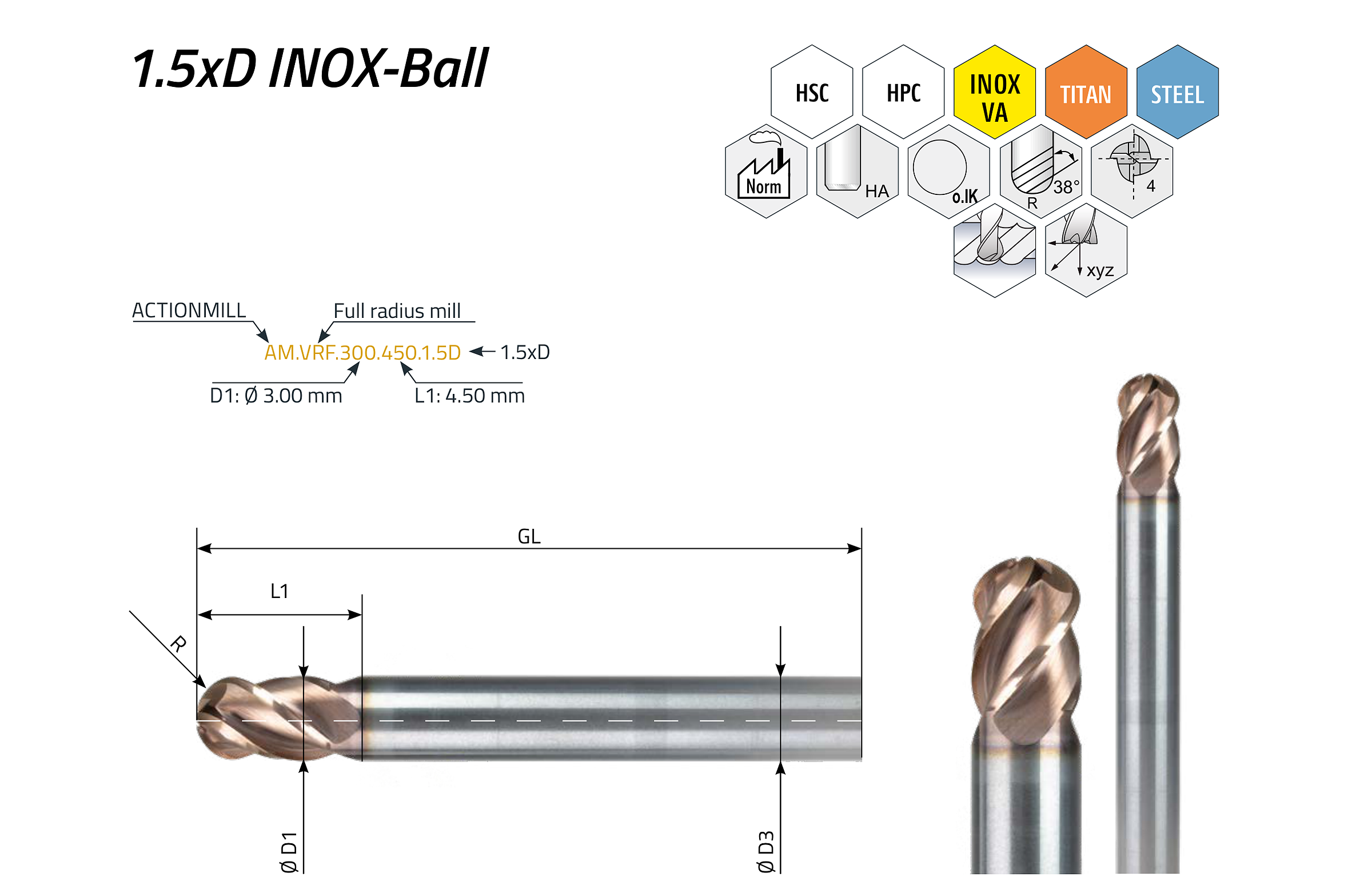

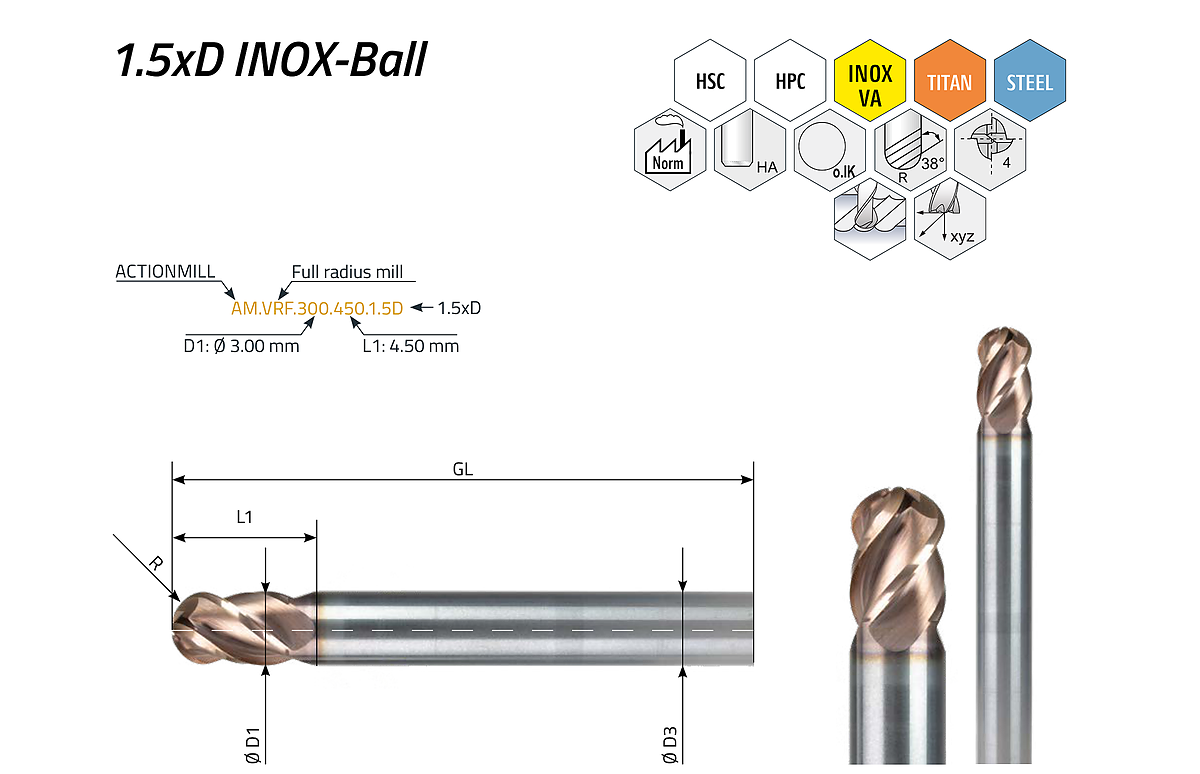

The ACTIONMILL INOX-Ball is a four-flute full-radius ball nose end mill from Ø 1 to Ø 8 mm for finishing and scanline milling of titanium and stainless steel alloys. Because the cutting edges run through center, almost any contour can be machined – including on 3-axis machines where tilting the tool is not possible. The INOX cutting geometry reduces cutting forces, the α-INOX coating prevents chip adhesion, and 1.5xD, 3xD and 5xD cutting-length versions cover a wide range of contour depths.
Short description
- Available from Ø1.0 – Ø8.0 with 4 teeth
- Shorter process times and high process reliability
- Very long tool life (cutting across center)
- Stable short variant
Item variants
Items (4)
| Item number |
D1
(mm)
|
D3 h5
(mm)
|
L1
(mm)
|
R
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|
| AM.VRF.300.450.1.5D …300.450.1.5D | 3,000 | 3,00 | 4,50 | 1,50 | 39,00 | 4 | |||
| AM.VRF.400.600.1.5D …400.600.1.5D | 4,000 | 4,00 | 6,00 | 2,00 | 51,00 | 4 | |||
| AM.VRF.600.900.1.5D …600.900.1.5D | 6,000 | 6,00 | 9,00 | 3,00 | 51,00 | 4 | |||
| AM.VRF.800.1200.1.5D …800.1200.1.5D | 8,000 | 8,00 | 12,00 | 4,00 | 59,00 | 4 |
