ACTIONMILL INOX-Ball cooled
Milling
Brand: ACTIONMILL
The ACTIONMILL INOX-Ball cooled is the variant of the four-flute full-radius ball nose end mill from Ø 1 to Ø 6 mm with integrated internal cooling channels that protect the tool from overheating when machining titanium alloys and stainless steels. The through-center Z4 geometry allows scanline machining of virtually any contour, including on 3-axis machines. Available with 3xD and 5xD cutting length, with α-INOX high-performance coating and a reinforced h5 shank.
Short description
- Available from Ø1.0 – Ø8.0 with 4 teeth
- Shorter process times and high process reliability
- Very long tool life (cutting across center)
- Integrated coolant prevents chip jams
Item variants
Items (19)

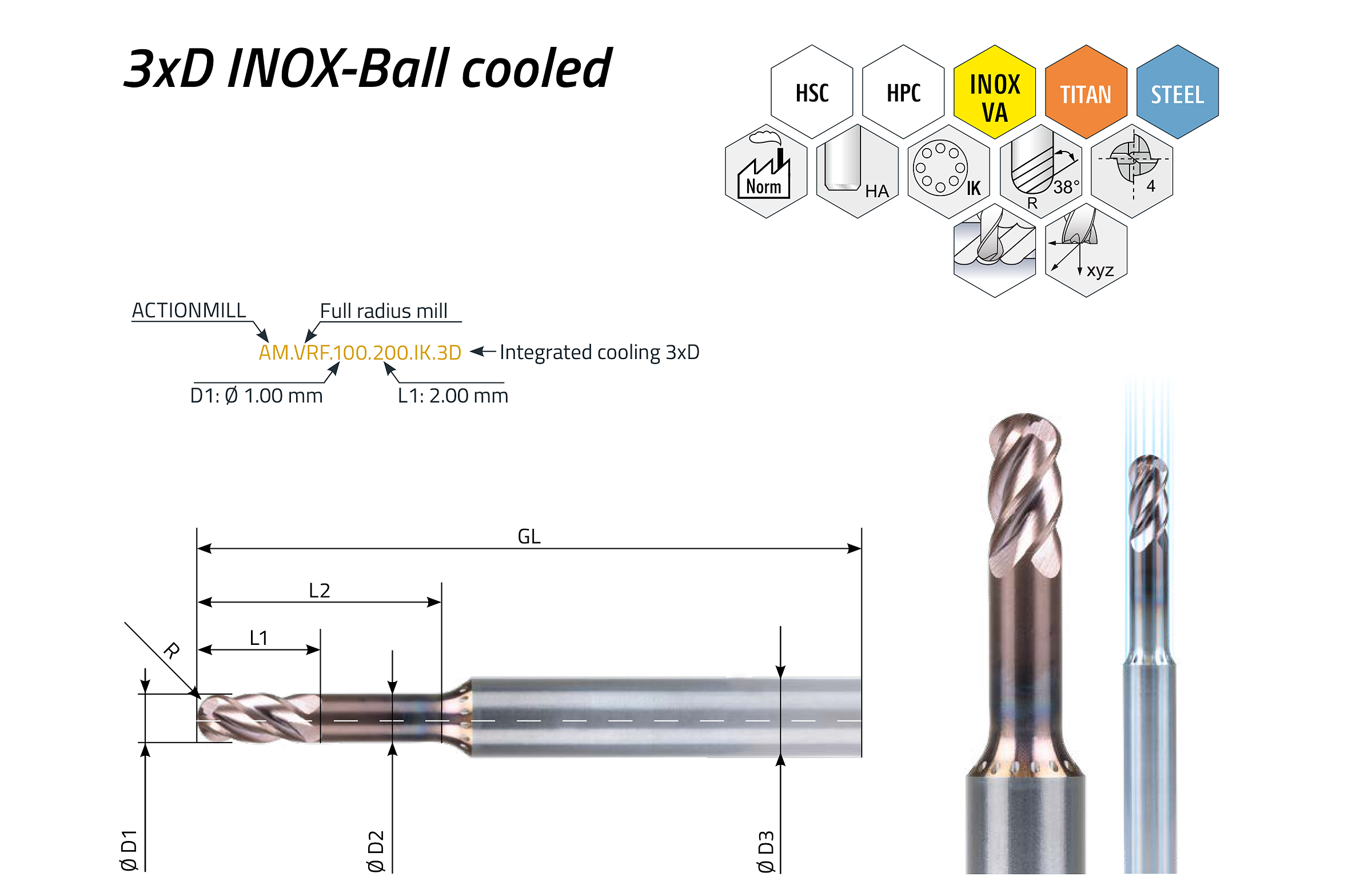

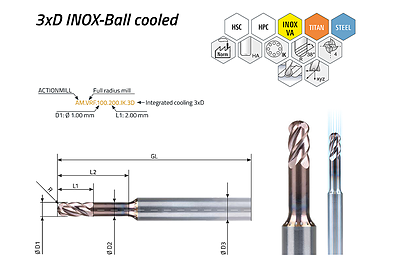

| Item number |
D1
(mm)
|
D1
(inch)
|
D2
(mm)
|
D3 h5
(mm)
|
L1
(mm)
|
L2
(mm)
|
R
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AM.VRF.100.200.IK.3D …100.200.IK.3D | 1,000 | — | 0,92 | 4,00 | 2,00 | 3,25 | 0,50 | 40,00 | 4 | |||
| AM.VRF.120.240.IK.3D …120.240.IK.3D | 1,200 | — | 1,10 | 4,00 | 2,40 | 3,85 | 0,60 | 40,00 | 4 | |||
| AM.VRF.150.300.IK.3D …150.300.IK.3D | 1,500 | — | 1,40 | 4,00 | 3,00 | 4,75 | 0,75 | 40,00 | 4 | |||
| AM.VRF.1587.3174.IK.3D …1587.3174.IK.3D | 1,587 | 1/16" | 1,48 | 4,00 | 3,20 | 5,05 | 0,79 | 40,00 | 4 | |||
| AM.VRF.180.360.IK.3D …180.360.IK.3D | 1,800 | — | 1,70 | 4,00 | 3,60 | 5,65 | 0,90 | 50,00 | 4 | |||
| AM.VRF.200.400.IK.3D …200.400.IK.3D | 2,000 | — | 1,90 | 4,00 | 4,00 | 6,25 | 1,00 | 50,00 | 4 | |||
| AM.VRF.2381.4762.IK.3D …2381.4762.IK.3D | 2,381 | 3/32" | 2,28 | 6,00 | 4,80 | 7,45 | 1,20 | 60,00 | 4 | |||
| AM.VRF.250.500.IK.3D …250.500.IK.3D | 2,500 | — | 2,40 | 6,00 | 5,00 | 7,75 | 1,25 | 60,00 | 4 | |||
| AM.VRF.300.600.IK.3D …300.600.IK.3D | 3,000 | — | 2,90 | 6,00 | 6,00 | 9,25 | 1,50 | 60,00 | 4 | |||
| AM.VRF.3175.6350.IK.3D …3175.6350.IK.3D | 3,175 | 1/8" | 3,05 | 6,00 | 6,40 | 9,75 | 1,59 | 60,00 | 4 | |||
| AM.VRF.3968.7936.IK.3D …3968.7936.IK.3D | 3,968 | 5/32" | 3,85 | 6,00 | 8,00 | 12,25 | 1,98 | 60,00 | 4 | |||
| AM.VRF.400.800.IK.3D …400.800.IK.3D | 4,000 | — | 3,90 | 6,00 | 8,00 | 12,25 | 2,00 | 60,00 | 4 | |||
| AM.VRF.4762.9524.IK.3D …4762.9524.IK.3D | 4,762 | 3/16" | 4,65 | 8,00 | 9,60 | 14,65 | 2,38 | 68,00 | 4 | |||
| AM.VRF.500.1000.IK.3D …500.1000.IK.3D | 5,000 | — | 4,90 | 8,00 | 10,00 | 15,25 | 2,50 | 68,00 | 4 | |||
| AM.VRF.5556.11112.IK.3D …5556.11112.IK.3D | 5,556 | 7/32" | 5,45 | 8,00 | 11,20 | 17,05 | 2,78 | 68,00 | 4 | |||
| AM.VRF.600.1200.IK.3D …600.1200.IK.3D | 6,000 | — | 5,90 | 8,00 | 12,00 | 18,05 | 3,00 | 68,00 | 4 | |||
| AM.VRF.635.1270.IK.3D …635.1270.IK.3D | 6,350 | 1/4" | 6,25 | 10,00 | 12,70 | 19,30 | 3,18 | 84,00 | 4 | |||
| AM.VRF.700.1400.IK.3D …700.1400.IK.3D | 7,000 | — | 6,90 | 10,00 | 14,00 | 21,00 | 3,50 | 93,00 | 4 | |||
| AM.VRF.800.1600.IK.3D …800.1600.IK.3D | 8,000 | — | 7,90 | 10,00 | 16,00 | 24,00 | 4,00 | 93,00 | 4 |
