ACTIONMILL INOX-Groover cooled
Milling
Brand: ACTIONMILL

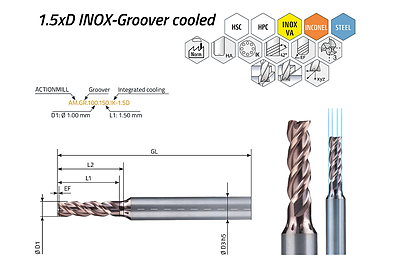

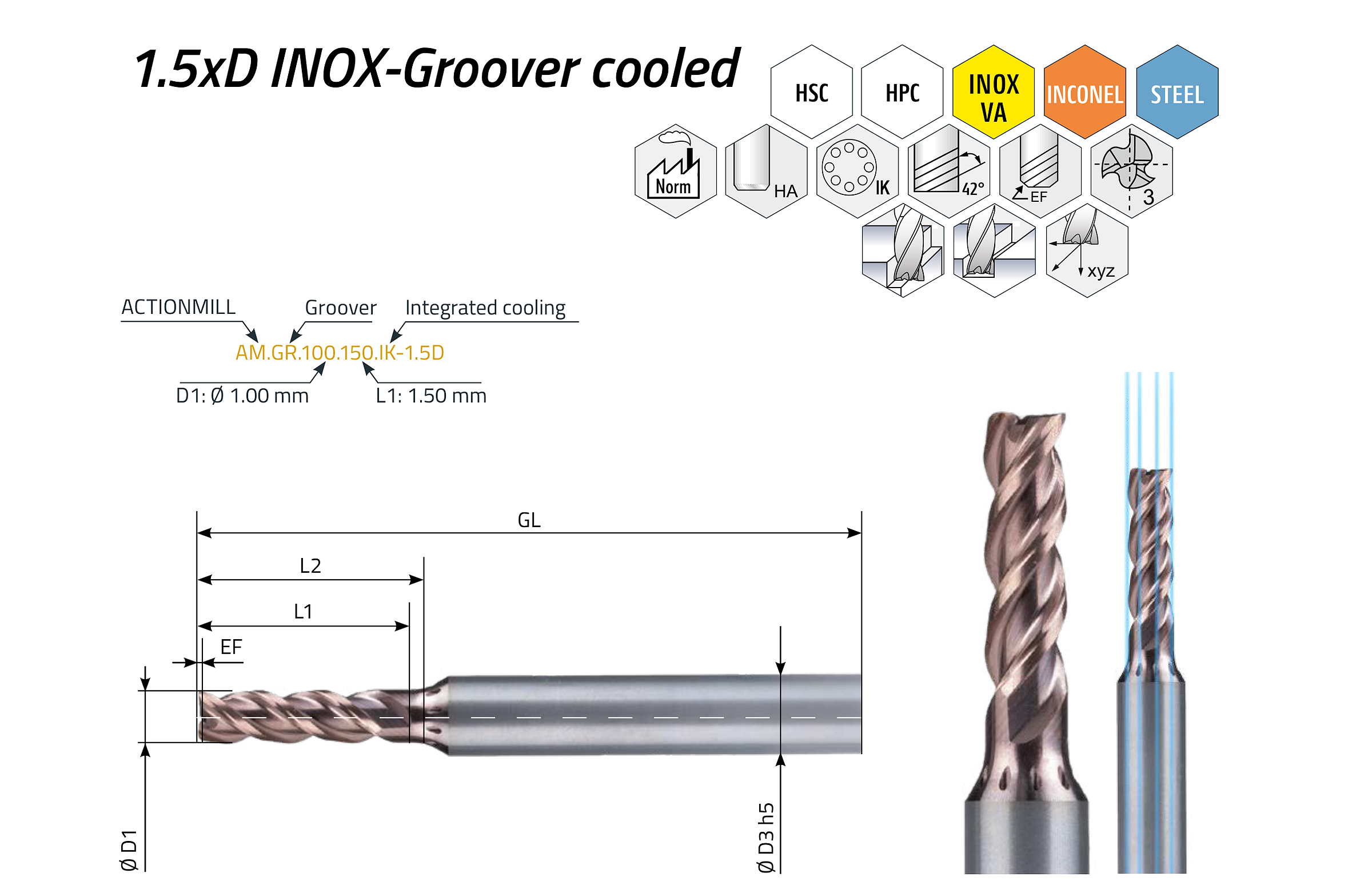

The ACTIONMILL INOX-Groover cooled is the variant of the three-flute 3D plunge and ramping cutter (Ø 0.7 to Ø 8 mm) with multiple internal cooling channels through the shank that deliver coolant around the full tool circumference into the cutting zone, protecting the tool from overheating when machining titanium alloys and stainless steels. Vertical plunging, ramping up to 70°, roughing and finishing are all covered by a single tool, available with 1.5xD and 3xD cutting length. The α-INOX high-performance coating prevents chip adhesion and supports long tool life in tough, corrosion-resistant alloys.
Short description
- Plunging, ramping (70°) or vertical (90°) drilling possible
- Roughing and finishing with just one tool
- Integrated coolant
- Chromium-free coatings
Item variants
Items (26)
| Item number |
D1
(mm)
|
D1
(inch)
|
D3 h5
(mm)
|
L1
(mm)
|
L2
(mm)
|
EF (45°)
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| AM.GR.070.100.IK-1.5D …070.100.IK-1.5D | 0,700 | — | 4,00 | 1,00 | 1,80 | 0,02 | 40,00 | 3 | |||
| AM.GR.080.120.IK-1.5D …080.120.IK-1.5D | 0,800 | — | 4,00 | 1,20 | 2,00 | 0,02 | 40,00 | 3 | |||
| AM.GR.090.130.IK-1.5D …090.130.IK-1.5D | 0,900 | — | 4,00 | 1,30 | 2,30 | 0,02 | 40,00 | 3 | |||
| AM.GR.100.150.IK-1.5D …100.150.IK-1.5D | 1,000 | — | 4,00 | 1,50 | 2,50 | 0,03 | 40,00 | 3 | |||
| AM.GR.120.180.IK-1.5D …120.180.IK-1.5D | 1,200 | — | 4,00 | 1,80 | 3,00 | 0,03 | 40,00 | 3 | |||
| AM.GR.150.220.IK-1.5D …150.220.IK-1.5D | 1,500 | — | 4,00 | 2,20 | 3,30 | 0,03 | 40,00 | 3 | |||
| AM.GR.1587.240.IK-1.5D …1587.240.IK-1.5D | 1,587 | 1/16" | 4,00 | 2,40 | 3,40 | 0,03 | 40,00 | 3 | |||
| AM.GR.180.270.IK-1.5D …180.270.IK-1.5D | 1,800 | — | 4,00 | 2,70 | 3,70 | 0,03 | 50,00 | 3 | |||
| AM.GR.200.300.IK-1.5D …200.300.IK-1.5D | 2,000 | — | 4,00 | 3,00 | 4,00 | 0,03 | 50,00 | 3 | |||
| AM.GR.220.330.IK-1.5D …220.330.IK-1.5D | 2,200 | — | 4,00 | 3,30 | 4,30 | 0,03 | 50,00 | 3 | |||
| AM.GR.2381.360.IK-1.5D …2381.360.IK-1.5D | 2,381 | 3/32" | 4,00 | 3,60 | 4,60 | 0,05 | 50,00 | 3 | |||
| AM.GR.250.370.IK-1.5D …250.370.IK-1.5D | 2,500 | — | 6,00 | 3,70 | 4,80 | 0,05 | 50,00 | 3 | |||
| AM.GR.280.420.IK-1.5D …280.420.IK-1.5D | 2,800 | — | 6,00 | 4,20 | 5,20 | 0,05 | 50,00 | 3 | |||
| AM.GR.300.450.IK-1.5D …300.450.IK-1.5D | 3,000 | — | 6,00 | 4,50 | 5,50 | 0,05 | 50,00 | 3 | |||
| AM.GR.3175.480.IK-1.5D …3175.480.IK-1.5D | 3,175 | 1/8" | 6,00 | 4,80 | 5,80 | 0,05 | 50,00 | 3 | |||
| AM.GR.350.520.IK-1.5D …350.520.IK-1.5D | 3,500 | — | 6,00 | 5,20 | 6,30 | 0,05 | 50,00 | 3 | |||
| AM.GR.370.550.IK-1.5D …370.550.IK-1.5D | 3,700 | — | 6,00 | 5,50 | 6,60 | 0,05 | 50,00 | 3 | |||
| AM.GR.3968.600.IK-1.5D …3968.600.IK-1.5D | 3,968 | 5/32" | 6,00 | 6,00 | 6,90 | 0,05 | 50,00 | 3 | |||
| AM.GR.400.600.IK-1.5D …400.600.IK-1.5D | 4,000 | — | 6,00 | 6,00 | 6,90 | 0,05 | 50,00 | 3 | |||
| AM.GR.430.650.IK-1.5D …430.650.IK-1.5D | 4,300 | — | 8,00 | 6,50 | 7,40 | 0,05 | 68,00 | 3 | |||
| AM.GR.4762.710.IK-1.5D …4762.710.IK-1.5D | 4,762 | 3/16" | 8,00 | 7,10 | 8,20 | 0,05 | 68,00 | 3 | |||
| AM.GR.500.750.IK-1.5D …500.750.IK-1.5D | 5,000 | — | 8,00 | 7,50 | 8,50 | 0,05 | 68,00 | 3 | |||
| AM.GR.5556.830.IK-1.5D …5556.830.IK-1.5D | 5,556 | 7/32" | 8,00 | 8,30 | 9,40 | 0,05 | 68,00 | 3 | |||
| AM.GR.600.900.IK-1.5D …600.900.IK-1.5D | 6,000 | — | 8,00 | 9,00 | 10,00 | 0,05 | 68,00 | 3 | |||
| AM.GR.6350.900.IK-1.5D …6350.900.IK-1.5D | 6,350 | 1/4" | 10,00 | 9,00 | 10,00 | 0,05 | 84,00 | 3 | |||
| AM.GR.800.1200.IK-1.5D …800.1200.IK-1.5D | 8,000 | — | 10,00 | 12,00 | 13,00 | 0,05 | 84,00 | 3 |
