ACTIONMILL GRIZZLY Groover
Milling
Brand: ACTIONMILL
The ACTIONMILL GRIZZLY Groover is a versatile HPC end mill from Ø 4 to Ø 16 mm with 2.5xD cutting length and a 10 mm clearance section for working around interfering contours. A protected corner radius, cylindrical core profile and vibration-damped edge preparation to the HB microtec standard allow both roughing and finishing of demanding materials such as CoCr or INOX. The HB shank improves torque transfer; an IK variant with internal cooling is available.
Short description
- High-performance HPC cutter from Ø4.0 – Ø16.0 available with 4 teeth
- Shorter process times and high process reliability
- Roughing & finishing of demanding materials such as CoCr or INOX
- Universally applicable
Items (8)

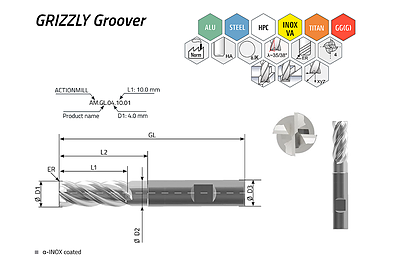

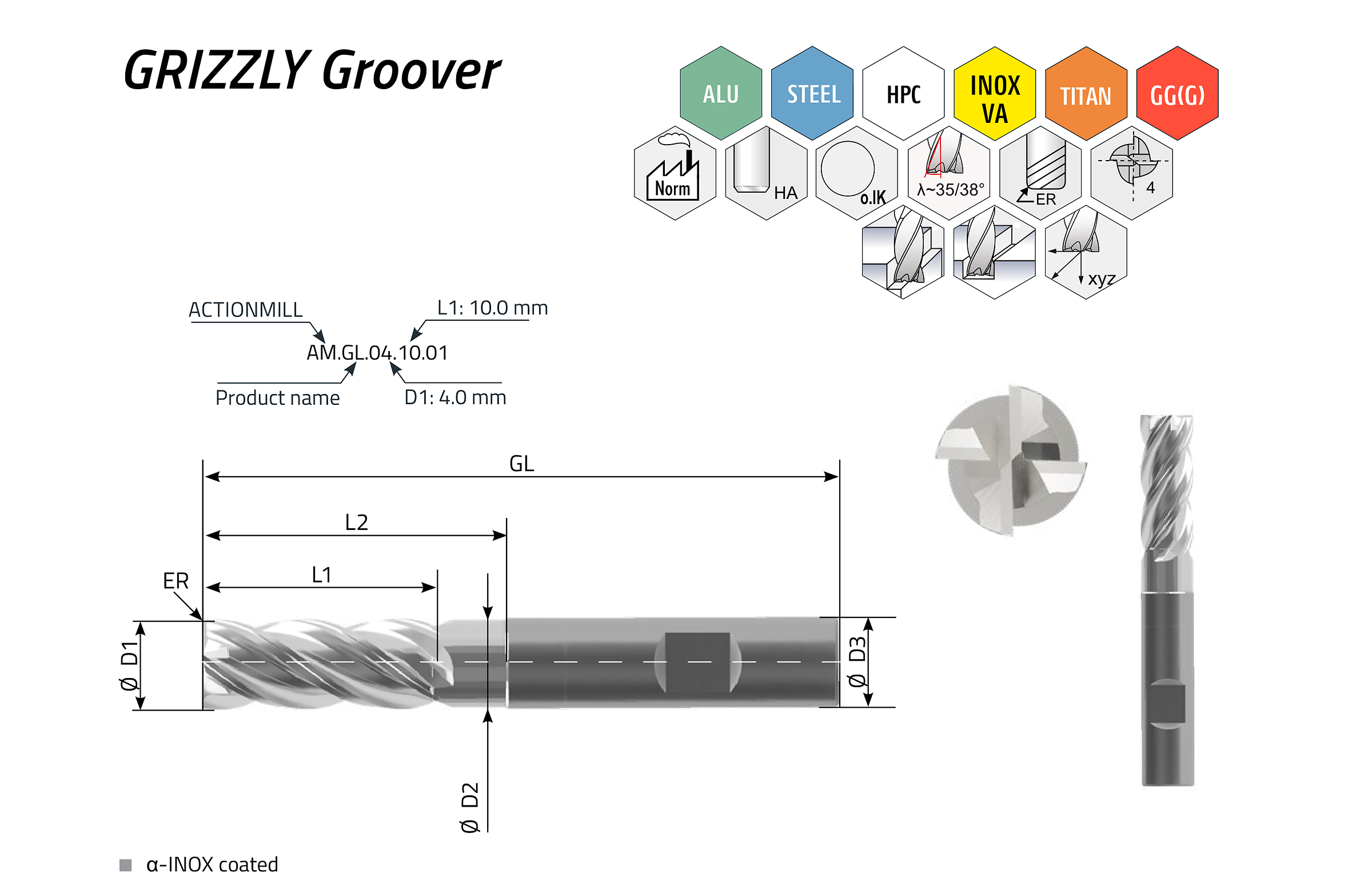

| Item number |
D1
(mm)
|
D2
(mm)
|
D3 h6
(mm)
|
L1
(mm)
|
L2
(mm)
|
ER
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| AM.GL.04.10.01 …04.10.01 | 4,000 | 3,70 | 6,00 | 10,00 | 20,00 | 0,08 | 58,00 | 4 | |||
| AM.GL.05.13.01 …05.13.01 | 5,000 | 4,70 | 6,00 | 13,00 | 23,00 | 0,08 | 58,00 | 4 | |||
| AM.GL.06.15.01 …06.15.01 | 6,000 | 5,70 | 6,00 | 15,00 | 25,00 | 0,10 | 58,00 | 4 | |||
| AM.GL.08.20.01 …08.20.01 | 8,000 | 7,70 | 8,00 | 20,00 | 30,00 | 0,10 | 64,00 | 4 | |||
| AM.GL.10.25.01 …10.25.01 | 10,000 | 9,70 | 10,00 | 25,00 | 35,00 | 0,15 | 73,00 | 4 | |||
| AM.GL.12.30.01 …12.30.01 | 12,000 | 11,70 | 12,00 | 30,00 | 40,00 | 0,15 | 84,00 | 4 | |||
| AM.GL.14.35.01 …14.35.01 | 14,000 | 13,70 | 14,00 | 35,00 | 45,00 | 0,25 | 93,00 | 4 | |||
| AM.GL.16.40.01 …16.40.01 | 16,000 | 15,70 | 16,00 | 40,00 | 50,00 | 0,25 | 93,00 | 4 |
