ACTIONMILL Double-Chamfer
Deburring
Brand: ACTIONMILL

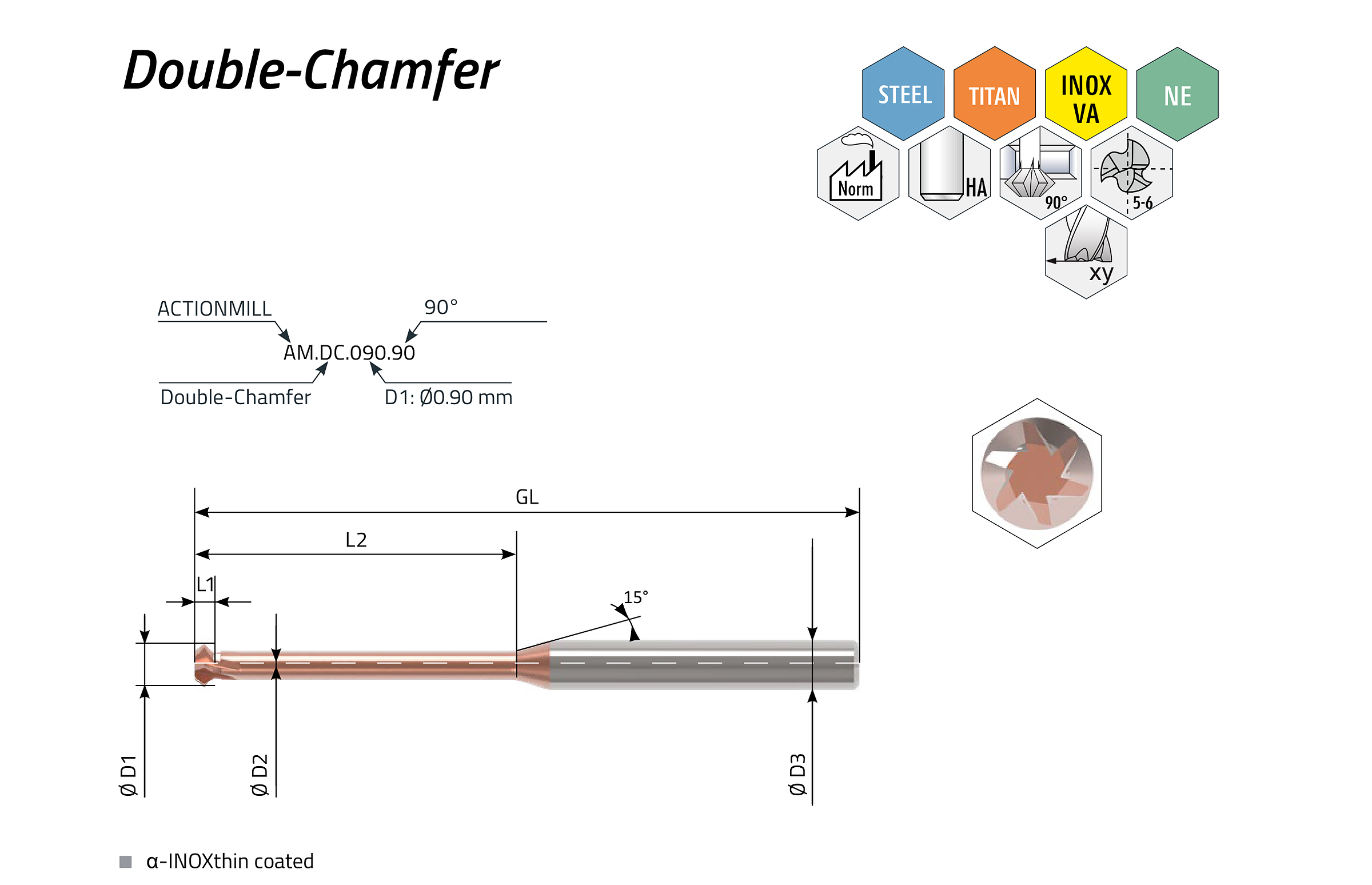

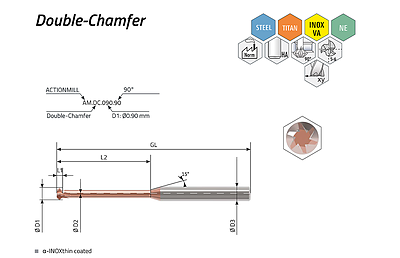

The Double-Chamfer is a 90° deburring mill for forward and back chamfering of bores in the Ø 0.90 to Ø 5.70 mm range. Five to six fine-grain carbide teeth allow high feed rates and produce no secondary burrs; the α-INOXthin coating ensures long tool life and prevents built-up edge. A single tool for two-sided chamfering in one operation, usable across the common material groups.
Short description
- From Ø0.9 mm to Ø5.7 mm with 90°
- Very high application versatility and flexibility
- 5 to 6 teeth (cutting edges) enable high feed rates
- Chromium-free coatings
Items (8)
| Item number |
D1
(mm)
|
D2
(mm)
|
D3 h6
(mm)
|
L1
(mm)
|
L2
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|
| AM.DC.090.90 …090.90 | 0,900 | 0,54 | 3,00 | 0,36 | 8,00 | 60,00 | 5 | |||
| AM.DC.140.90 …140.90 | 1,400 | 0,84 | 3,00 | 0,56 | 10,00 | 60,00 | 5 | |||
| AM.DC.180.90 …180.90 | 1,800 | 1,08 | 4,00 | 0,72 | 12,00 | 60,00 | 5 | |||
| AM.DC.220.90 …220.90 | 2,200 | 1,48 | 4,00 | 0,72 | 14,00 | 60,00 | 5 | |||
| AM.DC.280.90 …280.90 | 2,800 | 1,68 | 4,00 | 1,12 | 18,00 | 60,00 | 5 | |||
| AM.DC.370.90 …370.90 | 3,700 | 2,22 | 4,00 | 1,48 | 24,00 | 70,00 | 5 | |||
| AM.DC.470.90 …470.90 | 4,700 | 2,82 | 6,00 | 1,88 | 30,00 | 80,00 | 5 | |||
| AM.DC.570.90 …570.90 | 5,700 | 3,42 | 6,00 | 2,28 | 36,00 | 80,00 | 6 |
