ACTIONMILL Back-Chamfer
Deburring
Brand: ACTIONMILL
The Back-Chamfer is a 90° micro back-deburring tool for bores from Ø 0.4 mm and removes burrs on workpieces in the Ø 0.36 to Ø 5.7 mm range without producing secondary burrs. Three to six teeth in fine-grain carbide allow high feed rates and good surface quality, while the α-INOX coating prevents built-up edge. Suitable across a wide material range including steel, stainless steel, cast iron, non-ferrous metals and heat-resistant alloys.
Short description
- From Ø0.36 mm to Ø5.7 mm with 90°
- Backward-deburring tool for holes from Ø 0.4 mm
- 3 to 6 teeth (cutting edges) enable high feed rates
- Chromium-free coatings
Item variants
Items (11)

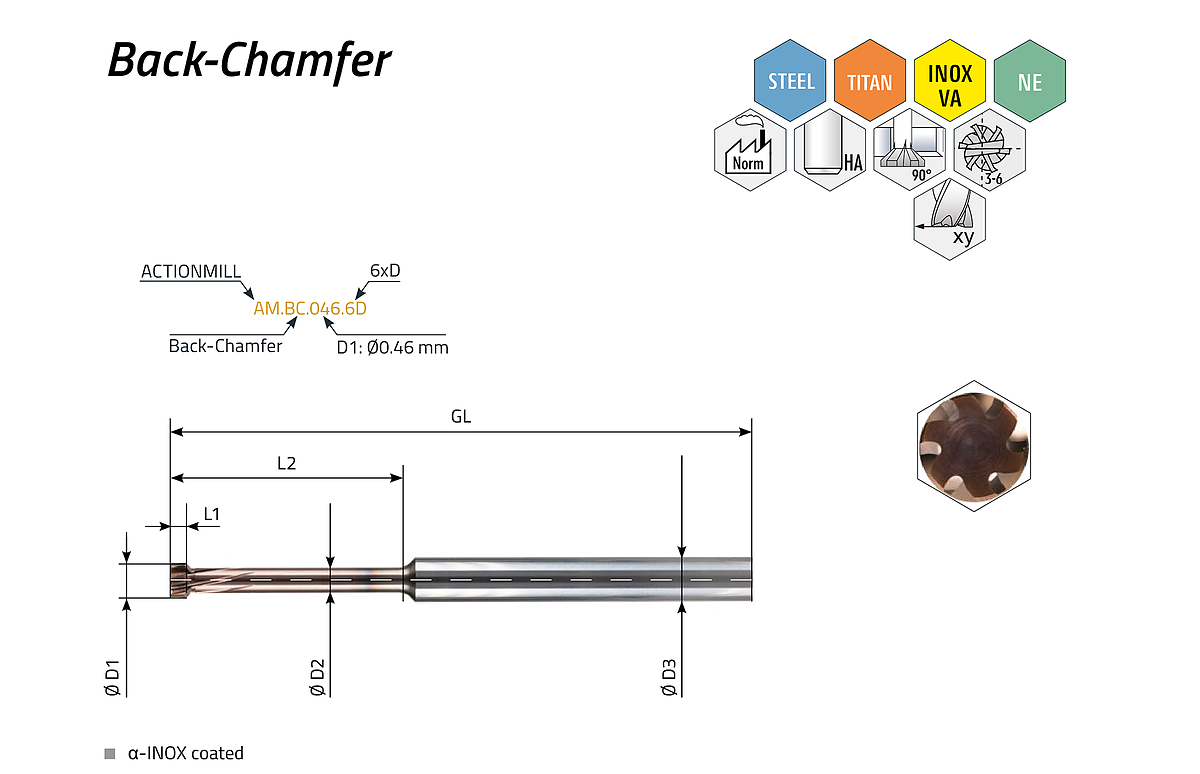

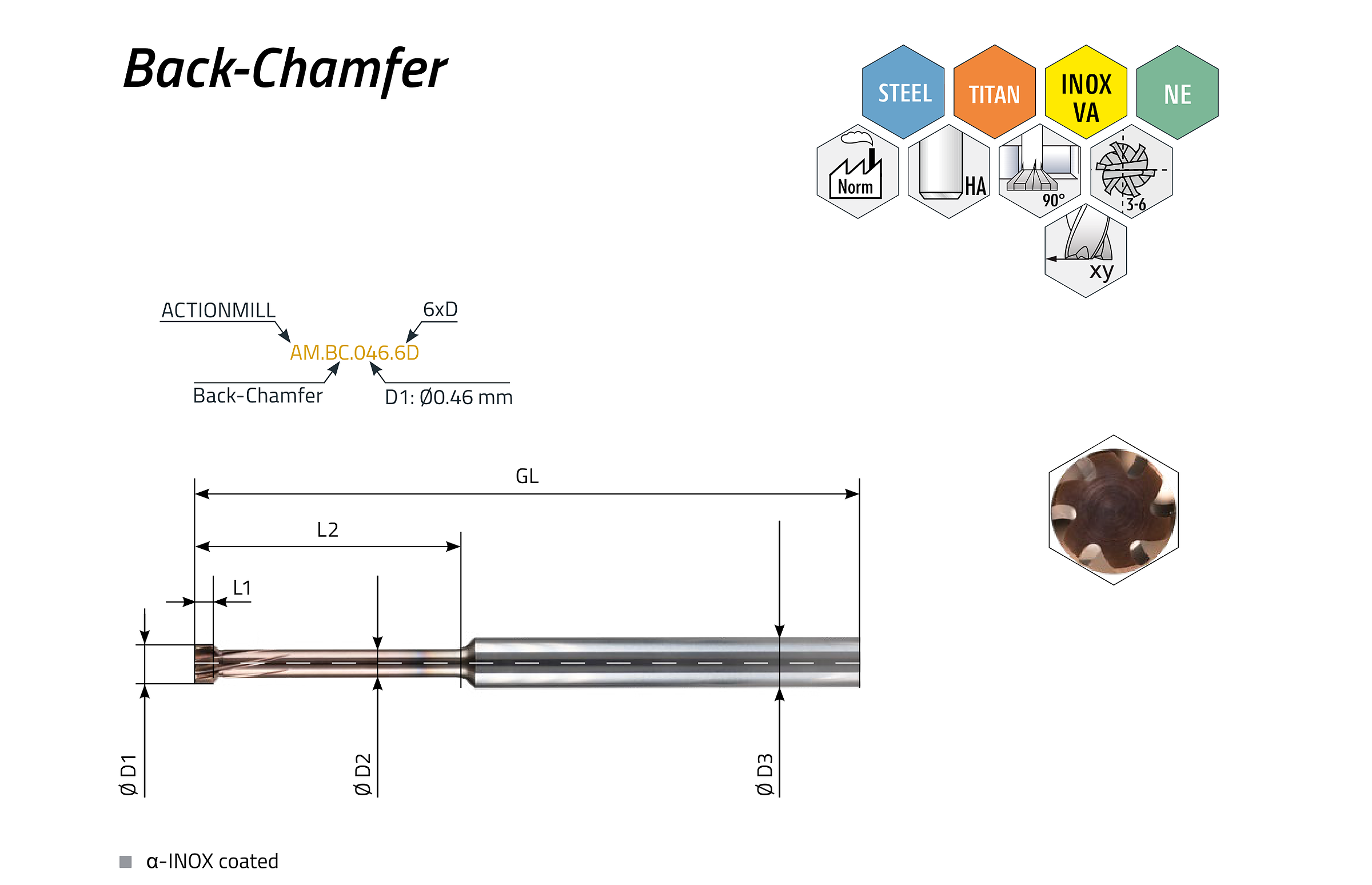

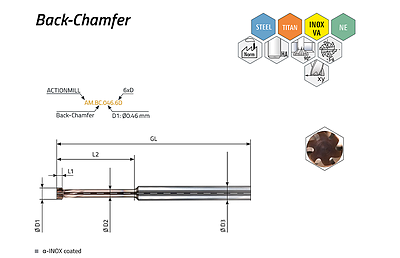

| Item number |
D1
(mm)
|
D2
(mm)
|
D3
(mm)
|
L1
(mm)
|
L2
(mm)
|
EF
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| AM.BC.036.4D …036.4D | 0,360 | 0,22 | 3,00 | 0,20 | 2,00 | 0,07 | 50,00 | 3 | |||
| AM.BC.046.4D …046.4D | 0,460 | 0,30 | 3,00 | 0,25 | 2,50 | 0,08 | 50,00 | 3 | |||
| AM.BC.065.4D …065.4D | 0,650 | 0,40 | 3,00 | 0,35 | 3,50 | 0,13 | 50,00 | 4 | |||
| AM.BC.090.4D …090.4D | 0,900 | 0,60 | 4,00 | 0,50 | 5,00 | 0,15 | 60,00 | 5 | |||
| AM.BC.140.4D …140.4D | 1,400 | 0,95 | 4,00 | 0,90 | 7,50 | 0,23 | 60,00 | 5 | |||
| AM.BC.190.4D …190.4D | 1,900 | 1,40 | 4,00 | 1,00 | 10,00 | 0,25 | 70,00 | 5 | |||
| AM.BC.220.4D …220.4D | 2,200 | 1,60 | 4,00 | 1,20 | 12,50 | 0,30 | 70,00 | 5 | |||
| AM.BC.290.4D …290.4D | 2,900 | 2,10 | 4,00 | 1,50 | 15,00 | 0,40 | 80,00 | 5 | |||
| AM.BC.370.4D …370.4D | 3,700 | 2,70 | 4,00 | 2,00 | 20,00 | 0,50 | 80,00 | 6 | |||
| AM.BC.470.4D …470.4D | 4,700 | 3,30 | 6,00 | 2,00 | 25,00 | 0,70 | 90,00 | 6 | |||
| AM.BC.570.4D …570.4D | 5,700 | 4,00 | 6,00 | 2,00 | 30,00 | 0,85 | 90,00 | 6 |
