ACTIONDRILL Intern Starlobe
Drilling
Brand: ACTIONDRILL

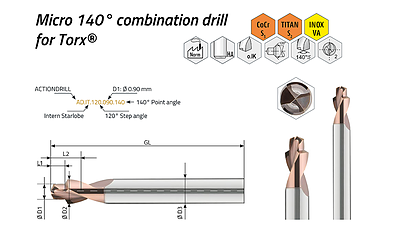

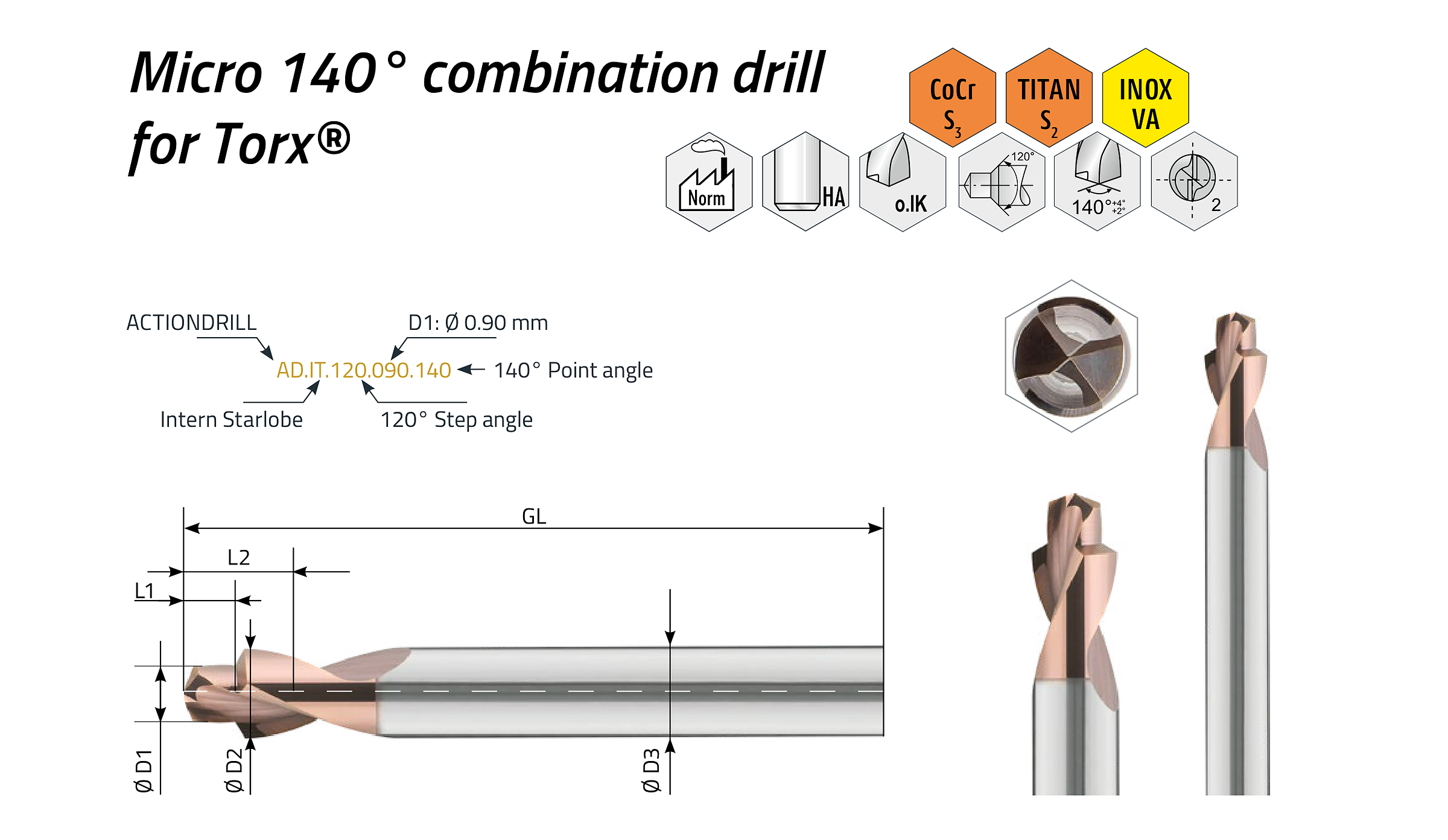

The Intern Starlobe is a micro combination drill for pre-machining internal Torx® sockets from T4 to T30, combining centering, drilling and 120° chamfering in a single tool. Available with 140°, 170° or 180° point angle; where the geometry allows, the 170° version drills up to four times faster than the 180° variant. The chrome-free α-INOX coating avoids cross-contamination on medical parts and keeps burr formation to a minimum.
Short description
- Combination tool: centering + drilling + 120° chamfering
- For pre-drilling Torx® types from T4 to T30
- Shorter process times and high process reliability
- Chromium-free coatings
Item variants
Items (15)
| Item number |
D1
(mm)
|
D2
(mm)
|
D3 h5
(mm)
|
L1
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|
| AD.IT.4.090.056.140 …4.090.056.140 | 0,900 | 1,70 | 3,00 | 0,56 | 40,00 | 2 | |||
| AD.IT.5.100.059.140 …5.100.059.140 | 1,000 | 2,00 | 3,00 | 0,59 | 40,00 | 2 | |||
| AD.IT.5.100.072.140 …5.100.072.140 | 1,000 | 2,00 | 3,00 | 0,72 | 40,00 | 2 | |||
| AD.IT.6.120.067.140 …6.120.067.140 | 1,200 | 2,20 | 3,00 | 0,67 | 40,00 | 2 | |||
| AD.IT.6.120.088.140 …6.120.088.140 | 1,200 | 2,20 | 3,00 | 0,88 | 40,00 | 2 | |||
| AD.IT.7.140.079.140 …7.140.079.140 | 1,400 | 3,00 | 3,00 | 0,79 | 40,00 | 2 | |||
| AD.IT.7.140.083.140 …7.140.083.140 | 1,400 | 3,00 | 3,00 | 0,83 | 40,00 | 2 | |||
| AD.IT.8.160.081.140 …8.160.081.140 | 1,600 | 3,00 | 3,00 | 0,81 | 40,00 | 2 | |||
| AD.IT.8.160.115.140 …8.160.115.140 | 1,600 | 3,00 | 3,00 | 1,15 | 40,00 | 2 | |||
| AD.IT.10.190.113.140 …10.190.113.140 | 1,900 | 4,00 | 4,00 | 1,13 | 50,00 | 2 | |||
| AD.IT.15.230.142.140 …15.230.142.140 | 2,300 | 4,00 | 4,00 | 1,42 | 50,00 | 2 | |||
| AD.IT.20.270.170.140 …20.270.170.140 | 2,700 | 5,00 | 6,00 | 1,70 | 50,00 | 2 | |||
| AD.IT.25.310.236.140 …25.310.236.140 | 3,100 | 6,00 | 6,00 | 2,36 | 50,00 | 2 | |||
| AD.IT.30.380.245.140 …30.380.245.140 | 3,800 | 6,00 | 6,00 | 2,45 | 50,00 | 2 | |||
| AD.IT.30.380.293.140 …30.380.293.140 | 3,800 | 6,00 | 6,00 | 2,93 | 50,00 | 2 |
