ACTIONDRILL INOX-6xD to 18xD cooled
Drilling
Brand: ACTIONDRILL
The INOX-xD range with internal cooling covers micro deep-hole drills in 6xD, 8xD, 12xD and 18xD lengths, all with a self-centering 140° α-INOX point geometry. Internal coolant channels protect the tool from overheating and flush long chips out of the hole without retraction, in 0.05 mm steps from Ø 0.25 / Ø 0.3 up to Ø 2.381 mm. Matched to the INOX-3xD-Pilot cooled for a continuous deep-hole machining process in stainless steels, titanium and CrCo alloys.
Short description
- Ø0.3 mm to Ø2.9 mm
- With integrated coolant
- Long chips are flushed away through the integrated coolant channels without emptying
- Chromium-free coatings
Item variants
Items (55)

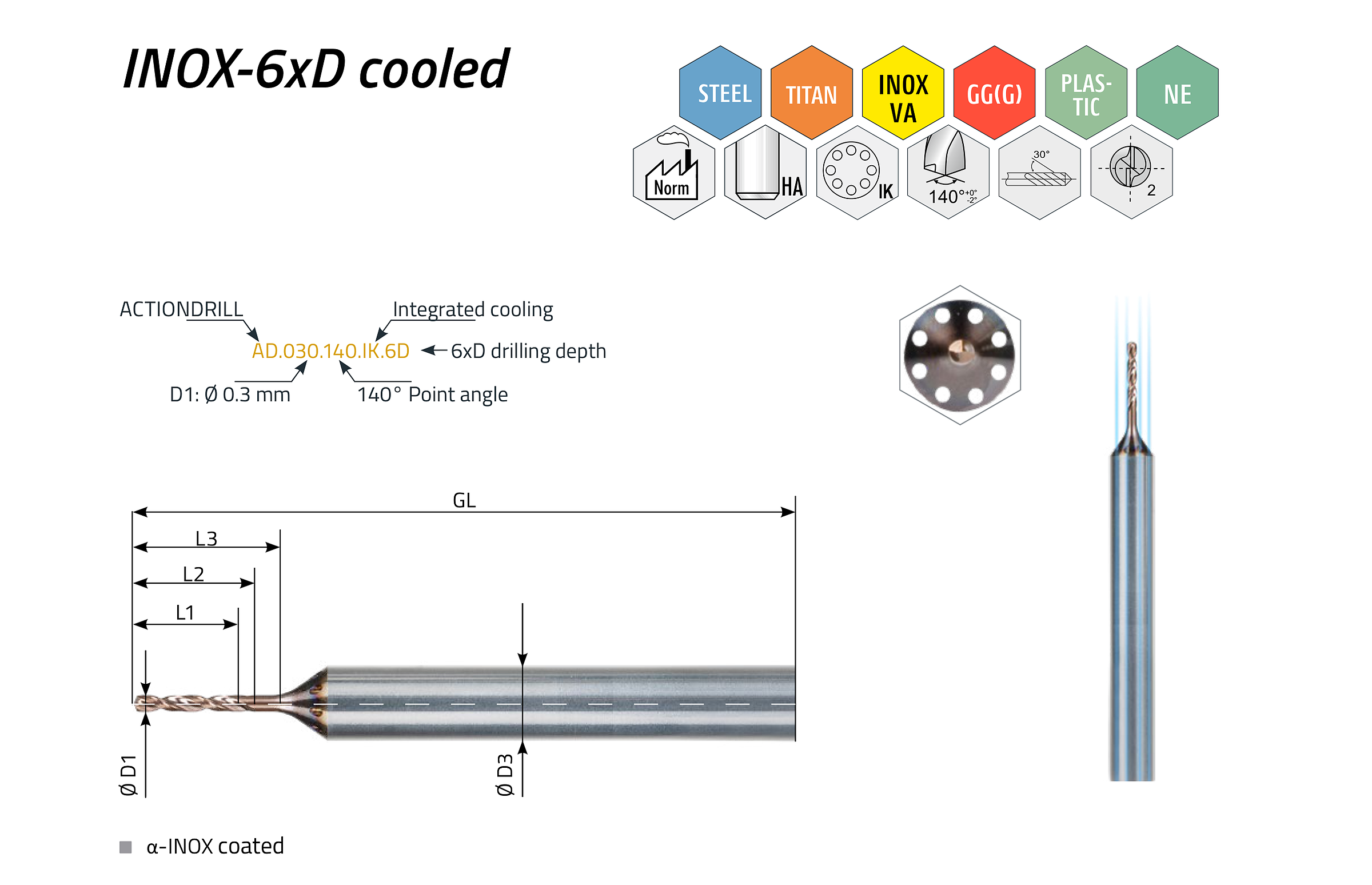

| Item number |
D1 k5
(mm)
|
D1
(inch)
|
D3 h5
(mm)
|
L1
(mm)
|
L2
(mm)
|
L3
(mm)
|
GL
(mm)
|
Z
(pc.)
|
Stock
(pc.)
|
Price
(net)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| AD.030.140.IK.6D …140.IK.6D | 0,300 | — | 4,00 | 1,80 | 2,10 | 2,70 | 40,00 | 2 | |||
| AD.035.140.IK.6D …140.IK.6D | 0,350 | — | 4,00 | 2,10 | 2,45 | 3,15 | 40,00 | 2 | |||
| AD.040.140.IK.6D …140.IK.6D | 0,400 | — | 4,00 | 2,40 | 2,80 | 3,60 | 40,00 | 2 | |||
| AD.045.140.IK.6D …140.IK.6D | 0,450 | — | 4,00 | 2,70 | 3,15 | 4,05 | 40,00 | 2 | |||
| AD.050.140.IK.6D …140.IK.6D | 0,500 | — | 4,00 | 3,00 | 3,50 | 4,50 | 40,00 | 2 | |||
| AD.055.140.IK.6D …140.IK.6D | 0,550 | — | 4,00 | 3,30 | 3,85 | 4,95 | 40,00 | 2 | |||
| AD.060.140.IK.6D …140.IK.6D | 0,600 | — | 4,00 | 3,60 | 4,20 | 5,40 | 40,00 | 2 | |||
| AD.065.140.IK.6D …140.IK.6D | 0,650 | — | 4,00 | 3,90 | 4,55 | 5,85 | 40,00 | 2 | |||
| AD.070.140.IK.6D …140.IK.6D | 0,700 | — | 4,00 | 4,20 | 4,90 | 6,30 | 40,00 | 2 | |||
| AD.075.140.IK.6D …140.IK.6D | 0,750 | — | 4,00 | 4,50 | 5,25 | 6,75 | 40,00 | 2 | |||
| AD.080.140.IK.6D …140.IK.6D | 0,800 | — | 4,00 | 4,80 | 5,60 | 7,20 | 40,00 | 2 | |||
| AD.085.140.IK.6D …140.IK.6D | 0,850 | — | 4,00 | 5,10 | 5,95 | 7,65 | 40,00 | 2 | |||
| AD.090.140.IK.6D …140.IK.6D | 0,900 | — | 4,00 | 5,40 | 6,30 | 8,10 | 40,00 | 2 | |||
| AD.095.140.IK.6D …140.IK.6D | 0,950 | — | 4,00 | 5,70 | 6,65 | 8,55 | 40,00 | 2 | |||
| AD.100.140.IK.6D …140.IK.6D | 1,000 | — | 4,00 | 6,00 | 7,00 | 9,00 | 50,00 | 2 | |||
| AD.105.140.IK.6D …140.IK.6D | 1,050 | — | 4,00 | 6,30 | 7,35 | 9,45 | 50,00 | 2 | |||
| AD.110.140.IK.6D …140.IK.6D | 1,100 | — | 4,00 | 6,60 | 7,70 | 9,90 | 50,00 | 2 | |||
| AD.115.140.IK.6D …140.IK.6D | 1,150 | — | 4,00 | 6,90 | 8,05 | 10,35 | 50,00 | 2 | |||
| AD.120.140.IK.6D …140.IK.6D | 1,200 | — | 4,00 | 7,20 | 8,40 | 10,80 | 50,00 | 2 | |||
| AD.125.140.IK.6D …140.IK.6D | 1,250 | — | 4,00 | 7,50 | 8,75 | 11,25 | 50,00 | 2 | |||
| AD.130.140.IK.6D …140.IK.6D | 1,300 | — | 4,00 | 7,80 | 9,10 | 11,70 | 50,00 | 2 | |||
| AD.135.140.IK.6D …140.IK.6D | 1,350 | — | 4,00 | 8,10 | 9,45 | 12,15 | 50,00 | 2 | |||
| AD.140.140.IK.6D …140.IK.6D | 1,400 | — | 4,00 | 8,40 | 9,80 | 12,60 | 50,00 | 2 | |||
| AD.145.140.IK.6D …140.IK.6D | 1,450 | — | 4,00 | 8,70 | 10,15 | 13,05 | 50,00 | 2 | |||
| AD.150.140.IK.6D …140.IK.6D | 1,500 | — | 4,00 | 9,00 | 10,50 | 13,50 | 50,00 | 2 | |||
| AD.155.140.IK.6D …140.IK.6D | 1,550 | — | 4,00 | 9,30 | 10,85 | 13,95 | 50,00 | 2 | |||
| AD.1587.140.IK.6D …140.IK.6D | 1,587 | 1/16" | 4,00 | 9,52 | 11,11 | 14,40 | 50,00 | 2 | |||
| AD.160.140.IK.6D …140.IK.6D | 1,600 | — | 4,00 | 9,60 | 11,20 | 14,40 | 50,00 | 2 | |||
| AD.165.140.IK.6D …140.IK.6D | 1,650 | — | 4,00 | 9,90 | 11,55 | 14,85 | 50,00 | 2 | |||
| AD.170.140.IK.6D …140.IK.6D | 1,700 | — | 4,00 | 10,20 | 11,90 | 15,30 | 50,00 | 2 | |||
| AD.175.140.IK.6D …140.IK.6D | 1,750 | — | 4,00 | 10,50 | 12,25 | 15,75 | 50,00 | 2 | |||
| AD.180.140.IK.6D …140.IK.6D | 1,800 | — | 4,00 | 10,80 | 12,60 | 16,20 | 50,00 | 2 | |||
| AD.185.140.IK.6D …140.IK.6D | 1,850 | — | 4,00 | 11,10 | 12,95 | 16,65 | 50,00 | 2 | |||
| AD.190.140.IK.6D …140.IK.6D | 1,900 | — | 4,00 | 11,40 | 13,30 | 17,10 | 50,00 | 2 | |||
| AD.195.140.IK.6D …140.IK.6D | 1,950 | — | 4,00 | 11,70 | 13,65 | 17,55 | 50,00 | 2 | |||
| AD.200.140.IK.6D …140.IK.6D | 2,000 | — | 4,00 | 12,00 | 14,00 | 18,00 | 50,00 | 2 | |||
| AD.203.140.IK.6D …140.IK.6D | 2,030 | — | 4,00 | 14,21 | 14,21 | 16,24 | 50,00 | 2 | |||
| AD.205.140.IK.6D …140.IK.6D | 2,050 | — | 4,00 | 14,35 | 14,35 | 16,40 | 50,00 | 2 | |||
| AD.210.140.IK.6D …140.IK.6D | 2,100 | — | 4,00 | 14,70 | 14,70 | 16,80 | 50,00 | 2 | |||
| AD.215.140.IK.6D …140.IK.6D | 2,150 | — | 4,00 | 15,05 | 15,05 | 17,20 | 50,00 | 2 | |||
| AD.225.140.IK.6D …140.IK.6D | 2,250 | — | 4,00 | 15,75 | 15,75 | 18,00 | 50,00 | 2 | |||
| AD.230.140.IK.6D …140.IK.6D | 2,300 | — | 4,00 | 16,10 | 16,10 | 18,40 | 50,00 | 2 | |||
| AD.233.140.IK.6D …140.IK.6D | 2,330 | — | 4,00 | 16,31 | 16,31 | 18,64 | 50,00 | 2 | |||
| AD.235.140.IK.6D …140.IK.6D | 2,350 | — | 4,00 | 16,45 | 16,45 | 18,80 | 50,00 | 2 | |||
| AD.2381.140.IK.6D …140.IK.6D | 2,381 | 3/32" | 4,00 | 14,30 | 16,70 | 21,43 | 60,00 | 2 | |||
| AD.240.140.IK.6D …140.IK.6D | 2,400 | — | 4,00 | 16,80 | 16,80 | 19,20 | 50,00 | 2 | |||
| AD.250.140.IK.6D …140.IK.6D | 2,500 | — | 4,00 | 17,50 | 17,50 | 20,00 | 60,00 | 2 | |||
| AD.255.140.IK.6D …140.IK.6D | 2,550 | — | 4,00 | 17,85 | 17,85 | 20,40 | 60,00 | 2 | |||
| AD.260.140.IK.6D …140.IK.6D | 2,600 | — | 4,00 | 18,20 | 18,20 | 20,80 | 60,00 | 2 | |||
| AD.265.140.IK.6D …140.IK.6D | 2,650 | — | 4,00 | 18,55 | 18,55 | 21,20 | 60,00 | 2 | |||
| AD.270.140.IK.6D …140.IK.6D | 2,700 | — | 4,00 | 18,90 | 18,90 | 21,60 | 60,00 | 2 | |||
| AD.275.140.IK.6D …140.IK.6D | 2,750 | — | 4,00 | 19,25 | 19,25 | 22,00 | 60,00 | 2 | |||
| AD.280.140.IK.6D …140.IK.6D | 2,800 | — | 4,00 | 19,60 | 19,60 | 22,40 | 60,00 | 2 | |||
| AD.285.140.IK.6D …140.IK.6D | 2,850 | — | 4,00 | 19,95 | 19,95 | 22,80 | 60,00 | 2 | |||
| AD.290.140.IK.6D …140.IK.6D | 2,900 | — | 4,00 | 20,30 | 20,30 | 23,20 | 60,00 | 2 |
