ACTIONDRILL INOX-170Pilot
Bohren
Marke: ACTIONDRILL
Der INOX-170Pilot ist ein Pilotbohrer mit 170° α-INOX-Hochleistungsspitzengeometrie, mit dem sich direkt auf schrägen Flächen mit bis zu 61° Neigung bohren lässt — ohne vorheriges Anspiegeln und etwa doppelt so schnell wie mit einem 180°-Flachbohrer. Die 2xD-Bohrtiefe ist mit einer 90°-Senkschneide zum Fasen kombiniert, der h6-Schaft sorgt zusammen mit der optimierten Nutzlänge für ein schwingungsarmes Werkzeug. Lieferbar im Durchmesserbereich Ø 0,3 bis Ø 7,2 mm.
Kurzbeschreibung
- Ø0,3 mm bis Ø7,2 mm
- Kombiwerkzeug Zentrieren + Bohren + 45° Fasen
- Die 170° Spitzengeometrie erlaubt das Bohren auf schrägen, runden oder gewölbten Flächen mit höchster Positionsgenauigkeit
- Chromfreie Beschichtungen
Artikel (105)

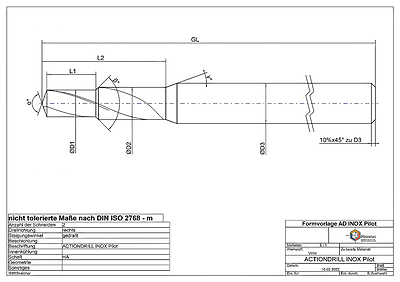

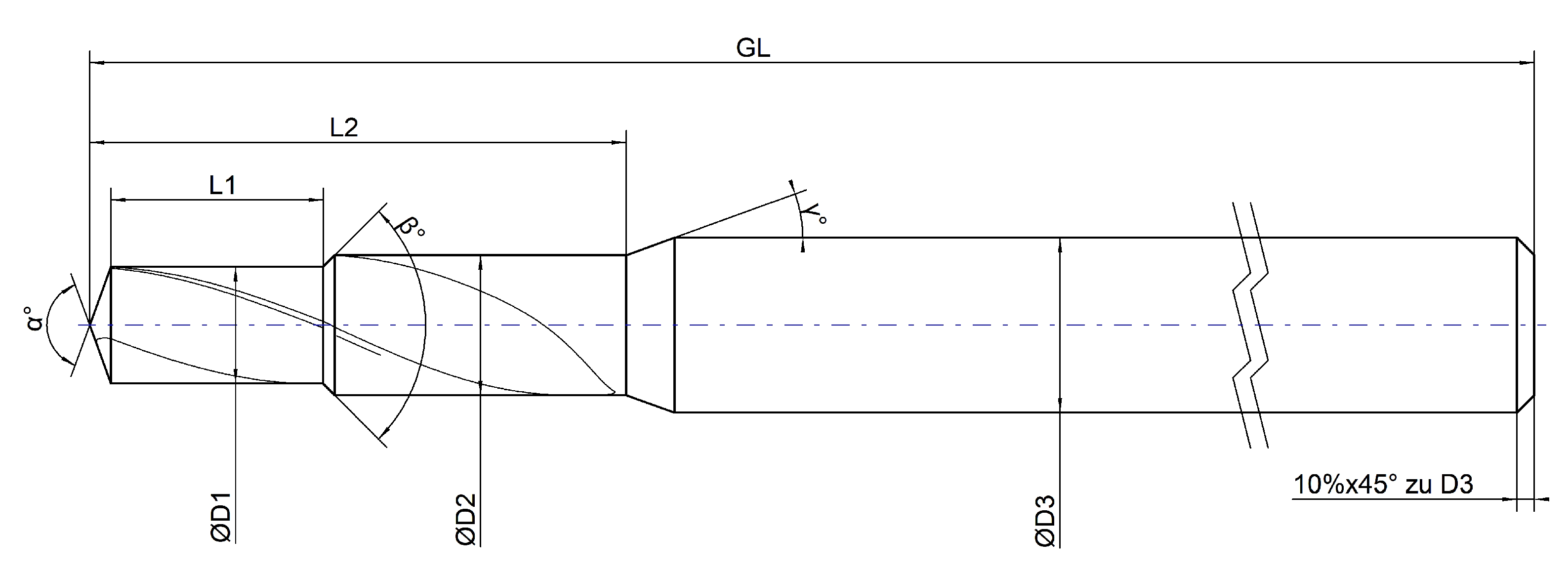

| Artikelnummer |
D1 k6
(mm)
|
D1
(inch)
|
D2
(mm)
|
D3 h6
(mm)
|
L1
(mm)
|
L2
(mm)
|
GL
(mm)
|
Z
(Stk.)
|
Bestand
(Stk.)
|
Preis
(netto)
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|
| AD.90.030.170 …030.170 | 0,300 | — | 0,70 | 4,00 | 0,60 | 2,30 | 55,00 | 2 | |||
| AD.90.035.170 …035.170 | 0,350 | — | 0,75 | 4,00 | 0,70 | 2,55 | 55,00 | 2 | |||
| AD.90.040.170 …040.170 | 0,400 | — | 0,80 | 4,00 | 0,80 | 2,80 | 55,00 | 2 | |||
| AD.90.045.170 …045.170 | 0,450 | — | 0,85 | 4,00 | 0,90 | 3,05 | 55,00 | 2 | |||
| AD.90.050.170 …050.170 | 0,500 | — | 0,90 | 4,00 | 1,00 | 3,30 | 55,00 | 2 | |||
| AD.90.055.170 …055.170 | 0,550 | — | 0,95 | 4,00 | 1,10 | 3,55 | 55,00 | 2 | |||
| AD.90.060.170 …060.170 | 0,600 | — | 1,00 | 4,00 | 1,20 | 3,80 | 55,00 | 2 | |||
| AD.90.065.170 …065.170 | 0,650 | — | 1,50 | 4,00 | 1,30 | 4,05 | 55,00 | 2 | |||
| AD.90.070.170 …070.170 | 0,700 | — | 1,10 | 4,00 | 1,40 | 4,30 | 55,00 | 2 | |||
| AD.90.075.170 …075.170 | 0,750 | — | 1,15 | 4,00 | 1,50 | 4,55 | 55,00 | 2 | |||
| AD.90.080.170 …080.170 | 0,800 | — | 1,20 | 4,00 | 1,60 | 4,80 | 55,00 | 2 | |||
| AD.90.085.170 …085.170 | 0,850 | — | 1,25 | 4,00 | 1,70 | 5,05 | 55,00 | 2 | |||
| AD.90.090.170 …090.170 | 0,900 | — | 1,30 | 4,00 | 1,80 | 5,30 | 55,00 | 2 | |||
| AD.90.095.170 …095.170 | 0,950 | — | 1,35 | 4,00 | 1,90 | 5,55 | 55,00 | 2 | |||
| AD.90.100.170 …100.170 | 1,000 | — | 1,60 | 4,00 | 2,00 | 6,70 | 55,00 | 2 | |||
| AD.90.110.170 …110.170 | 1,100 | — | 1,70 | 4,00 | 2,20 | 7,00 | 55,00 | 2 | |||
| AD.90.115.170 …115.170 | 1,150 | — | 1,75 | 4,00 | 2,30 | 7,10 | 55,00 | 2 | |||
| AD.90.120.170 …120.170 | 1,200 | — | 1,80 | 4,00 | 2,40 | 7,20 | 55,00 | 2 | |||
| AD.90.125.170 …125.170 | 1,250 | — | 1,85 | 4,00 | 2,50 | 8,20 | 55,00 | 2 | |||
| AD.90.130.170 …130.170 | 1,300 | — | 1,90 | 4,00 | 2,60 | 8,30 | 55,00 | 2 | |||
| AD.90.135.170 …135.170 | 1,350 | — | 1,95 | 4,00 | 2,70 | 8,40 | 55,00 | 2 | |||
| AD.90.140.170 …140.170 | 1,400 | — | 2,00 | 4,00 | 2,80 | 8,50 | 55,00 | 2 | |||
| AD.90.145.170 …145.170 | 1,450 | — | 2,50 | 4,00 | 2,90 | 8,60 | 55,00 | 2 | |||
| AD.90.105.170 …105.170 | 1,500 | — | 1,65 | 4,00 | 2,10 | 6,80 | 55,00 | 2 | |||
| AD.90.150.170 …150.170 | 1,500 | — | 2,10 | 4,00 | 3,00 | 9,60 | 55,00 | 2 | |||
| AD.90.155.170 …155.170 | 1,550 | — | 2,15 | 4,00 | 3,10 | 9,70 | 55,00 | 2 | |||
| AD.90.1587.170 …1587.170 | 1,587 | 1/16" | 2,20 | 4,00 | 3,17 | 9,80 | 55,00 | 2 | |||
| AD.90.160.170 …160.170 | 1,600 | — | 2,20 | 4,00 | 3,20 | 9,80 | 55,00 | 2 | |||
| AD.90.165.170 …165.170 | 1,650 | — | 2,25 | 4,00 | 3,30 | 9,90 | 55,00 | 2 | |||
| AD.90.170.170 …170.170 | 1,700 | — | 2,30 | 4,00 | 3,40 | 10,10 | 55,00 | 2 | |||
| AD.90.175.170 …175.170 | 1,750 | — | 2,35 | 4,00 | 3,50 | 10,20 | 55,00 | 2 | |||
| AD.90.180.170 …180.170 | 1,800 | — | 2,40 | 4,00 | 3,60 | 11,10 | 55,00 | 2 | |||
| AD.90.185.170 …185.170 | 1,850 | — | 2,45 | 4,00 | 3,70 | 11,30 | 55,00 | 2 | |||
| AD.90.190.170 …190.170 | 1,900 | — | 2,50 | 4,00 | 3,80 | 11,40 | 55,00 | 2 | |||
| AD.90.195.170 …195.170 | 1,950 | — | 2,55 | 4,00 | 3,90 | 11,50 | 55,00 | 2 | |||
| AD.90.200.170 …200.170 | 2,000 | — | 2,60 | 4,00 | 4,00 | 11,60 | 60,00 | 2 | |||
| AD.90.210.170 …210.170 | 2,100 | — | 2,90 | 4,00 | 4,20 | 11,80 | 60,00 | 2 | |||
| AD.90.215.170 …215.170 | 2,150 | — | 2,95 | 4,00 | 4,30 | 11,90 | 60,00 | 2 | |||
| AD.90.220.170 …220.170 | 2,200 | — | 3,00 | 4,00 | 4,40 | 13,80 | 60,00 | 2 | |||
| AD.90.225.170 …225.170 | 2,250 | — | 3,50 | 4,00 | 4,50 | 13,90 | 60,00 | 2 | |||
| AD.90.203.170 …203.170 | 2,300 | — | 2,85 | 4,00 | 4,60 | 11,70 | 60,00 | 2 | |||
| AD.90.230.170 …230.170 | 2,300 | — | 3,10 | 4,00 | 4,60 | 14,00 | 60,00 | 2 | |||
| AD.90.233.170 …233.170 | 2,330 | — | 3,15 | 4,00 | 4,66 | 14,10 | 60,00 | 2 | |||
| AD.90.235.170 …235.170 | 2,350 | — | 3,15 | 4,00 | 4,70 | 14,10 | 60,00 | 2 | |||
| AD.90.2381.170 …2381.170 | 2,381 | 3/32" | 3,20 | 4,00 | 4,76 | 14,20 | 60,00 | 2 | |||
| AD.90.240.170 …240.170 | 2,400 | — | 3,20 | 4,00 | 4,80 | 14,20 | 60,00 | 2 | |||
| AD.90.245.170 …245.170 | 2,450 | — | 3,25 | 4,00 | 4,90 | 14,40 | 60,00 | 2 | |||
| AD.90.205.170 …205.170 | 2,500 | — | 2,85 | 4,00 | 4,10 | 11,70 | 60,00 | 2 | |||
| AD.90.250.170 …250.170 | 2,500 | — | 3,30 | 4,00 | 5,00 | 14,50 | 60,00 | 2 | |||
| AD.90.255.170 …255.170 | 2,550 | — | 3,35 | 4,00 | 5,10 | 14,60 | 60,00 | 2 | |||
| AD.90.260.170 …260.170 | 2,600 | — | 3,40 | 4,00 | 5,20 | 14,70 | 60,00 | 2 | |||
| AD.90.265.170 …265.170 | 2,650 | — | 3,45 | 4,00 | 5,30 | 15,70 | 60,00 | 2 | |||
| AD.90.270.170 …270.170 | 2,700 | — | 3,50 | 4,00 | 5,40 | 15,80 | 60,00 | 2 | |||
| AD.90.275.170 …275.170 | 2,750 | — | 3,55 | 4,00 | 5,50 | 15,90 | 60,00 | 2 | |||
| AD.90.280.170 …280.170 | 2,800 | — | 3,60 | 4,00 | 5,60 | 16,00 | 60,00 | 2 | |||
| AD.90.285.170 …285.170 | 2,850 | — | 3,65 | 4,00 | 5,70 | 16,10 | 60,00 | 2 | |||
| AD.90.290.170 …290.170 | 2,900 | — | 3,70 | 4,00 | 5,80 | 16,20 | 60,00 | 2 | |||
| AD.90.295.170 …295.170 | 2,950 | — | 6,75 | 4,00 | 5,90 | 16,40 | 60,00 | 2 | |||
| AD.90.300.170 …300.170 | 3,000 | — | 3,80 | 4,00 | 6,00 | 17,20 | 65,00 | 2 | |||
| AD.90.310.170 …310.170 | 3,100 | — | 3,90 | 4,00 | 6,20 | 17,40 | 65,00 | 2 | |||
| AD.90.315.170 …315.170 | 3,150 | — | 4,00 | 4,00 | 6,30 | 17,70 | 65,00 | 2 | |||
| AD.90.3175.170 …3175.170 | 3,175 | 1/8" | 4,00 | 4,00 | 6,35 | 17,70 | 65,00 | 2 | |||
| AD.90.320.170 …320.170 | 3,200 | — | 4,00 | 4,00 | 6,40 | 17,70 | 65,00 | 2 | |||
| AD.90.325.170 …325.170 | 3,250 | — | 4,10 | 6,00 | 6,50 | 17,90 | 65,00 | 2 | |||
| AD.90.330.170 …330.170 | 3,300 | — | 4,10 | 6,00 | 6,60 | 17,90 | 65,00 | 2 | |||
| AD.90.340.170 …340.170 | 3,400 | — | 4,20 | 6,00 | 6,80 | 18,10 | 65,00 | 2 | |||
| AD.90.350.170 …350.170 | 3,500 | — | 4,30 | 6,00 | 7,00 | 18,30 | 65,00 | 2 | |||
| AD.90.360.170 …360.170 | 3,600 | — | 4,40 | 6,00 | 7,20 | 18,60 | 65,00 | 2 | |||
| AD.90.365.170 …365.170 | 3,650 | — | 4,50 | 6,00 | 7,30 | 18,80 | 65,00 | 2 | |||
| AD.90.370.170 …370.170 | 3,700 | — | 4,50 | 6,00 | 7,40 | 18,80 | 65,00 | 2 | |||
| AD.90.380.170 …380.170 | 3,800 | — | 4,60 | 6,00 | 7,60 | 19,00 | 65,00 | 2 | |||
| AD.90.390.170 …390.170 | 3,900 | — | 4,70 | 6,00 | 7,80 | 19,20 | 65,00 | 2 | |||
| AD.90.3968.170 …3968.170 | 3,968 | 5/32" | 4,80 | 6,00 | 7,94 | 19,50 | 65,00 | 2 | |||
| AD.90.400.170 …400.170 | 4,000 | — | 4,80 | 6,00 | 8,00 | 19,50 | 65,00 | 2 | |||
| AD.90.410.170 …410.170 | 4,100 | — | 5,10 | 6,00 | 8,20 | 21,30 | 65,00 | 2 | |||
| AD.90.420.170 …420.170 | 4,200 | — | 5,20 | 6,00 | 8,40 | 21,00 | 65,00 | 2 | |||
| AD.90.430.170 …430.170 | 4,300 | — | 5,30 | 6,00 | 8,60 | 21,60 | 65,00 | 2 | |||
| AD.90.440.170 …440.170 | 4,400 | — | 5,40 | 6,00 | 8,80 | 21,70 | 65,00 | 2 | |||
| AD.90.450.170 …450.170 | 4,500 | — | 5,50 | 6,00 | 9,00 | 27,00 | 70,00 | 2 | |||
| AD.90.460.170 …460.170 | 4,600 | — | 5,60 | 6,00 | 9,20 | 27,10 | 70,00 | 2 | |||
| AD.90.465.170 …465.170 | 4,650 | — | 5,70 | 6,00 | 9,40 | 27,30 | 70,00 | 2 | |||
| AD.90.470.170 …470.170 | 4,700 | — | 5,70 | 6,00 | 9,40 | 27,30 | 70,00 | 2 | |||
| AD.90.4762.170 …4762.170 | 4,762 | 3/16" | 5,80 | 6,00 | 9,52 | 27,40 | 70,00 | 2 | |||
| AD.90.480.170 …480.170 | 4,800 | — | 5,80 | 6,00 | 9,60 | 27,40 | 70,00 | 2 | |||
| AD.90.490.170 …490.170 | 4,900 | — | 5,90 | 6,00 | 9,80 | 27,60 | 70,00 | 2 | |||
| AD.90.500.170 …500.170 | 5,000 | — | 6,00 | 6,00 | 1,00 | 27,70 | 70,00 | 2 | |||
| AD.90.510.170 …510.170 | 5,100 | — | 6,10 | 8,00 | 1,20 | 27,90 | 70,00 | 2 | |||
| AD.90.520.170 …520.170 | 5,200 | — | 6,20 | 8,00 | 1,40 | 28,00 | 70,00 | 2 | |||
| AD.90.530.170 …530.170 | 5,300 | — | 6,30 | 8,00 | 1,60 | 28,10 | 70,00 | 2 | |||
| AD.90.540.170 …540.170 | 5,400 | — | 6,40 | 8,00 | 1,80 | 28,30 | 70,00 | 2 | |||
| AD.90.550.170 …550.170 | 5,500 | — | 6,50 | 8,00 | 11,00 | 28,40 | 70,00 | 2 | |||
| AD.90.5556.170 …5556.170 | 5,556 | 7/32" | 6,60 | 8,00 | 11,12 | 28,60 | 70,00 | 2 | |||
| AD.90.560.170 …560.170 | 5,600 | — | 6,60 | 8,00 | 11,20 | 28,60 | 70,00 | 2 | |||
| AD.90.570.170 …570.170 | 5,700 | — | 6,70 | 8,00 | 11,40 | 28,70 | 70,00 | 2 | |||
| AD.90.580.170 …580.170 | 5,800 | — | 6,80 | 8,00 | 11,60 | 28,90 | 70,00 | 2 | |||
| AD.90.590.170 …590.170 | 5,900 | — | 6,90 | 8,00 | 11,80 | 29,00 | 70,00 | 2 | |||
| AD.90.600.170 …600.170 | 6,000 | — | 7,00 | 8,00 | 12,00 | 29,10 | 70,00 | 2 | |||
| AD.90.620.170 …620.170 | 6,200 | — | 7,40 | 8,00 | 12,40 | 30,00 | 70,00 | 2 | |||
| AD.90.6350.170 …6350.170 | 6,350 | 1/4" | 7,40 | 8,00 | 12,70 | 30,00 | 70,00 | 2 | |||
| AD.90.660.170 …660.170 | 6,600 | — | 8,00 | 8,00 | 13,20 | — | 70,00 | 2 | |||
| AD.90.670.170 …670.170 | 6,700 | — | 8,00 | 8,00 | 13,40 | — | 70,00 | 2 | |||
| AD.90.680.170 …680.170 | 6,800 | — | 8,00 | 8,00 | 13,60 | — | 70,00 | 2 | |||
| AD.90.690.170 …690.170 | 6,900 | — | 8,00 | 8,00 | 13,80 | — | 70,00 | 2 | |||
| AD.90.700.170 …700.170 | 7,000 | — | 8,00 | 8,00 | 14,00 | — | 70,00 | 2 | |||
| AD.90.720.170 …720.170 | 7,200 | — | 8,00 | 8,00 | 14,40 | — | 70,00 | 2 |
